NOTES:

Part #	Number on image	Usage Notes
301-212-303	3	All gearbox mounting hardware changed from M16 to M12 with the gearbox change. Supply serial number when ordering.
417-480-331	23	Rotor mounting bolts are now M16, replacing M12 bolts and sleeves. M12 bolts and rotor half rings are still available on request.
301-216-453	24	Rotor mounting bolts are now M16, replacing M12 bolts and sleeves. M12 bolts and rotor half rings are still available on request.
404-040-512	35	For serial numbers WLD276 onwards, use [404-040-512] Vee Belt. For serial numbers WLD275 and earlier, use [404-040-561] Vee Belt.
402-060-770	40	For serial numbers WLD276 onwards, use [402-060-770] Bush - G/Box Pulley on 3 belt machines. For serial numbers WLD275 and earlier, use [402-060-710] Bush - G/Box Pulley. The early bush [402-060-710] is still used on all 4 belt machines.
405-200-720	44	For serial numbers WLD276 onwards, use [405-200-720] Gearbox - TV 311 H. For serial numbers WLD275 and earlier, use [405-201-781] Gearbox - TL 278 E (145 and 175 sizes) or [405-201-901] Gearbox - TL 278 E (205 to 295 sizes). All gearbox mounting hardware changed from M16 to M12 with the gearbox change - supply serial number when ordering.
405-201-780	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
405-201-920	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
404-480-473	68	Optional part.
410-480-443	36	For left hand offset machines only.
405-200-721	44	For left hand offset machines only.

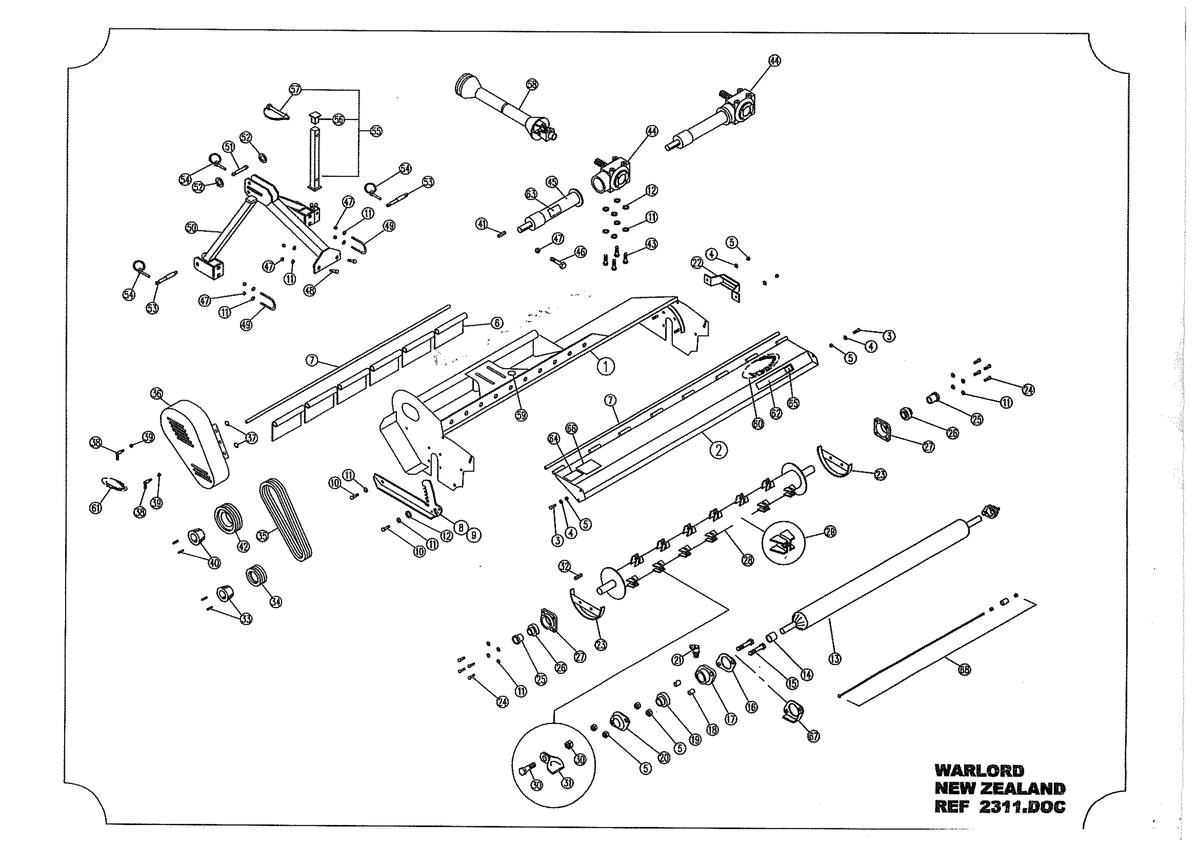

WL - Warlord S1 205 - Complete Assembly

Warlord S1 205

Grouped product items
No.	Product Name	Price
3	Bolt i See notes section for usage notes on this part 301-212-303 More Info >	€1.46
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
6	Front Flap Weldment 417-480-320 More Info >	€26.83
8	Trailing Arm Weldment - SR LH WL 412-480-351 More Info >	€132.94
9	Trailing Arm Weldment - SR RH WL 412-480-352 More Info >	€132.94
10	Bolt 301-216-403 More Info >	€3.04
11	Washer - Spring 308-160-043 More Info >	€0.49
12	Washer - Heavy Flat 308-160-063 More Info >	€0.67
13	Roller Weldment 205 414-480-470 More Info >	€772.20
14	Sleeve 402-464-062 More Info >	€6.74
15	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	€2.00
16	Shield 410-464-052 More Info >	€12.63
18	Sleeve 402-480-740 More Info >	€4.86
20	Cap 410-464-072 More Info >	€21.98
21	Grease Nipple 208-442-620 More Info >	€2.39
22	Bearing Guard 410-460-302 More Info >	€86.51
23	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) i See notes section for usage notes on this part 417-480-331 More Info >	€41.89
24	Bolt i See notes section for usage notes on this part 301-216-453 More Info >	€3.89
25	Sleeve - Taper 401-021-230 More Info >	€23.99
26	Bearing 401-021-210 More Info >	€42.73
27	Bearing Housing 401-021-220 More Info >	€38.13
29	Flail Lug 411-480-610 More Info >	€13.12
30	Bolt - c/w Nyloc Nut 306-216-805 More Info >	€6.08
31	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	€23.31
32	Key - 14x9mm (Trimax Specification) 205-425-920 More Info >	€9.66
33	Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730 More Info >	€35.82
35	Vee Belt i See notes section for usage notes on this part 404-040-512 More Info >	€35.09
36	Belt Guard Weldment - RH Offset 410-480-440 More Info >	€352.51
38	Drop Latch - Anti-loose 423-080-400 More Info >	€17.24
39	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
40	Bush i See notes section for usage notes on this part 402-060-770 More Info >	Price on Request
41	Key - 12x8mm (Trimax Specification) 405-425-910 More Info >	€8.50
44	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	€740.95
45	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	€548.94
45	Extension Assembly i See notes section for usage notes on this part 405-201-920 More Info >	Price on Request
47	Nut - Plain 307-216-013 More Info >	€1.16
48	Bolt 301-216-353 More Info >	€2.98
49	U-Bolt 215-446-320 More Info >	€14.09
51	Pin - Linkage - Top Link 419-301-150 More Info >	€8.74
52	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
53	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
54	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
55	Front Stand Weldment 413-480-660 More Info >	€77.28
56	Cap - Tube Insert Square 209-480-661 More Info >	€5.36
57	Pin 406-346-410 More Info >	€7.23
58	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	€450.56
59	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	€29.76
60	Decal 424-100-350 More Info >	Price on Request
68	Roller Scraper i See notes section for usage notes on this part 404-480-473 More Info >	€48.99
36	Belt Guard Weldment - wDecal/AntiRatl Bungs i See notes section for usage notes on this part 410-480-443 More Info >	Price on Request
44	Gearbox - Counter Rotation - 540rpm i See notes section for usage notes on this part 405-200-721 More Info >	€824.76
