NOTES:

Part #	Number on image	Usage Notes
405-200-661	6	For offset mowers.
405-200-665	6	For centre mounted mowers.
402-464-061	56	Replaced with Loctite 635 (green), refer to ECN 1665 (July 2011). Applies from serial numbers 705-135-001-0035, 705-155-001-0056, 705-155-002-0047, 705-185-001-0038 and 705-185-002-0035.
406-340-260	61	Select 20hp or 40hp driveshaft depending on tractor.
406-340-560	61	Select 20hp or 40hp driveshaft depending on tractor.

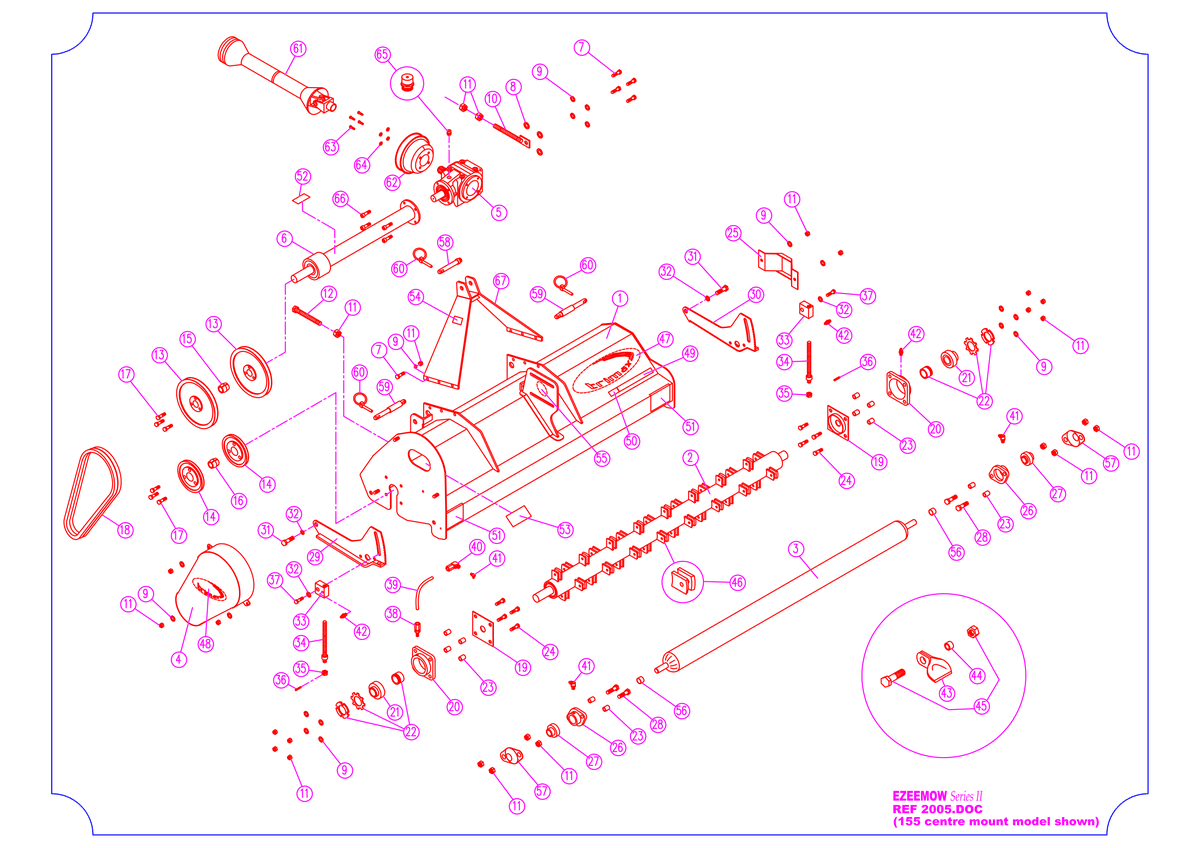

705 - Ezeemow S2 185 - Complete Assembly

Ezeemow S2 185

Grouped product items
No.	Product Name	Price
3	Roller Weldment 185 414-140-010 More Info >	€764.01
4	Guard 410-152-740 More Info >	€181.21
5	Gearbox 405-200-650 More Info >	€517.61
6	Extension Assembly i See notes section for usage notes on this part 405-200-661 More Info >	Price on Request
6	Extension Assembly i See notes section for usage notes on this part 405-200-665 More Info >	Price on Request
7	Bolt 301-212-353 More Info >	€1.59
8	Washer - Heavy Flat 308-120-063 More Info >	€0.37
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
10	Tension Adjuster 403-154-230 More Info >	€22.70
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
13	Pulley 403-360-650 More Info >	€66.05
14	Pulley 403-360-300 More Info >	€40.47
15	Bush 402-060-150 More Info >	€21.43
16	Bush 402-060-210 More Info >	€22.02
17	Bolt 301-208-403 More Info >	€1.16
18	Vee Belt 404-040-471 More Info >	€27.02
19	Rotor Shield 410-152-290 More Info >	€44.69
20	Housing 401-021-000 More Info >	€30.07
21	Bearing 401-021-050 More Info >	€35.67
22	Tapered Locking Assembly 401-021-150 More Info >	€25.56
23	Sleeve 402-480-740 More Info >	€4.86
24	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	€1.77
25	Protector 410-152-480 More Info >	€50.57
26	Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300 More Info >	€40.38
28	Bolt 301-212-453 More Info >	€1.89
29	Trailing Arm Weldment LH 412-152-461 More Info >	€115.46
30	Trailing Arm Weldment RH 412-152-462 More Info >	€115.46
31	Bolt 301-216-303 More Info >	€2.74
32	Washer - Spring 308-160-043 More Info >	€0.49
33	Height Adjuster Block 412-330-273 More Info >	€32.06
34	Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 412-152-420 More Info >	€32.06
36	Roll Pin 202-447-980 More Info >	€2.14
37	Bolt 301-216-553 More Info >	€3.77
38	Fitting - Grease Line 450-152-892 More Info >	€16.63
39	Tube - Grease Line No. 11 ��3/16"OD 903-007-031 More Info >	€4.25
40	Fitting - Grease Line 450-152-822 More Info >	€26.17
41	Grease Nipple 208-442-620 More Info >	€2.39
42	Grease Nipple - 1/4" Short 208-442-600 More Info >	€2.25
43	Flail 411-160-100 More Info >	€13.42
44	Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750 More Info >	€2.71
45	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	€2.19
46	Flail Lug 411-240-000 More Info >	€3.83
55	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	€29.76
56	Sleeve i See notes section for usage notes on this part 402-464-061 More Info >	€6.74
57	Cap - Bearing Protector Cap - FL205 Housing 410-464-071 More Info >	€17.31
58	Pin - Linkage - Top Link 419-301-150 More Info >	€8.74
59	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
60	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
61	Driveshaft i See notes section for usage notes on this part 406-340-260 More Info >	€273.54
61	PTO Shaft i See notes section for usage notes on this part 406-340-560 More Info >	€316.61
62	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
64	Washer - Flat 308-080-013 More Info >	€0.37
65	Gearbox - Breather 405-207-207 More Info >	€20.47
