NOTES:

Part #	Number on image	Usage Notes
414-480-470	31	Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780	53	The Warlord 205 Series 2 is available in 4 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780, 950 and 1060 extensions. Refer to the offset chart for specific measurements.

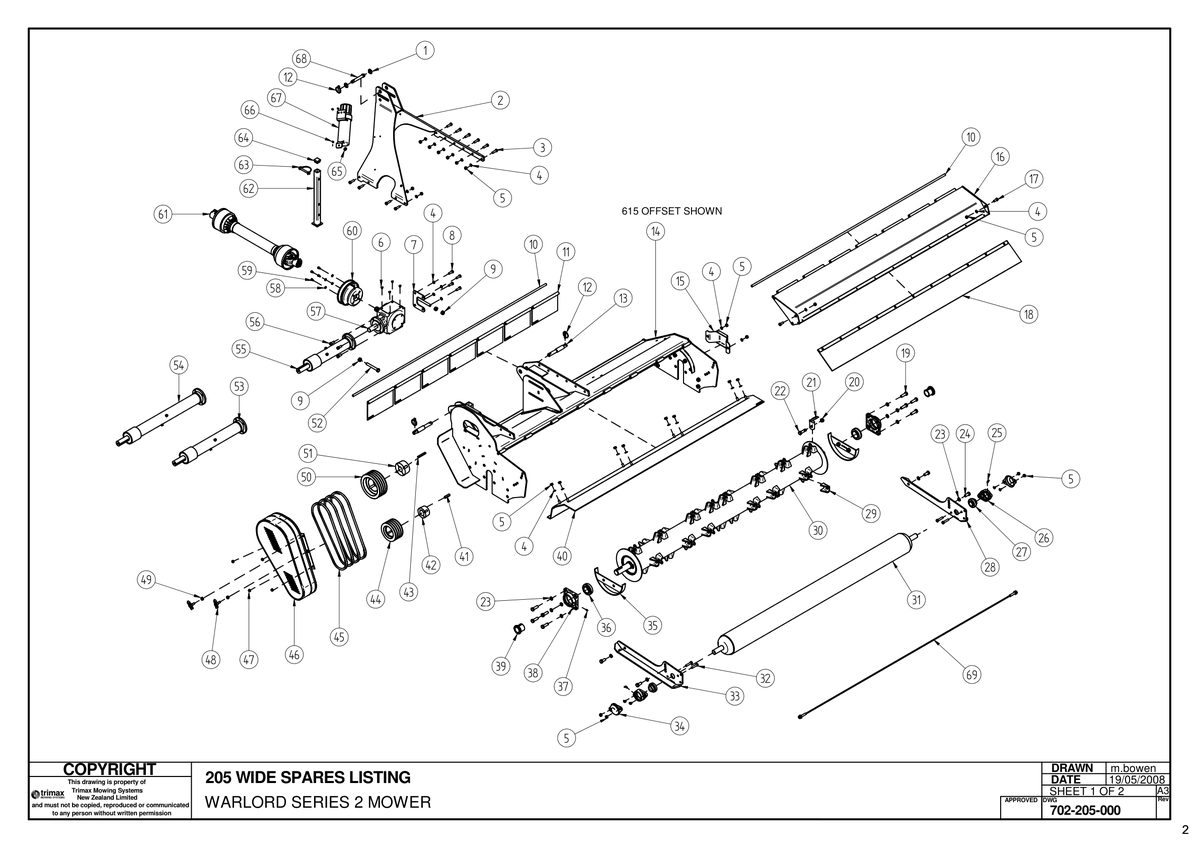

702 Warlord S2 205 - 205 Wide Spares Listing

Warlord S2 205

Grouped product items
No.	Product Name	Price
1	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
2	Headstock 417-000-459 More Info >	Price on Request
3	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
6	Blanking Plug - M12 209-900-012 More Info >	€1.04
7	Adjuster 417-000-428 More Info >	€29.26
8	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
9	Nut - Plain 307-216-013 More Info >	€1.16
11	Front Flap Weldment 417-480-320 More Info >	€26.83
12	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
13	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
15	Bearing Guard 410-460-302 More Info >	€86.51
16	Rear Flap Weldment 205 417-480-271 More Info >	Price on Request
17	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
19	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	€3.22
20	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
21	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	€23.31
23	Washer - Spring 308-160-043 More Info >	€0.49
24	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	€2.98
25	Grease Nipple - Trimax Specification 208-442-620 More Info >	€2.39
28	Trailing Arm Weldment - RH 412-000-128 More Info >	€143.81
29	Flail Lug 411-480-610 More Info >	€13.12
31	Roller Weldment 205 i See notes section for usage notes on this part 414-480-470 More Info >	€772.20
32	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	€2.61
33	Trailing Arm Weldment - LH 412-000-129 More Info >	€143.81
34	Cap 410-464-072 More Info >	€21.98
35	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	€41.89
36	Bearing 401-021-210 More Info >	€42.73
37	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
38	Bearing Housing 401-021-220 More Info >	€38.13
39	Sleeve - Taper 401-021-230 More Info >	€23.99
40	Liner Weldment 205 417-000-433 More Info >	€200.26
41	Key - Trimax Specification 205-425-920 More Info >	€9.66
42	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	€35.82
43	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	€8.50
44	Pulley - Taper Lock 403-361-180 More Info >	€139.62
45	Vee Belt - Trimax Specification 404-040-512 More Info >	€35.09
46	Belt Guard Weldment - RH Offset 410-480-440 More Info >	€352.51
48	Drop Latch - Anti-loose 423-080-400 More Info >	€17.24
49	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
50	Pulley - Taper Lock 403-361-270 More Info >	€151.76
51	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	€45.53
52	Set Screw 313-616-123 More Info >	Price on Request
53	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	€548.94
56	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	€2.15
57	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
58	Washer - Flat 308-080-013 More Info >	€0.37
59	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
60	Cone 410-440-400 More Info >	Price on Request
61	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	€450.56
62	Front Stand Weldment 413-480-660 More Info >	€77.28
63	Pin 406-346-410 More Info >	€7.23
64	Cap - Tube Insert Square 209-480-661 More Info >	€5.36
65	Washer - Fender 108-031-413 More Info >	€0.37
66	Blind Rivet 213-000-004 More Info >	€0.54
67	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	€36.74
68	Pin - Linkage - Top Link 419-301-150 More Info >	€8.74
69	Roller Scraper 404-480-473 More Info >	€48.99
