NOTES:

Part #	Number on image	Usage Notes
414-480-460	26	Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780	52	The Warlord 175 Series 2 is available in 2 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780 extensions. Refer to the offset chart for specific measurements.

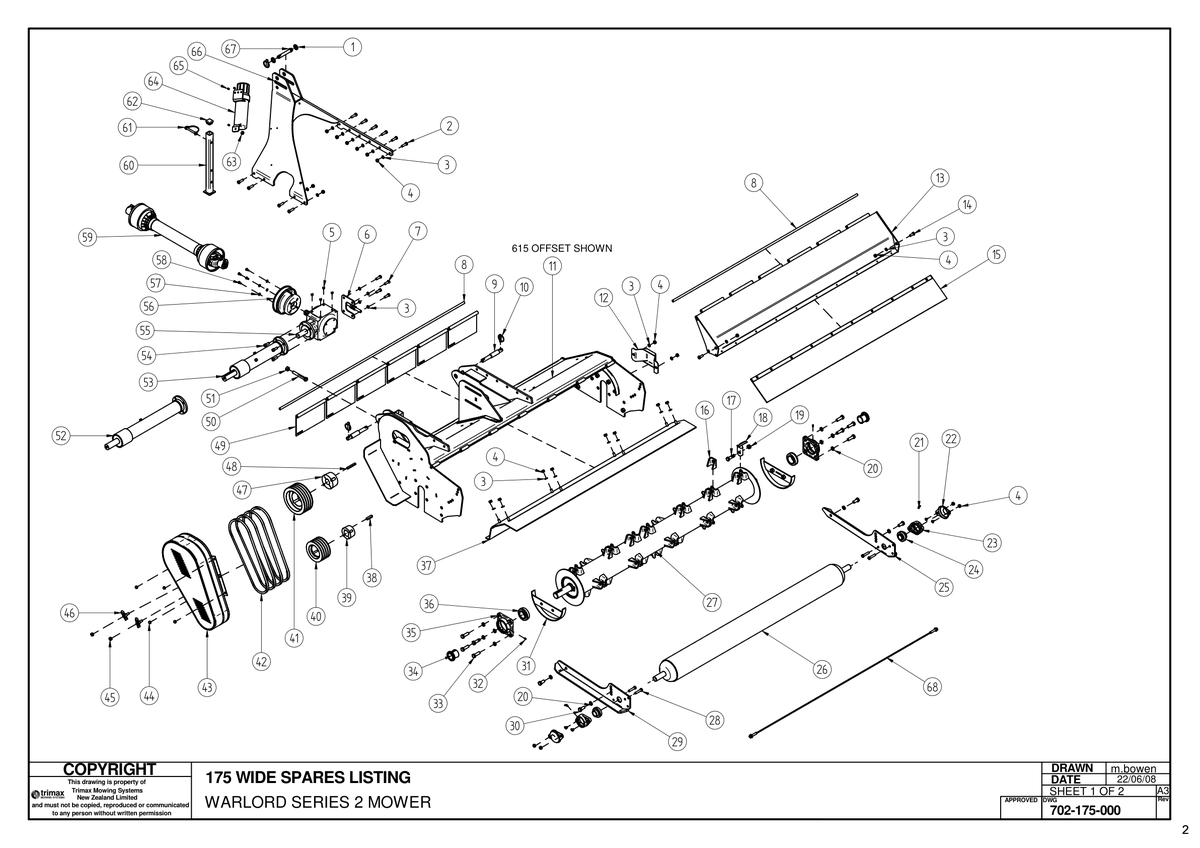

702 Warlord S2 175 - 175 Wide Spares Listing

Warlord S2 175

Grouped product items
No.	Product Name	Price
1	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
2	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	€1.77
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
5	Blanking Plug - M12 209-900-012 More Info >	€1.04
6	Adjuster 417-000-428 More Info >	€29.26
7	Bolt 301-212-353 More Info >	€1.59
9	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
10	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
12	Bearing Guard 410-460-302 More Info >	€86.51
13	Rear Flap Weldment HD 175 417-480-261 More Info >	Price on Request
14	Bolt 301-212-303 More Info >	€1.46
16	Flail Lug 411-480-610 More Info >	€13.12
18	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	€23.31
19	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
20	Washer - Spring 308-160-043 More Info >	€0.49
21	Grease Nipple 208-442-620 More Info >	€2.39
22	Cap 410-464-072 More Info >	€21.98
25	Trailing Arm Weldment - RH 412-000-128 More Info >	€143.81
26	Roller Weldment 175 i See notes section for usage notes on this part 414-480-460 More Info >	€568.97
27	Rotor 415-480-560 More Info >	€1,404.90
28	Bolt 301-212-553 More Info >	€2.61
29	Trailing Arm Weldment - LH 412-000-129 More Info >	€143.81
30	Bolt 301-216-353 More Info >	€2.98
31	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	€41.89
32	Grease Nipple - 1/4" Short 208-442-600 More Info >	€2.25
33	Bolt 301-216-503 More Info >	€3.22
34	Sleeve - Taper 401-021-230 More Info >	€23.99
35	Bearing Housing 401-021-220 More Info >	€38.13
36	Bearing 401-021-210 More Info >	€42.73
37	Body 417-000-493 More Info >	€200.26
38	Key - 14x9mm (Trimax Specification) 205-425-920 More Info >	€9.66
39	Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730 More Info >	€35.82
40	Pulley - Taper Lock 403-361-180 More Info >	€139.62
41	Pulley - Taper Lock 403-361-270 More Info >	€151.76
42	Vee Belt 404-040-512 More Info >	€35.09
43	Belt Guard Weldment - RH Offset 410-480-440 More Info >	€352.51
45	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
46	Drop Latch - Anti-loose 423-080-400 More Info >	€17.24
47	Bush - Taper Lock - 40mm (Trimax Specification) 402-060-710 More Info >	€45.53
48	Key - 12x8mm (Trimax Specification) 405-425-910 More Info >	€8.50
49	Front Flap Weldment 417-480-320 More Info >	€26.83
50	Set Screw 313-616-123 More Info >	Price on Request
51	Nut - Plain 307-216-013 More Info >	€1.16
52	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	€548.94
54	Cap Screw 303-212-305 More Info >	€2.15
55	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
56	Cone 410-440-400 More Info >	€18.42
57	Washer - Flat 308-080-013 More Info >	€0.37
58	Bolt 301-208-163 More Info >	€0.61
59	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	€450.56
60	Front Stand Weldment 413-480-660 More Info >	€77.28
61	Pin 406-346-410 More Info >	€7.23
62	Cap - Tube Insert Square 209-480-661 More Info >	€5.36
63	Washer - Fender 108-031-413 More Info >	€0.37
64	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	€36.74
65	Blind Rivet 213-000-004 More Info >	€0.54
66	Headstock 417-000-459 More Info >	Price on Request
67	Pin - Linkage - Top Link 419-301-150 More Info >	€8.74
68	Roller Weldment - HD 175 414-480-463 More Info >	€875.34
