NOTES:

Part #	Number on image	Usage Notes
401-000-025	11	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
412-000-286	15	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
412-000-287	16	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
414-000-076	17	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
414-000-094	18	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
404-320-124	22	Roller Scraper available as an option

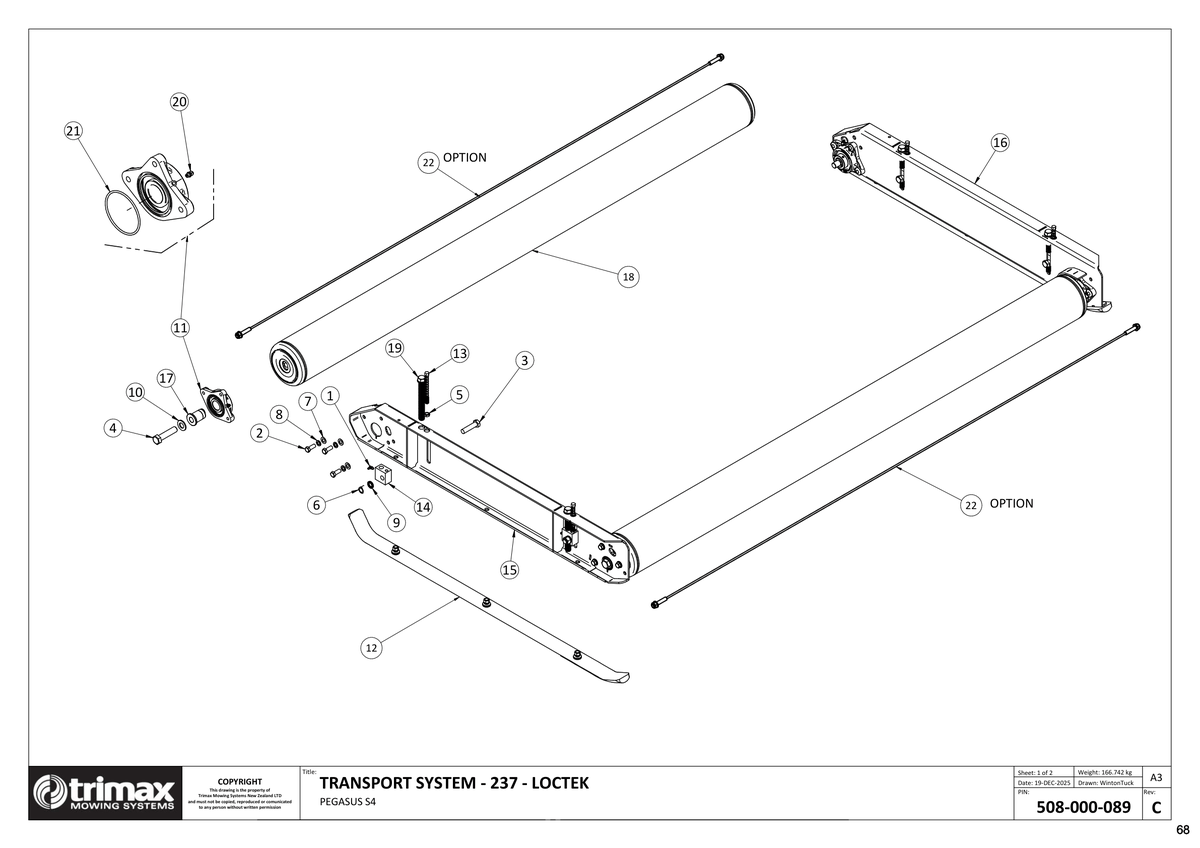

TRANSPORT SYSTEM - 237 - LOCTEK

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	€8.56
5	Nut - Half 307-212-023 More Info >	€1.16
6	Nut - Plain 307-216-013 More Info >	€1.16
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
11	Roller Bearing Assembly - TriBolt - Trimax Specification i See notes section for usage notes on this part 401-000-025 More Info >	€196.00
12	Skid Assembly - Anti-Bounce 412-000-148 More Info >	€124.39
13	Height Indicator - Metric 412-000-256 More Info >	€32.67
14	Height Adjuster Block 412-000-279 More Info >	€48.45
15	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-286 More Info >	€382.06
16	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-287 More Info >	€382.06
17	Roller Stub Sleeve - LocTek - i See notes section for usage notes on this part 414-000-076 More Info >	€32.78
18	Roller Weldment - Loctek 237 i See notes section for usage notes on this part 414-000-094 More Info >	€660.45
19	Height Adjuster Rod - RapidSet 450-000-126 More Info >	€41.66
20	Grease Nipple - Trimax Specification 208-442-620 More Info >	€2.39
21	O Ring 450-000-055 More Info >	€3.04
22	Scraper - Roller 237 i See notes section for usage notes on this part 404-320-124 More Info >	€54.54
