NOTES:

Part #	Number on image	Usage Notes
403-361-270	6	For serial numbers PCD353 and earlier, use [403-360-800] Gearbox Pully x4.
402-060-680	7	For serial numbers PCD353 and earlier, use [402-060-250] Gearbox Pully Bush x2.
405-425-940	9	Only use on serial numbers PCD354 and later.

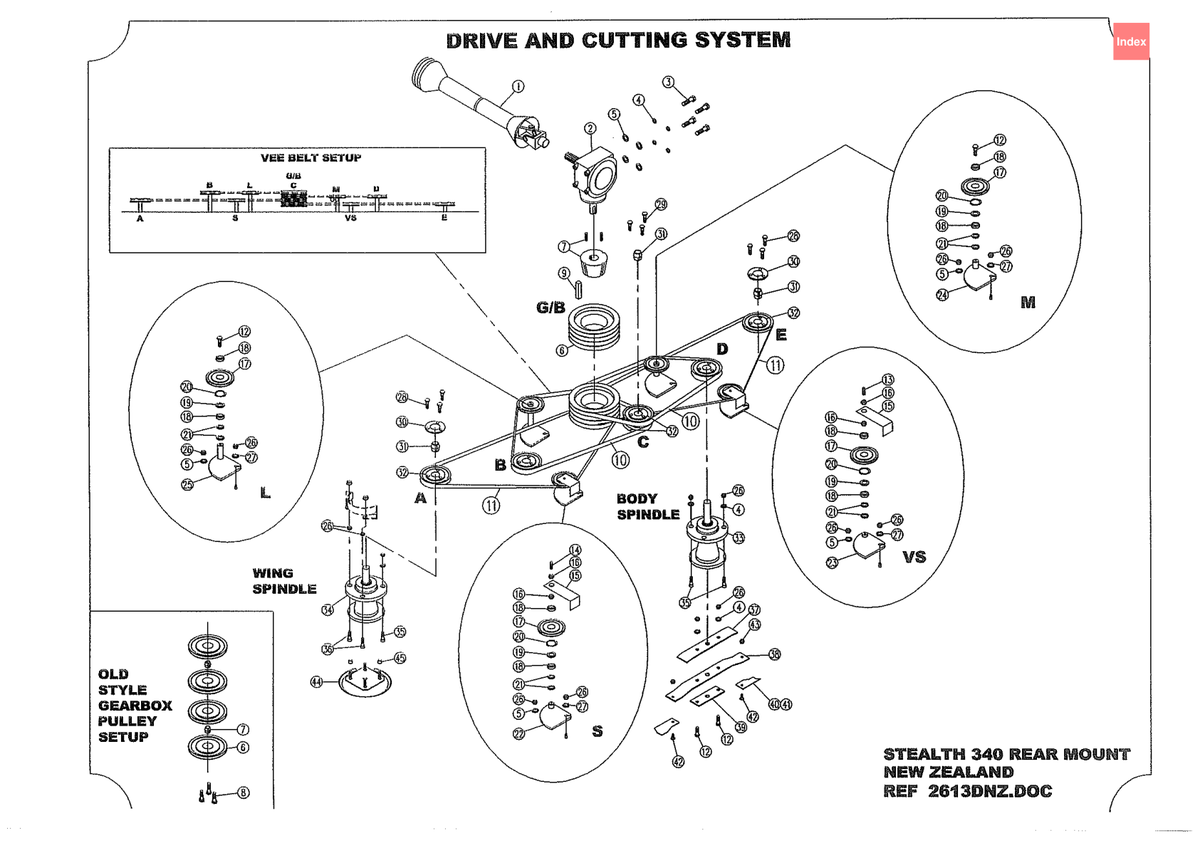

Stealth S1 - Drive & Cutting System

Stealth S1 340

Grouped product items
No.	Product Name	Price
1	Driveshaft 406-340-840 More Info >	€450.56
2	Gearbox 405-200-720 More Info >	€740.95
3	Bolt 301-212-303 More Info >	€1.46
4	Washer - Spring 308-120-043 More Info >	€0.37
5	Washer - Heavy Flat 308-120-063 More Info >	€0.37
6	Pulley i See notes section for usage notes on this part 403-361-270 More Info >	€151.76
7	Bush - Taper Lock i See notes section for usage notes on this part 402-060-680 More Info >	€50.33
9	Key i See notes section for usage notes on this part 405-425-940 More Info >	€9.13
10	Vee Belt 404-040-830 More Info >	€26.35
11	Vee Belt 404-041-300 More Info >	€43.59
12	Bolt 301-212-453 More Info >	€1.89
14	Stud 403-330-443 More Info >	€1.65
15	Belt Retainer Guide 417-330-450 More Info >	€19.05
16	Nut - Half 307-212-023 More Info >	€1.16
17	Pulley - Idler 403-360-110 More Info >	€23.68
18	Bearing 401-021-900 More Info >	€11.85
19	Washer - Flat 108-071-413 More Info >	€1.40
21	Washer - Flat 308-120-013 More Info >	€0.37
22	Idler Tower Incl Base 403-330-423 More Info >	€64.28
23	Idler Tower Incl Base 403-330-424 More Info >	€61.90
24	Idler Tower Incl Base 403-330-432 More Info >	€45.96
25	Idler Tower Incl Base 403-330-442 More Info >	€56.95
26	Nut - Plain 307-212-013 More Info >	€0.92
28	Bolt 301-208-203 More Info >	€0.67
29	Bolt 301-208-403 More Info >	€1.16
30	Retainer Ring 402-060-450 More Info >	€7.66
31	Bush 402-060-320 More Info >	€23.21
32	Pulley 403-360-300 More Info >	€40.47
33	Spindle Assembly - Type 5b Ext 50mm 504-328-013 More Info >	€510.22
35	Cap Screw 303-212-505 More Info >	€2.31
36	Bolt 301-212-553 More Info >	€2.61
37	Backing Plate - Blade Beam 411-322-710 More Info >	€18.53
38	Beam - Std - Blade Mounting 411-322-760 More Info >	€32.24
39	Clamp Plate - Blade Beam 411-322-800 More Info >	€6.08
40	Blade - Spindle - Flat 411-160-700 More Info >	€8.53
41	Blade - Spindle - Uplift 411-160-702 More Info >	€8.53
42	Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting 411-322-100 More Info >	€3.77
43	Nut - Nyloc 307-210-053 More Info >	€0.61
44	Disc Anti-scalp Rotating - E Type 4 Stud 503-325-475 More Info >	€128.40
45	Bush 402-060-970 More Info >	€0.37
