NOTES:

Part #	Number on image	Usage Notes
402-061-050	7	Early type Needle roller bearings and Nylon bushes are now directly replaced with a Greasable Hardened Steel Bush.
412-320-112	11	For serial numbers PCD352 and earlier, use [412-320-110] Wing Skid 160mm.
414-320-015	18	For serial numbers PCD192 to PCD352, use [414-320-009] 5" Front Roller. For serial numbers PCD191 and earlier, use [414-320-007] 5" Front Roller.
414-320-014	19	For serial numbers PCD352 and earlier, use [414-320-008] 5" Rear Roller.
410-330-373	38	For serial numbers PCD300 to STD036, use [410-330-373] Left Body Cover. For serial numbers PCD192 to PCD299, use [410-330-373] Left Body Cover. For serial numbers PCD191 and earlier, use [410-330-363] Left Body Cover.
410-330-374	39	For serial numbers PCD300 to STD036, use [410-330-374] Right Body Cover. For serial numbers PCD192 to PCD299, use [410-330-374] Right Body Cover. For serial numbers PCD191 and earlier, use [410-330-364] Right Body Cover.
410-330-383	40	For serial numbers PCD300 to STD036, use [410-330-383] Left Wing Cover. For serial numbers PCD192 to PCD299, use [410-330-377] Left Wing Cover. For serial numbers PCD191 and earlier, use [410-330-367] Left Wing Cover.
410-330-375	42	For serial numbers PCD300 and earlier, use [410-330-365] Filler Rubber.
423-080-220	45	For serial numbers STD041 and earlier, use [423-080-200] Cover Latch.

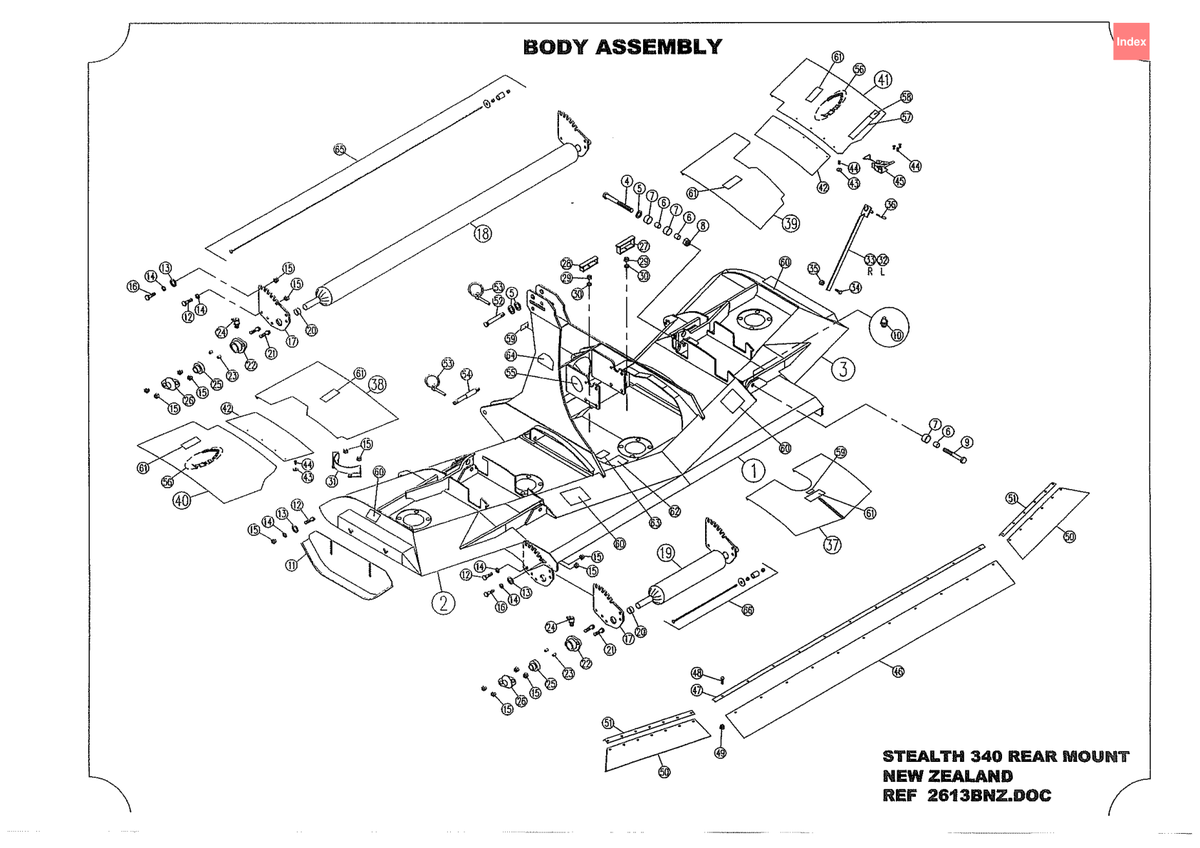

Stealth S1 - Body Assembly

Stealth S1 340

Grouped product items
No.	Product Name	Price
4	Bolt 305-620-153 More Info >	€20.16
5	Washer - Heavy Flat 308-200-064 More Info >	€0.73
6	Bush - Inner Ring 401-021-860 More Info >	€25.88
7	Bush i See notes section for usage notes on this part 402-061-050 More Info >	€19.49
9	Bolt 301-220-803 More Info >	€7.90
10	Grease Nipple 208-442-600 More Info >	€2.25
11	Skid Weldment - Rear Mount ��6" Rollers ST i See notes section for usage notes on this part 412-320-112 More Info >	€153.64
12	Bolt 301-212-353 More Info >	€1.59
13	Washer - Heavy Flat 308-120-063 More Info >	€0.37
14	Washer - Spring 308-120-043 More Info >	€0.37
15	Nut - Plain 307-212-013 More Info >	€0.92
16	Bolt 301-212-403 More Info >	€1.77
18	Roller Weldment - FrST/RrSTFM i See notes section for usage notes on this part 414-320-015 More Info >	€670.59
19	Roller Weldment - Rear i See notes section for usage notes on this part 414-320-014 More Info >	€329.19
20	Sleeve 402-464-062 More Info >	€6.74
21	Bolt 301-212-503 More Info >	€2.00
23	Sleeve 402-480-740 More Info >	€4.86
24	Grease Nipple 208-442-620 More Info >	€2.39
26	Cap 410-464-072 More Info >	€21.98
29	Nut - Nyloc 307-208-053 More Info >	€0.49
30	Washer - Spring 308-080-043 More Info >	€0.37
34	Bolt 301-212-453 More Info >	€1.89
35	Nut - Nyloc 307-212-053 More Info >	€0.61
36	R-Clip 206-443-400 More Info >	€1.16
38	Cover i See notes section for usage notes on this part 410-330-373 More Info >	€280.45
39	Cover i See notes section for usage notes on this part 410-330-374 More Info >	€280.45
40	Cover i See notes section for usage notes on this part 410-330-383 More Info >	€231.71
42	Filler Rubber i See notes section for usage notes on this part 410-330-375 More Info >	€48.02
43	Washer - Fender 108-031-413 More Info >	€0.37
44	Blind Rivet 213-443-250 More Info >	€0.33
45	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	€15.00
48	Bolt 301-206-203 More Info >	€0.49
49	Nut - Nyloc 307-206-053 More Info >	€0.37
52	Pin - Linkage - Top Link 419-301-150 More Info >	€8.74
53	Linch Pin 203-300-700 More Info >	€1.16
54	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
55	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	€29.76
65	Roller Scraper 404-320-127 More Info >	€47.73
66	Roller Scraper 404-320-128 More Info >	€16.77
