NOTES:

Part #	Number on image	Usage Notes
421-000-091	29	Use P/N 421-000-186 Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable

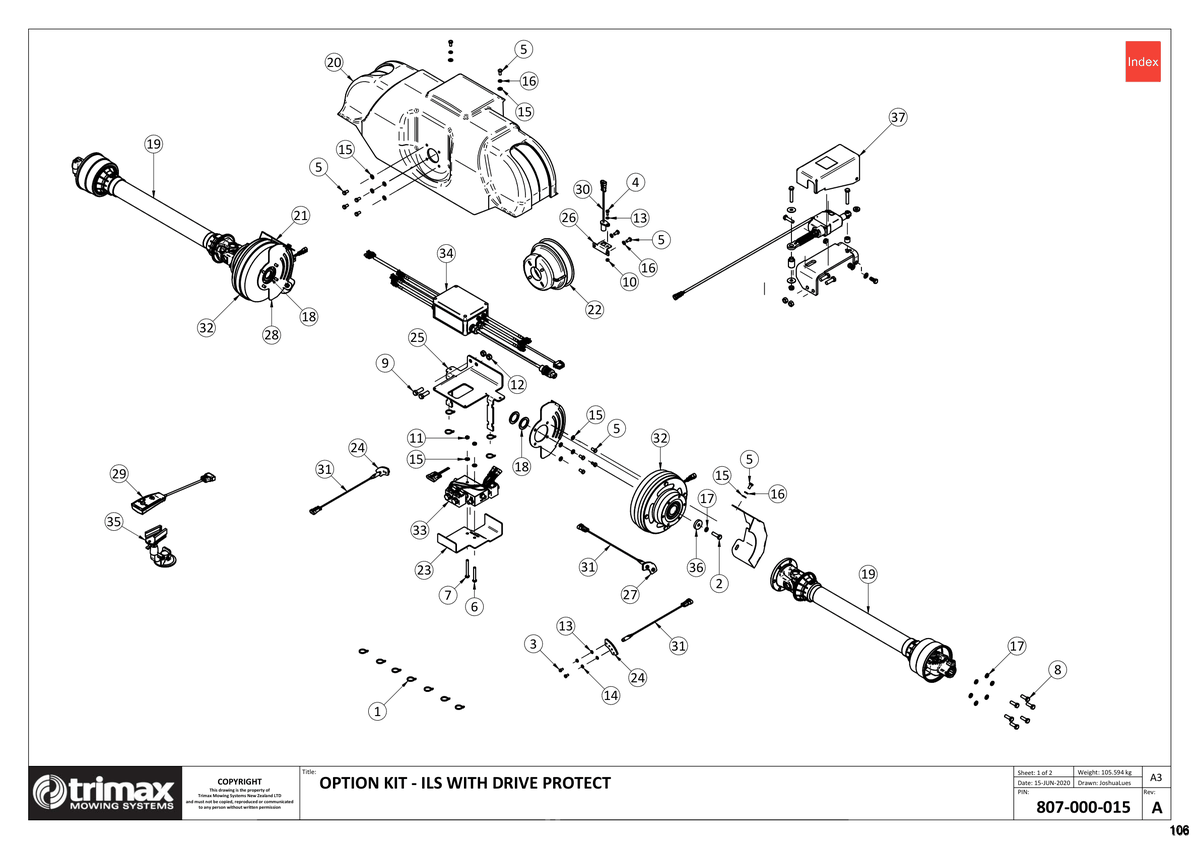

Option Kit - ILS With Drive Protect

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Cable tie 210-900-014 More Info >	Price on Request
2	Bolt 301-110-353 More Info >	€2.37
3	Bolt - Hex Head - M6 x 12 - Trimax Specification 301-206-123 More Info >	€0.43
4	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	€0.43
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
6	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	€1.28
7	Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753 More Info >	€1.49
8	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
9	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
10	Nut - Nyloc 307-206-053 More Info >	€0.37
11	Nut - Nyloc 307-208-056 More Info >	€0.61
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
13	Washer - Flat 308-060-013 More Info >	€0.31
14	Washer - Spring 308-060-043 More Info >	€0.31
15	Washer - Flat 308-080-016 More Info >	€0.37
16	Washer - Spring 308-080-043 More Info >	€0.37
17	Washer - Spring 308-100-043 More Info >	€0.37
18	Thrust Washer 402-000-104 More Info >	€29.26
19	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	€543.47
20	Cover - Command Module 410-000-304 More Info >	€1,078.09
21	Clutch Cover Weldment - MLS 410-000-357 More Info >	€58.74
22	PTO Cone - MLS - sensor/holes punched 410-440-404 More Info >	€9.77
23	Mount Bracket Folding 418-000-398 More Info >	€34.77
24	Proximity Cam 418-000-650 More Info >	€20.22
25	Folding 418-000-773 More Info >	Price on Request
27	Plate 418-000-777 More Info >	Price on Request
28	Clutch Cover Mount MLS Weldment 418-000-779 More Info >	€60.91
29	Cab Controller Assembly - ILS with Drive Protect i See notes section for usage notes on this part 421-000-091 More Info >	€263.40
30	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	€114.85
31	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	€114.85
32	Clutch & Plug Assembly - MLS 421-000-138 More Info >	€1,856.12
34	Control box subassembly - ILS with Drive Protect - Firmware flashed, decal applied, unit tested 421-000-161 More Info >	€656.51
35	Cab Controller Mount Assembly - MLS 421-000-172 More Info >	€121.96
36	Retaining Washer - Electric Clutch 450-844-160 More Info >	€15.49
37	Remote Unlock parts kit for MLS OR Remote Unlock update kit - Pegasus S4 807-000-017 More Info >	€642.60
