NOTES:

Part #	Number on image	Usage Notes
412-000-148	19	Antibounce Skid available as an option
404-320-122	20	Roller Scraper available as an option

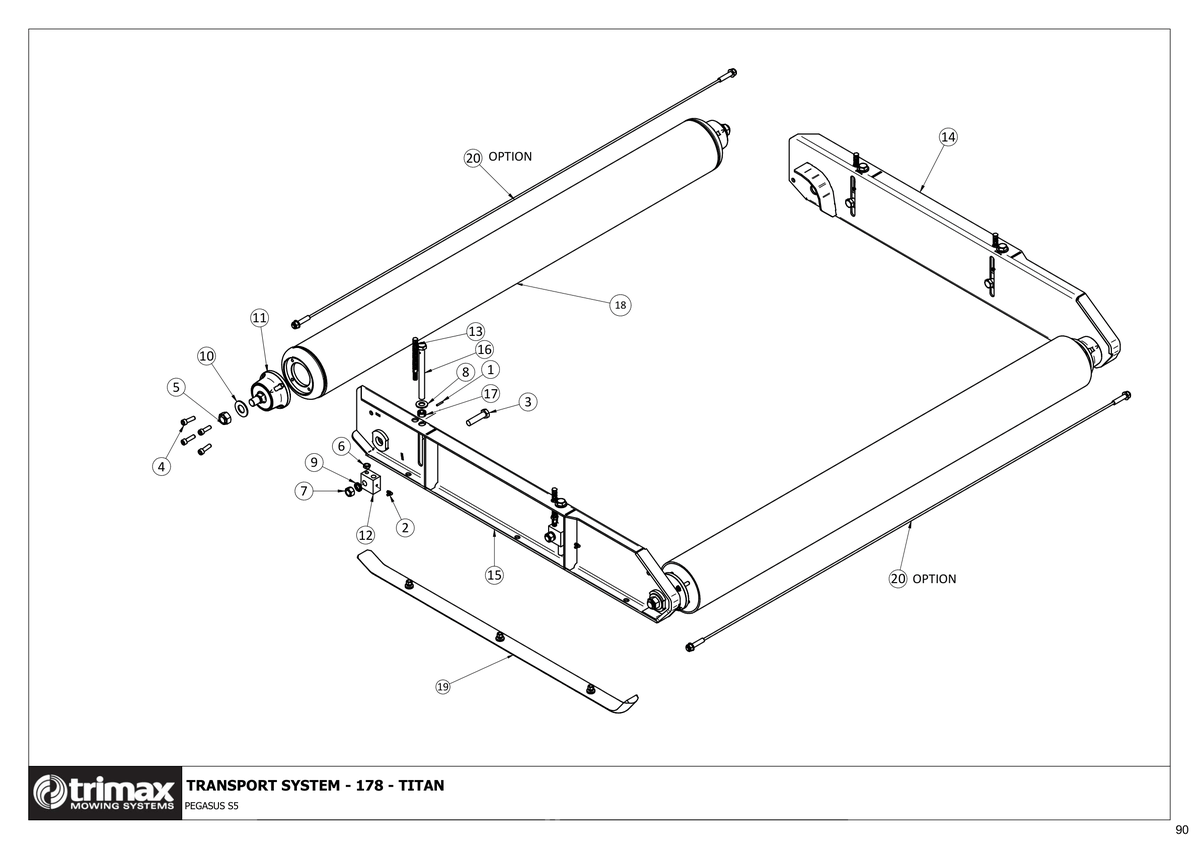

781 - Pegasus S5 - Transport System 178

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	€2.14
2	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
4	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	€1.59
5	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	€9.11
6	Nut - Half 307-212-023 More Info >	€1.16
7	Nut - Plain 307-216-013 More Info >	€1.16
8	Washer - Heavy Flat 308-160-063 More Info >	€0.67
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
10	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	€1.53
11	Roller Bearing Assembly - Titan 401-000-035 More Info >	€229.25
12	Height Adjuster Block 412-000-255 More Info >	€48.45
13	Height Indicator Rod - 6 Sided 412-000-580 More Info >	€12.49
16	Set Screw 412-000-609 More Info >	€5.52
17	Collar - Height Adjuster 412-850-260 More Info >	€16.61
18	Roller Weldment 414-000-157 More Info >	€586.39
19	Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148 More Info >	€124.39
20	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	€41.47
