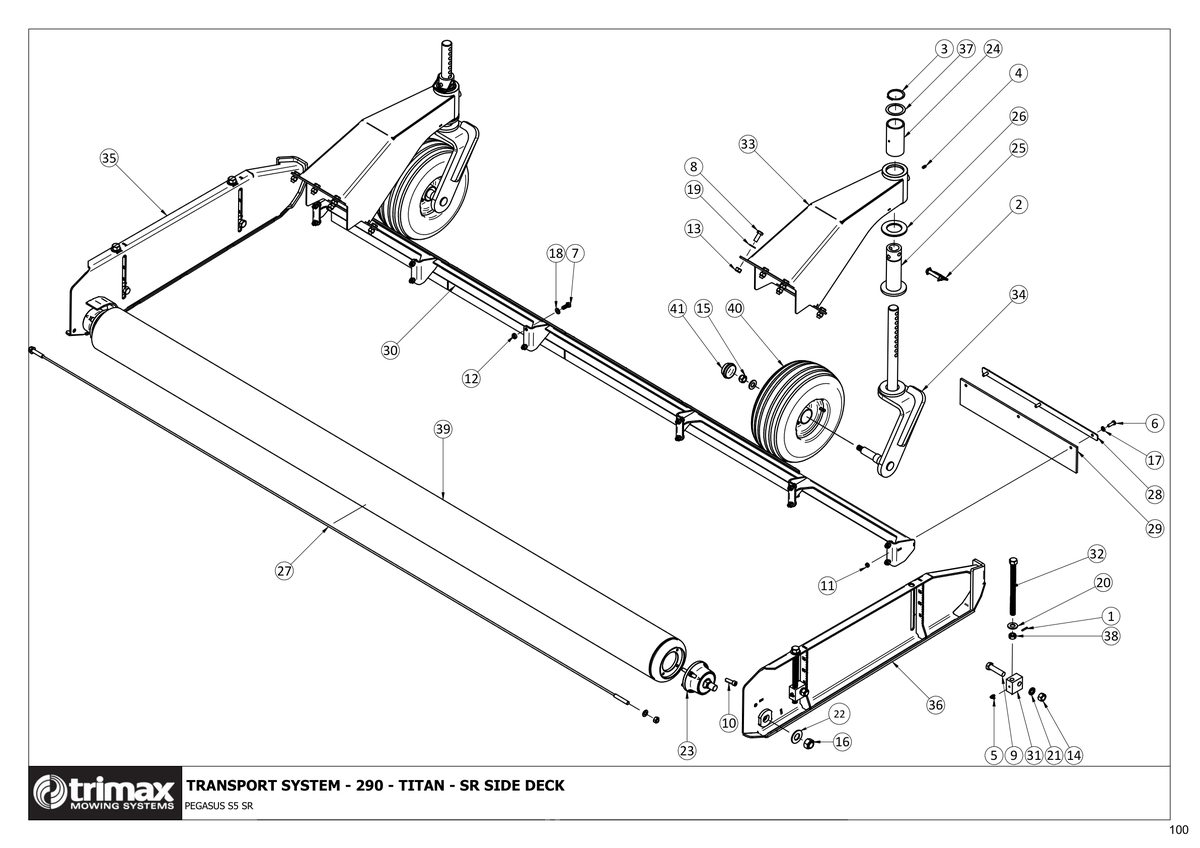

781 - Pegasus S5 SR - Transport System 290 - Side Deck

Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	€2.14
2	Shaft Locking Pin - 11mm X 54mm 203-000-001 More Info >	€3.65
3	Circlip/Snap Ring - External 204-820-522 More Info >	€1.79
4	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
5	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
6	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	€0.74
7	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	€0.85
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
9	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
10	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	€1.59
11	Nut - Nyloc 307-208-056 More Info >	€0.61
12	Nut - Nyloc 307-210-053 More Info >	€0.61
13	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
14	Nut - Plain 307-216-013 More Info >	€1.16
15	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
16	Nyloc Nut M22 307-222-053 More Info >	€2.06
17	Washer - Flat 308-080-016 More Info >	€0.37
18	Washer - Flat 308-100-013 More Info >	€0.37
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
20	Washer - Heavy Flat 308-160-063 More Info >	€0.67
21	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
22	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	€1.53
23	Roller Bearing Assembly - Titan 401-000-035 More Info >	€229.25
24	Bush - Pivot 402-320-060 More Info >	€124.08
25	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	€251.92
26	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	€30.67
27	Scraper - Roller 290 404-320-129 More Info >	€67.41
28	Front Flap - Retaining Strip - Procut S5 410-000-472 More Info >	€54.83
29	Front Flap - PVK - Procut S5 410-000-474 More Info >	€10.63
30	Bumper Weldment - 290 - Procut S5 410-000-479 More Info >	€359.58
31	Height Adjuster Block 412-000-255 More Info >	€48.45
32	Screw Height Adj. 220mm 10.9 Grade 412-000-653 More Info >	€21.25
33	Castor Arm - Rotating - Weldment - Side Deck - Pegasus S5 SR 412-000-655 More Info >	€388.49
34	Castor Fork - Rotating -Weldment - Side Deck - Pegasus S5 SR 412-000-658 More Info >	€473.22
35	SR Side Channel - Weldment - LH - Pegasus S5 SR 412-000-668 More Info >	€495.22
36	SR Side Channel - Weldment - RH - Pegasus S5 SR 412-000-669 More Info >	€495.22
37	Washer - Retaining - Pegasus S5 SR 412-000-671 More Info >	€1.21
38	Collar - Height Adjuster 412-850-260 More Info >	€16.61
40	Wheel Assembly 416-449-010 More Info >	€210.47
41	Grease Cap - Wheel 416-449-015 More Info >	€14.69
