NOTES:

Part #	Number on image	Usage Notes
418-000-963	10	Use part number 510-000-079 for RH Outrigger including Hinge Bush Use part number 510-000-079 for RH Outrigger including Hinge Bush Use part number 510-000-079 for RH Outrigger including Hinge Bush Use part number 510-000-079 for RH Outrigger including Hinge Bush

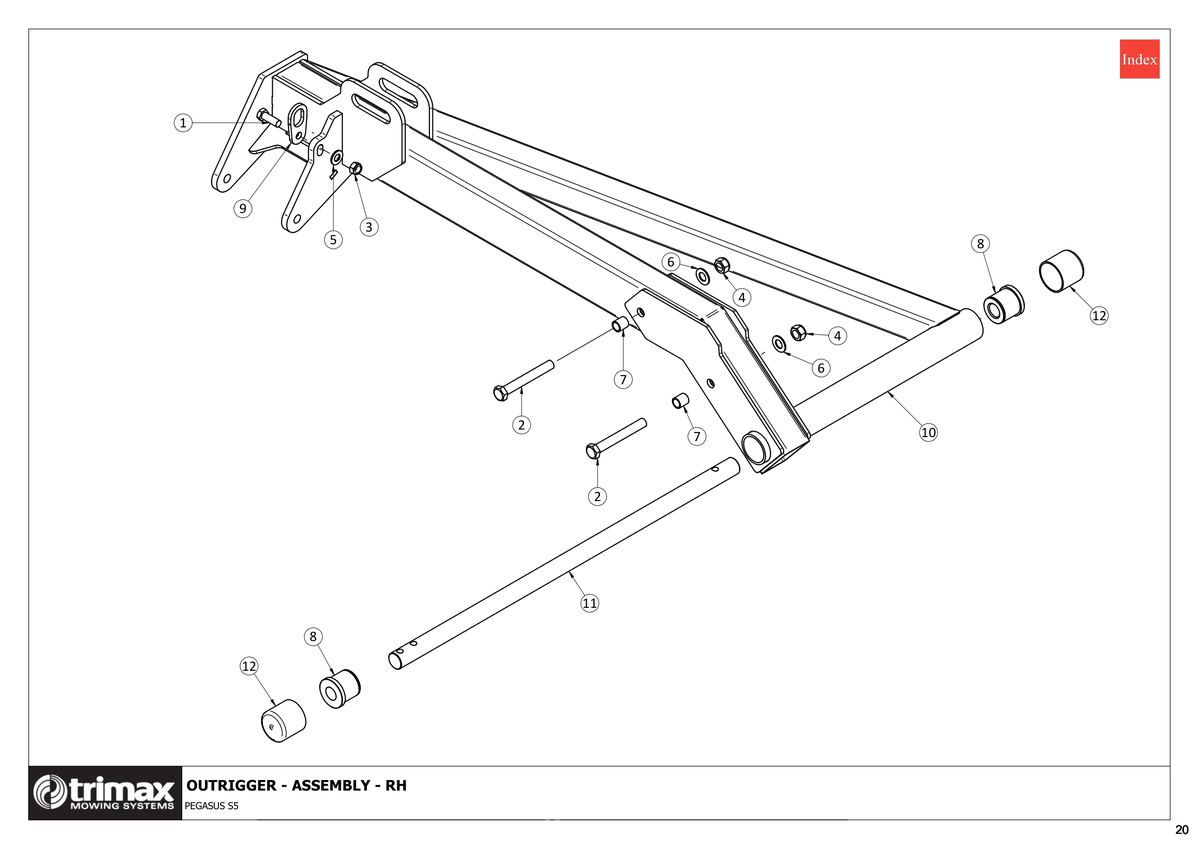

781 - Pegasus S5 SR - Outrigger Assembly RH

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Bolt 301-216-453 More Info >	€3.89
2	Bolt 301-620-153 More Info >	€8.27
3	Nut - Nyloc 307-216-053 More Info >	€1.34
4	Nut - Nyloc 307-220-053 More Info >	€1.59
5	Washer - Heavy Flat 308-160-063 More Info >	€0.67
6	Washer - Flat 308-200-013 More Info >	€0.98
7	Inner Ring - Lock Bush 401-000-018 More Info >	€20.00
9	Safety Cable Attach Point - Outrigger 418-000-883 More Info >	€13.66
10	Side Outrigger Weldment - RH i See notes section for usage notes on this part 418-000-963 More Info >	€1,392.60
12	Cap - Hinge Pin Ø 1 ¼" 209-000-009 More Info >	€6.44
