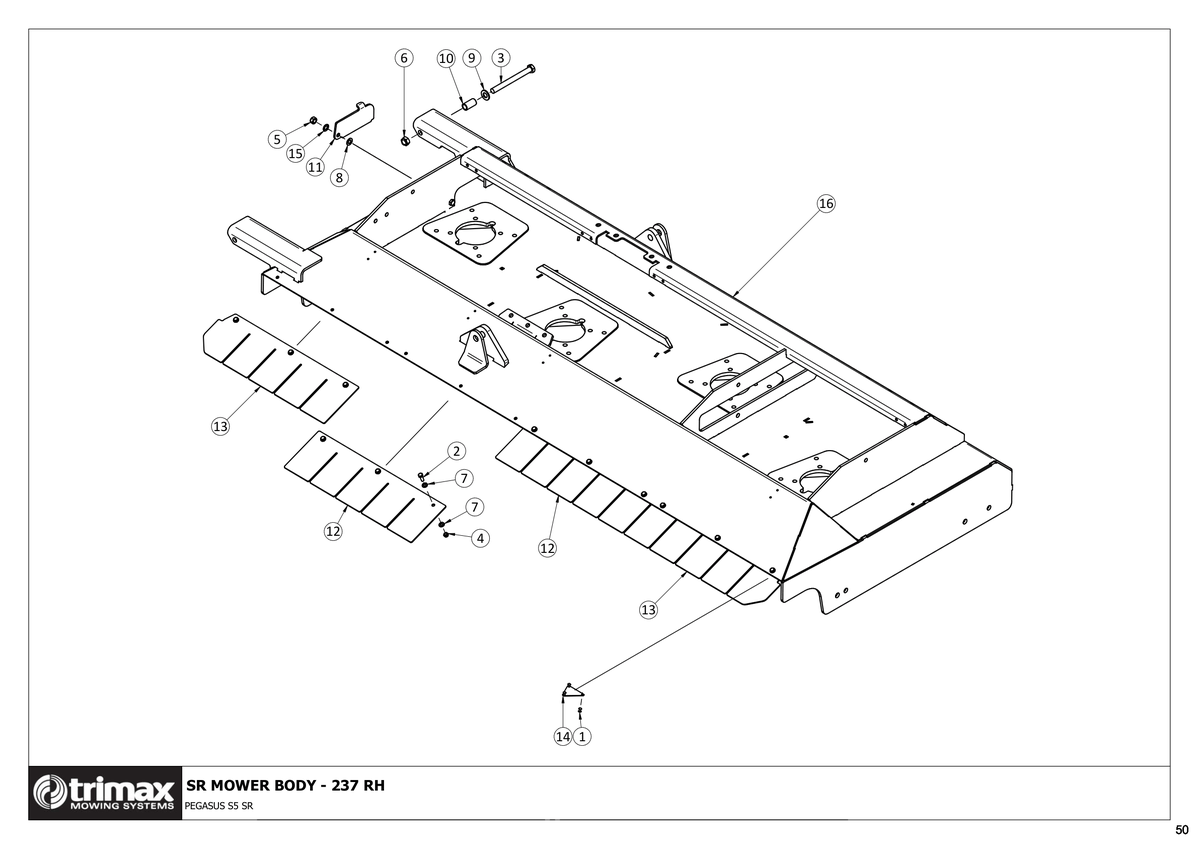

781 - Pegasus S5 SR - Mower Body Assembly 237 RH

Pegasus S5 SR 610

Grouped product items
No.	Product Name	Price
1	Blind Rivet 213-443-250 More Info >	€0.33
2	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	€0.74
3	Bolt - Hex Head - M16 x 170 - Trimax Specification 301-616-173	€8.22
4	Nut - Nyloc 307-208-056 More Info >	€0.61
5	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
6	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
7	Washer - Flat 308-080-016 More Info >	€0.37
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
9	Washer - Heavy Flat 308-160-063 More Info >	€0.67
10	Bush - Lock Inner SS 402-000-173 More Info >	€32.14
11	Wash Panel - RH 410-000-134 More Info >	€22.04
12	Rear Flap - Inner - Procut S5 410-000-461 More Info >	€63.24
13	Rear Flap - Outer - Procut S5 410-000-463 More Info >	€29.17
14	Cap Plate 417-001-024 More Info >	€2.68
15	Washer - Crinkle 450-000-116 More Info >	€1.28
16	Body Weldment - Pegasus S5 SR 237 RH Powder Coated 502-000-261	Price on Request
