NOTES:

Part #	Number on image	Usage Notes
421-000-392	28	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical
421-000-393	30	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical
421-000-396	34	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical

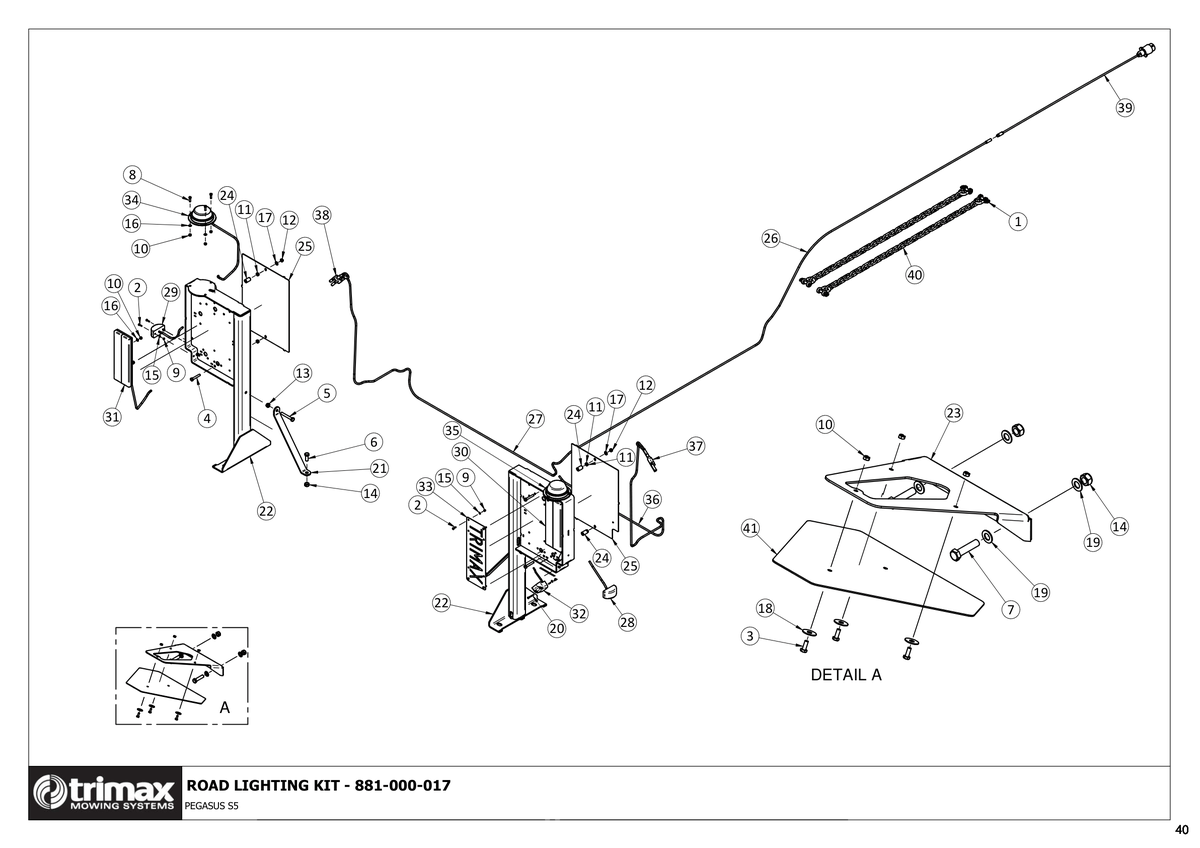

781 - Pegasus S5 - Road Kit - Option

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	D-Shackle NZS5467 214-000-002 More Info >	€21.95
2	Bolt 301-204-163 More Info >	€0.43
3	Bolt 301-206-163 More Info >	€0.43
4	Bolt 301-208-503 More Info >	€1.25
5	Bolt 301-210-703 More Info >	€2.15
6	Bolt 301-212-303 More Info >	€1.46
7	Bolt 301-212-503 More Info >	€2.00
9	Nut - Nyloc 307-204-053 More Info >	€0.31
10	Nut - Nyloc 307-206-053 More Info >	€0.37
11	Nut - Plain 307-208-013 More Info >	€0.37
12	Nut - Nyloc 307-208-053 More Info >	€0.49
13	Nut - Nyloc 307-210-053 More Info >	€0.61
14	Nut - Nyloc 307-212-053 More Info >	€0.61
15	Washer - Flat 308-040-013 More Info >	€0.37
16	Washer - Flat 308-060-013 More Info >	€0.31
17	Washer - Flat 308-080-013 More Info >	€0.37
18	Washer- Fender M8 ZP 308-080-073 More Info >	€0.37
19	Washer - Flat 308-120-013 More Info >	€0.37
20	Screw 315-204-356 More Info >	Price on Request
22	Road Lighting - Weldment - L&R 418-000-911 More Info >	€386.84
24	Light Bracket - Cover Plate Spacer 418-000-931 More Info >	€22.50
25	Light Bracket - Cover Plate 418-000-932 More Info >	€43.71
26	Loom - Tail Light Cable 3.7m 5 Core Split End 421-000-067 More Info >	€66.05
27	Loom - Tail Light Cable 1.9m 421-000-069 More Info >	€27.81
28	Light - Side Marker i See notes section for usage notes on this part 421-000-392 More Info >	€68.71
30	Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug i See notes section for usage notes on this part 421-000-393 More Info >	€120.79
32	Light - Number Plate 421-000-394 More Info >	€66.50
34	Led Strobe Light - Safety Beacon i See notes section for usage notes on this part 421-000-396 More Info >	€85.17
36	Cable - 1.7m 4 Core Gooseneck End 421-000-400 More Info >	€41.26
37	2 Core Splitter Plug - 3 Way NAPA Part Number: 2P4WB 421-000-418 More Info >	€3.69
38	2 Core Splitter Plug - 2 Way 421-000-450 More Info >	€6.43
39	Loom - Trailer Plug inc. Cable 1m /w Steel Plug 421-000-586 More Info >	€56.35
41	Sign - Safety Triangle 450-000-124 More Info >	€93.80
