NOTES:

Part #	Number on image	Usage Notes
404-320-124	10	Roller Scraper available as an option
486-000-005		Used on LH Decks Only
486-000-007		Used on RH Decks Only

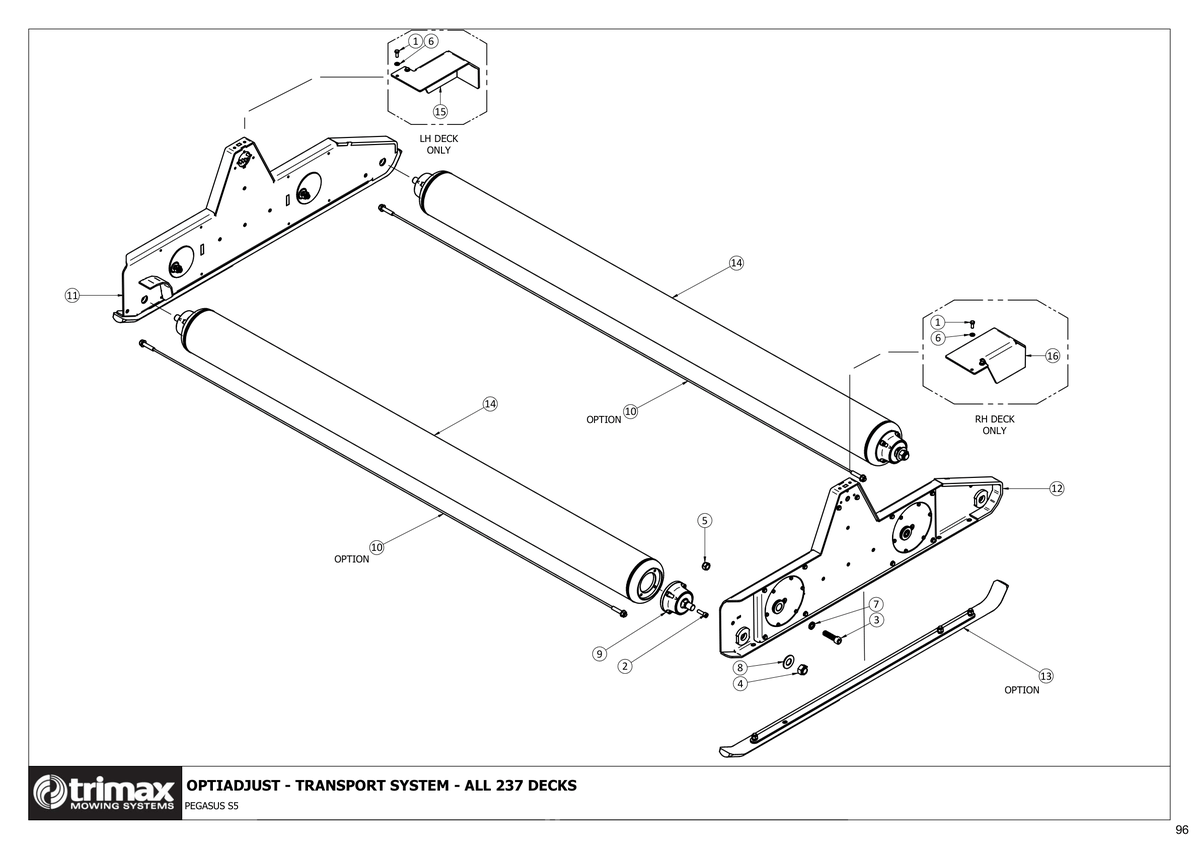

781 - Pegasus S5 OptiAdjust V2 - Transport System - All 237 Decks

Pegasus S5 OptiAdjust V2 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
2	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	€1.59
4	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	€9.11
5	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
6	Washer - Flat 308-080-016 More Info >	€0.37
7	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
8	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	€1.53
9	Roller Bearing Assembly - Titan 401-000-035 More Info >	€229.25
10	Scraper - Roller 237 i See notes section for usage notes on this part 404-320-124 More Info >	€54.54
14	Roller Weldment - Titan 414-000-158 More Info >	€679.88
	Motor Cover Weldment LH i See notes section for usage notes on this part 486-000-005 More Info >	Price on Request
	Motor Cover Weldment RH i See notes section for usage notes on this part 486-000-007 More Info >	Price on Request
