NOTES:

Part #	Number on image	Usage Notes
424-000-304	17	For 610 Pegasus, Use P/N: 424-000-307 \| For 722 Pegasus, Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307 \| For 722 Pegasus, Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307 \| For 722 Pegasus, Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307 \| For 722 Pegasus, Use P/N: 424-000-310

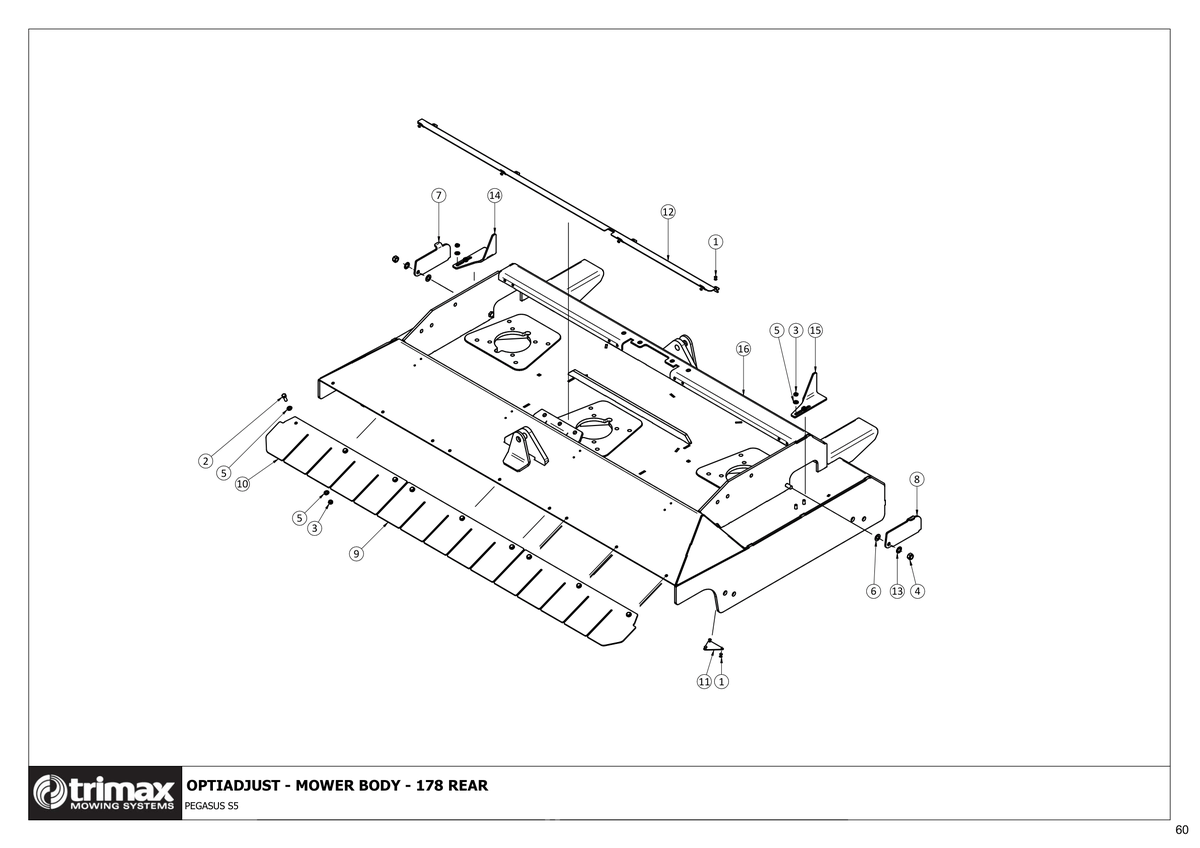

781 - Pegasus S5 OptiAdjust V2 - Mower Body - 178 Rear

Pegasus S5 OptiAdjust V2 493, Pegasus S5 OptiAdjust V2 610, Pegasus S5 OptiAdjust V2 722

Grouped product items
No.	Product Name	Price
1	Blind Rivet 213-443-250 More Info >	€0.33
2	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	€0.74
3	Nut - Nyloc 307-208-056 More Info >	€0.61
4	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
5	Washer - Flat 308-080-016 More Info >	€0.37
6	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
7	Wash Panel - RH 410-000-134 More Info >	€22.04
8	Wash Panel - LH 410-000-135 More Info >	€22.04
9	Rear Flap - Inner - Procut S5 410-000-461 More Info >	€63.24
10	Rear Flap - Outer - Procut S5 410-000-463 More Info >	€29.17
11	Cap Plate 417-001-024 More Info >	€2.68
17	Decal Sheet – Pegasus S5 - 493 Rear Deck i See notes section for usage notes on this part 424-000-304	€53.57
13	Washer - Crinkle 450-000-116 More Info >	€1.28
	Proximity Sensor Detection Plate LH 486-000-013 More Info >	Price on Request
	Proximity Sensor Detection Plate RH 486-000-015 More Info >	Price on Request
