NOTES:

Part #	Number on image	Usage Notes
403-360-111	30	Idler Pulley assembly includes pulley, Bearings, circlip, washer, assembled
403-360-110	47	Ilder Pulley only no bearings

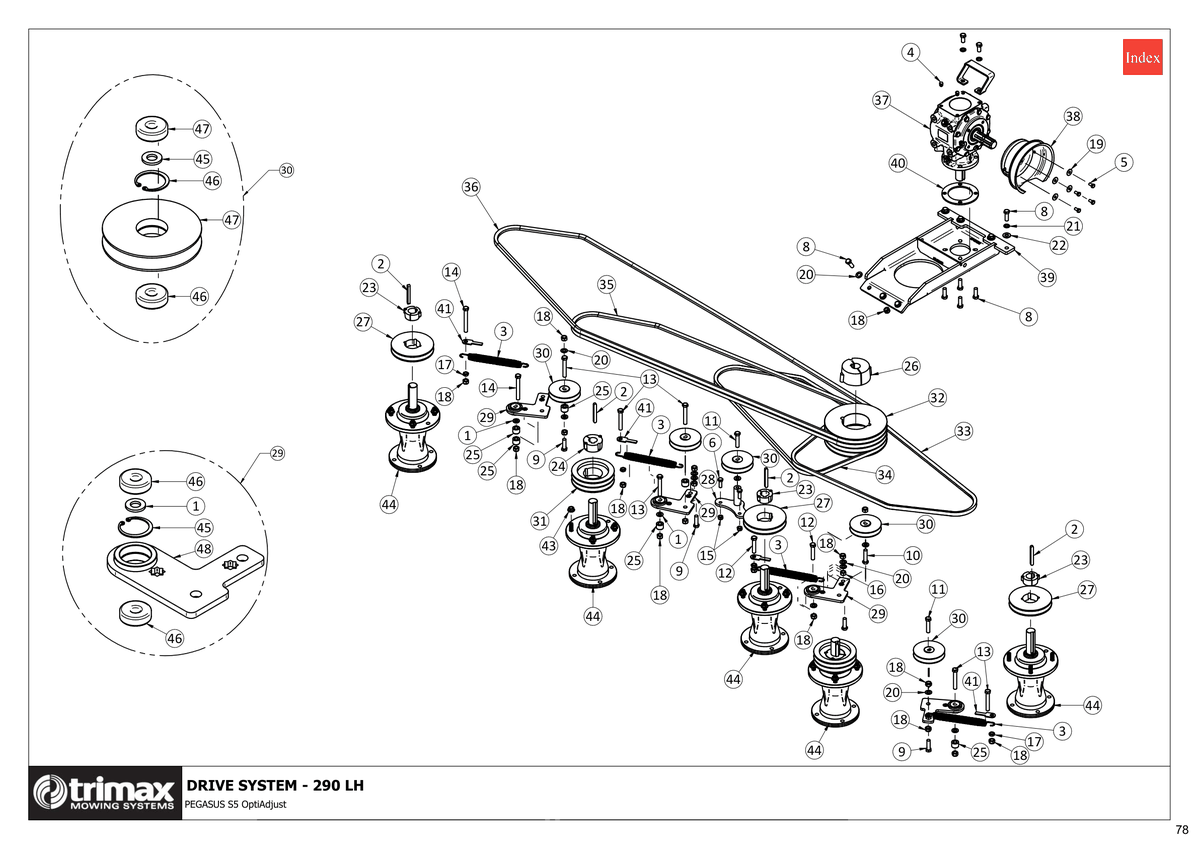

781 - Pegasus S5 OptiAdjust V2 - Drive System 290 LH

Pegasus S5 OptiAdjust V2 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	€3.41
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	€14.29
4	Blanking Plug - M12 209-900-012 More Info >	€1.04
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
6	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
7	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
8	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
9	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
10	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	€2.00
11	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	€2.61
12	Bolt - Hex Head - M12 x 60 - Trimax Specification 301-212-603 More Info >	€2.67
13	Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803 More Info >	€3.16
14	Bolt - Hex Head - M12 x 100 - Trimax Specification 301-612-103 More Info >	€3.04
15	Nut - Nyloc 307-210-053 More Info >	€0.61
16	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
17	Nut - Half 307-212-023 More Info >	€1.16
18	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
19	Washer - Fender - M8 308-080-073 More Info >	€0.37
20	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
21	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
22	Washer - Heavy Flat 308-120-063 More Info >	€0.37
23	Bush - Taper Lock 402-000-078 More Info >	€15.49
24	Bush - Taper Lock 402-000-090 More Info >	€19.80
26	Bush - Taper Lock 402-060-680 More Info >	€50.33
27	Pulley - Taper Lock 403-000-083 More Info >	€58.34
30	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	€52.33
31	Pulley - Taper Lock 403-361-140 More Info >	€61.49
32	Pulley - Taper Lock 403-361-290 More Info >	€183.99
33	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
35	Vee Belt - Trimax Specification 404-041-150 More Info >	€38.13
36	Vee Belt - Trimax Specification 404-041-580 More Info >	€52.82
37	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
38	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
39	Gearbox Mount Weldment 417-001-297 More Info >	€197.17
40	Gearbox Spacer Disc 417-001-300 More Info >	€47.29
42	Folding 418-000-633 More Info >	€21.67
43	Nut - Flange 450-000-078 More Info >	€2.06
44	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	€544.51
45	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
46	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
47	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	€23.68
