NOTES:

Part #	Number on image	Usage Notes
421-000-612	34	Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable
421-000-190	39	Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3) Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3) Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3) Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3)

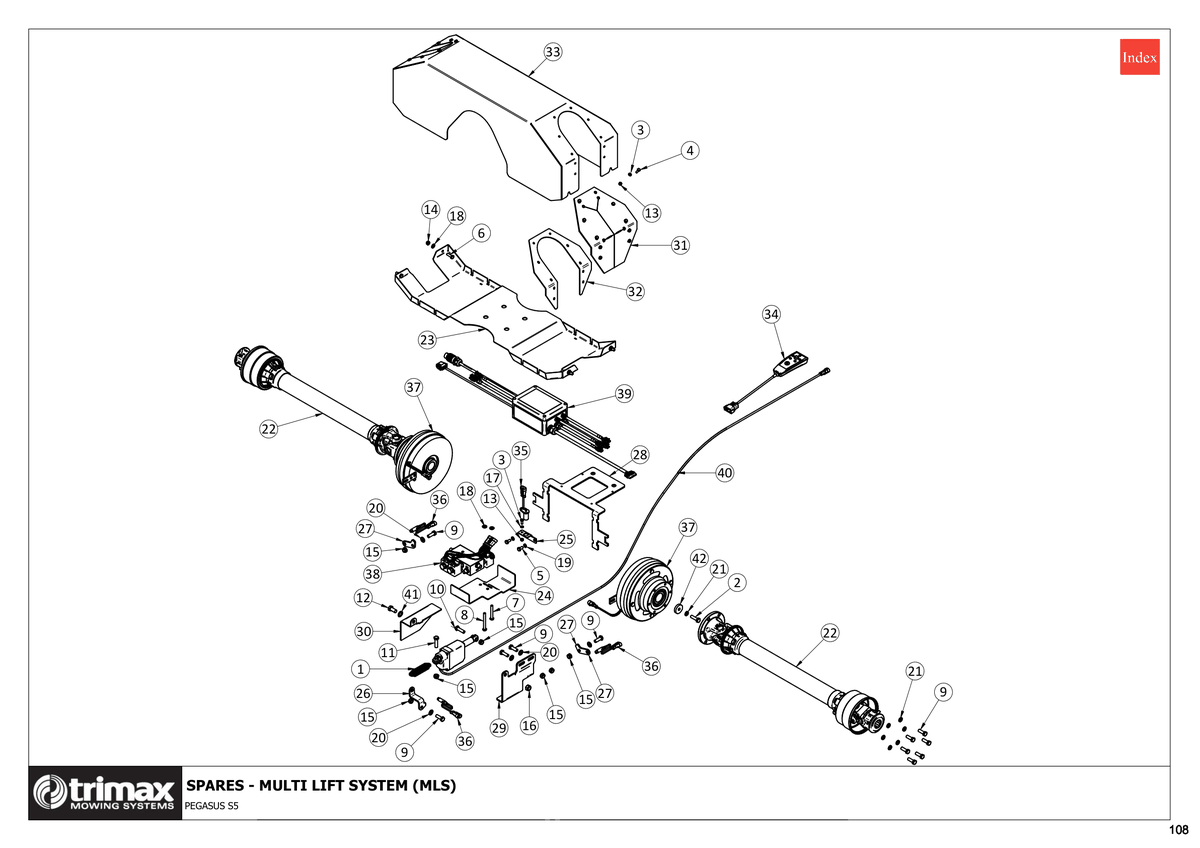

781 - Pegasus S5 - Multi Lift System (MLS)

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	€55.95
2	Bolt 301-110-353 More Info >	€2.37
3	Bolt 301-206-163 More Info >	€0.43
4	Bolt 301-206-203 More Info >	€0.49
5	Bolt 301-208-163 More Info >	€0.61
6	Bolt 301-208-253 More Info >	€0.74
7	Bolt 301-208-603 More Info >	€1.28
8	Bolt 301-208-753 More Info >	€1.49
9	Bolt 301-210-303 More Info >	€0.92
10	Bolt 301-210-353 More Info >	€1.04
11	Bolt 301-210-403 More Info >	€1.14
12	Bolt 301-212-253 More Info >	€1.34
13	Nut - Nyloc 307-206-053 More Info >	€0.37
14	Nut - Nyloc 307-208-053 More Info >	€0.49
15	Nut - Nyloc 307-210-053 More Info >	€0.61
16	Nut - Nyloc 307-212-053 More Info >	€0.61
17	Washer - Flat 308-060-013 More Info >	€0.31
18	Washer - Flat 308-080-013 More Info >	€0.37
19	Washer - Spring 308-080-043 More Info >	€0.37
20	Washer - Flat 308-100-013 More Info >	€0.37
21	Washer - Spring 308-100-043 More Info >	€0.37
22	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	€543.47
23	MLS Bottom Cover 418-000-942 More Info >	€194.62
24	Mount Bracket Folding 418-000-398 More Info >	€34.77
26	Mount - Prox Rear 418-000-838 More Info >	€17.99
27	Mount Tab - Prox L&R 418-000-839 More Info >	€14.38
28	Mount Plate - Mls Electrical Box 418-000-867 More Info >	€74.59
29	Bracket - Remote Unlock 418-000-899 More Info >	€57.51
30	Cover - Remote Unlock 418-000-901 More Info >	€15.94
31	MLS Cover Insert 418-000-943 More Info >	€55.09
32	MLS Insert Retainer Plate 418-000-944 More Info >	€45.92
33	MLS Top Cover 418-000-970 More Info >	€275.00
34	Cab Controller Assembly - MLS with Drive Protect i See notes section for usage notes on this part 421-000-612 More Info >	€255.68
35	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	€114.85
36	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	€114.85
37	Clutch & Plug Assembly - MLS 421-000-138 More Info >	€1,856.12
39	Control box subassembly - MLS with Drive Protect (for Pegasus S5) - Firmware flashed, decal applied, unit tested i See notes section for usage notes on this part 421-000-190 More Info >	Price on Request
40	Actuator Assembly 421-000-397 More Info >	€600.96
41	Washer - Crinkle 450-000-116 More Info >	€1.28
42	Retaining Washer - Electric Clutch 450-844-160 More Info >	€15.49
