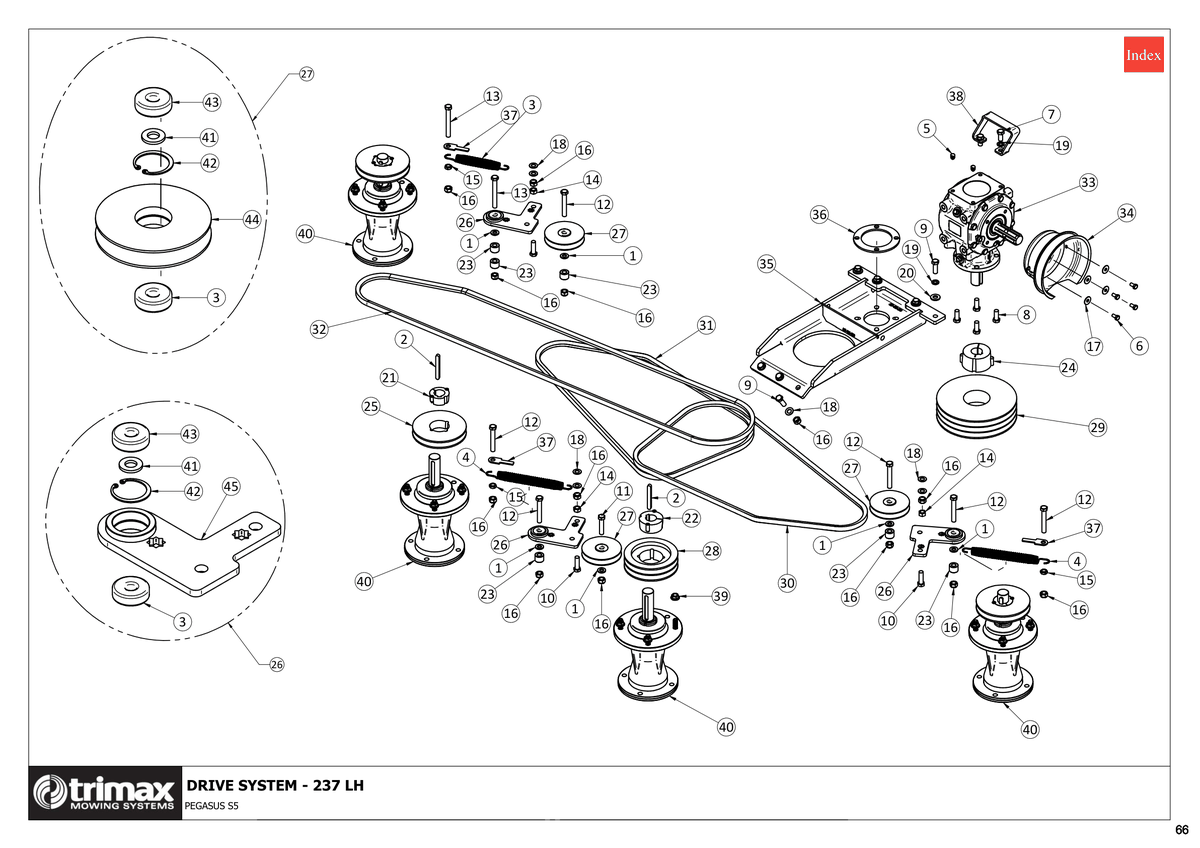

781 - Pegasus S5 - Drive System 237 LH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	€3.41
3	Spring - Tension 207-000-009 More Info >	€14.29
5	Blanking Plug 209-900-012 More Info >	€1.04
6	Bolt 301-208-163 More Info >	€0.61
7	Bolt 301-212-253 More Info >	€1.34
8	Bolt 301-212-303 More Info >	€1.46
9	Bolt 301-212-353 More Info >	€1.59
10	Bolt 301-212-403 More Info >	€1.77
11	Bolt 301-212-553 More Info >	€2.61
12	Bolt 301-212-803 More Info >	€3.16
13	Bolt 301-612-103 More Info >	€3.04
14	Nut - Plain 307-212-013 More Info >	€0.92
15	Nut - Half 307-212-023 More Info >	€1.16
16	Nut - Nyloc 307-212-053 More Info >	€0.61
17	Washer- Fender M8 ZP 308-080-073 More Info >	€0.37
18	Washer - Flat 308-120-013 More Info >	€0.37
19	Washer - Spring 308-120-043 More Info >	€0.37
20	Washer - Heavy Flat 308-120-063 More Info >	€0.37
21	Bush - Taper Lock 402-000-078 More Info >	€15.49
22	Bush - Taper Lock 402-000-090 More Info >	€19.80
24	Bush - Taper Lock 402-060-820 More Info >	€35.71
25	Pulley - Taper Lock 403-000-083 More Info >	€58.34
27	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
28	Pulley - Taper Lock 403-361-140 More Info >	€61.49
29	Pulley - Taper Lock 403-361-330 More Info >	€130.28
30	Vee Belt 404-040-750 More Info >	€23.01
32	Vee Belt 404-041-150 More Info >	€38.13
33	Gearbox 405-200-720 More Info >	€740.95
34	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
35	Gearbox Mount Weldment 417-001-297 More Info >	€197.17
36	Gearbox Spacer Disc 417-001-300 More Info >	€47.29
38	Folding 418-000-633 More Info >	€21.67
39	Nut - Flange 450-000-078 More Info >	€2.06
40	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	€544.51
42	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
43	Bearing 401-021-900 More Info >	€11.85
44	Pulley - Idler 403-360-110 More Info >	€23.68
