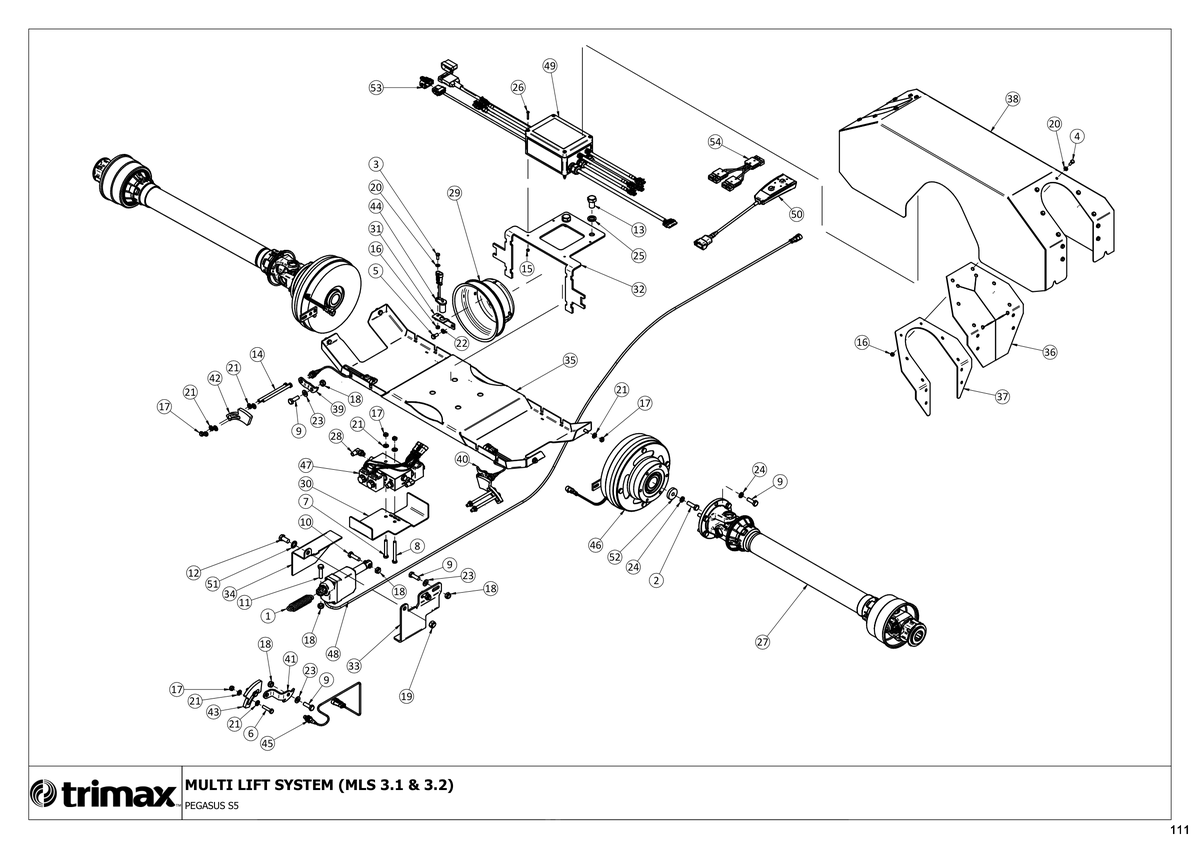

781 - Pegasus S5 610 - Multi Lift System (MLS 3.1 and 3.2)

Pegasus S5 610

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	€55.95
2	Bolt 301-110-353 More Info >	€2.37
3	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	€0.43
4	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	€0.49
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
6	Bolt - Hex Head - M8 x 35 - Trimax Specification 301-208-353 More Info >	Price on Request
7	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	€1.28
8	Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753 More Info >	€1.49
9	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
10	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	€1.04
11	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	€1.14
12	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
13	Bolt - Hex Head - M16 x 25 - Trimax Specification 301-216-253 More Info >	€2.55
14	Bolt - Hex Head - M8 x 120 - Trimax Specification 301-608-123 More Info >	Price on Request
15	Nut - Nyloc 307-204-053 More Info >	€0.31
16	Nut - Nyloc 307-206-053 More Info >	€0.37
17	Nut - Nyloc 307-208-053 More Info >	€0.49
18	Nut - Nyloc 307-210-053 More Info >	€0.61
19	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
20	Washer - Flat 308-060-013 More Info >	€0.31
21	Washer - Flat 308-080-013 More Info >	€0.37
22	Washer - Spring 308-080-043 More Info >	€0.37
23	Washer - Flat 308-100-013 More Info >	€0.37
24	Washer - Spring 308-100-043 More Info >	€0.37
25	Washer - Spring 308-160-043 More Info >	€0.49
26	Pan Head Machine Screw - Philips M4 x 25 SS 304 315-204-256 More Info >	Price on Request
27	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	€543.47
28	90 Deg Hyd Fitting 408-000-084 More Info >	€23.21
29	PTO Cone - MLS - sensor/holes punched 410-440-404 More Info >	€9.77
30	Mount Bracket Folding 418-000-398 More Info >	€34.77
32	Mount Plate - Mls Electrical Box 418-000-867 More Info >	€74.59
33	Bracket - Remote Unlock 418-000-899 More Info >	€57.51
34	Cover - Remote Unlock 418-000-901 More Info >	€15.94
35	MLS Bottom Cover 418-000-942 More Info >	€194.62
36	MLS Cover Insert 418-000-943 More Info >	€55.09
37	MLS Insert Retainer Plate 418-000-944 More Info >	€45.92
38	MLS Top Cover 418-000-970 More Info >	€275.00
39	Mount Tab - Prox LH - ZP 418-000-988	Price on Request
40	Mount Tab - Prox RH - ZP 418-000-989	Price on Request
41	Mount - Prox Rear - ZP 418-000-991 More Info >	Price on Request
42	Sensor Outrigger Tab - Side - ZP 418-000-993 More Info >	Price on Request
43	Sensor Outrigger Tab - Rear - ZP 418-000-995 More Info >	Price on Request
44	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	€114.85
45	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	€114.85
46	Clutch & Plug Assembly - MLS 421-000-138 More Info >	€1,856.12
48	Actuator Assembly 421-000-397 More Info >	€600.96
49	Control box subassembly - MLS with Drive Protect - Firmware flashed, decal applied, unit tested 421-000-564 More Info >	€656.51
50	Cab Controller Assembly - MLS with Drive Protect 421-000-612 More Info >	€255.68
51	Washer - Crinkle 450-000-116 More Info >	€1.28
52	Retaining Washer - Electric Clutch 450-844-160 More Info >	€15.49
53	Connector Cap 478-000-022 More Info >	Price on Request
54	Wiring Harness - Y-Connector - Trimax Specification 485-000-015 More Info >	Price on Request
