NOTES:

Part #	Number on image	Usage Notes
416-000-121	11	For braked axle assembly exploded view look up page 119 for individual parts
416-000-122	12	For braked axle assembly exploded view look up page 119 for individual parts
472-000-004	23	Parts 22 and 23 come as a kit: 472-000-008

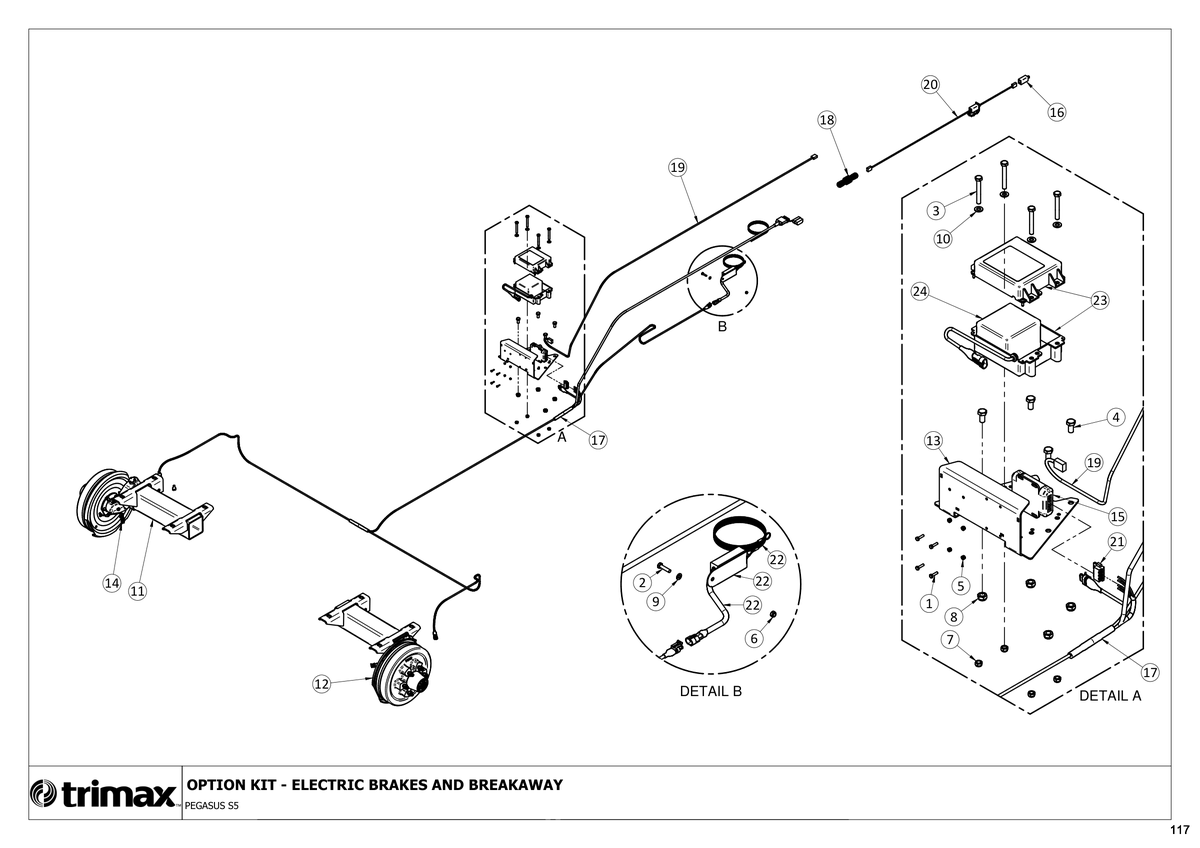

781 - Pegasus S5 610 - Electric Brake Kit and Breakaway - Option

Pegasus S5 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M4 x 16 - Trimax Specification 301-204-163 More Info >	€0.43
2	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	€0.49
3	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	€1.28
4	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	€0.67
5	Nut - Nyloc 307-204-053 More Info >	€0.31
6	Nut - Nyloc 307-206-053 More Info >	€0.37
7	Nut - Nyloc 307-208-053 More Info >	€0.49
8	Nut - Nyloc 307-210-053 More Info >	€0.61
9	Washer - Flat 308-060-013 More Info >	€0.31
10	Washer - Flat 308-080-013 More Info >	€0.37
11	Axle - Complete - 12" Electric Brake - LH i See notes section for usage notes on this part 416-000-121 More Info >	€1,696.94
12	Axle - Complete - 12" Electric Brakes - RH i See notes section for usage notes on this part 416-000-122 More Info >	€1,696.94
13	Brake Controller Bracket 417-001-667 More Info >	Price on Request
14	Connector Assembly 421-000-144 More Info >	Price on Request
17	Brakes and Breakaway Wiring Loom Pegasus S5 421-000-432 More Info >	€590.89
18	Ethernet Connector Plug 421-000-434 More Info >	€33.03
19	Ethernet Cable - 5m (Blue) 421-000-437 More Info >	€17.50
23	Brake Sys - Battery Case Assembly i See notes section for usage notes on this part 472-000-004 More Info >	Price on Request
24	Brake Sys - Battery - Trimax Specification 472-000-005 More Info >	Price on Request
