NOTES:

Part #	Number on image	Usage Notes
418-001-274	32	Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-275	33	Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.
418-001-280	34	Use Items 32,33 & 34 (418-001-274, 418-001-275 and 418-001-280 respectively) if the Side Channel comes with welded spacer.

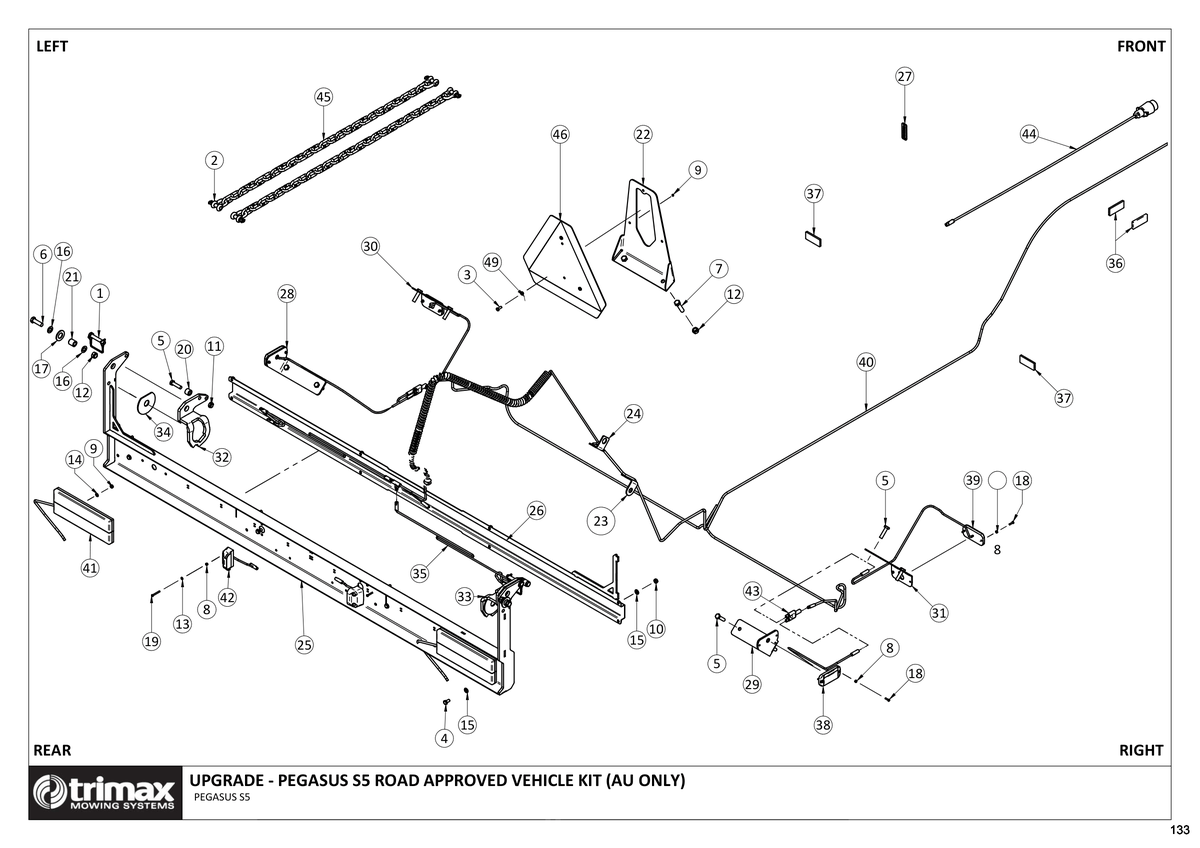

781 - Pegasus S5 493 - Road Approved Vehicle Kit (AU Only) - Option

Pegasus S5 493

Grouped product items
No.	Product Name	Price
1	Shaft Locking Pin - 11mm X 54mm 203-000-001 More Info >	€3.65
3	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	€0.43
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
5	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	€1.14
6	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	€1.77
7	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	€2.00
8	Nut - Nyloc 307-204-053 More Info >	€0.31
9	Nut - Nyloc 307-206-053 More Info >	€0.37
10	Nut - Nyloc 307-208-056 More Info >	€0.61
11	Nut - Nyloc 307-210-053 More Info >	€0.61
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
13	Washer - Flat 308-040-013 More Info >	€0.37
14	Washer - Flat 308-060-013 More Info >	€0.31
15	Washer - Flat 308-080-013 More Info >	€0.37
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
17	Washer - Flat 308-200-013 More Info >	€0.98
18	Screw 315-204-166 More Info >	Price on Request
19	Screw 315-204-356 More Info >	Price on Request
20	Bush - Lock Actuator 402-000-106 More Info >	€15.24
32	Light Bar Support Weldment LH i See notes section for usage notes on this part 418-001-274 More Info >	Price on Request
33	Light Bar Support Weldment RH i See notes section for usage notes on this part 418-001-275 More Info >	Price on Request
34	Washer Light Bar Support i See notes section for usage notes on this part 418-001-280 More Info >	Price on Request
35	Tail Light Cable - 1.3M - 4C130C 421-000-064 More Info >	€15.79
41	Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug 421-000-393 More Info >	€120.79
42	Light - Number Plate 421-000-394 More Info >	€66.50
43	2 Core Splitter Plug - 2 Way 421-000-450 More Info >	€6.43
44	Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586 More Info >	€56.35
46	Sign - Safety Triangle 450-000-124 More Info >	€93.80
49	Washer - Fender 308-060-076 More Info >	Price on Request
