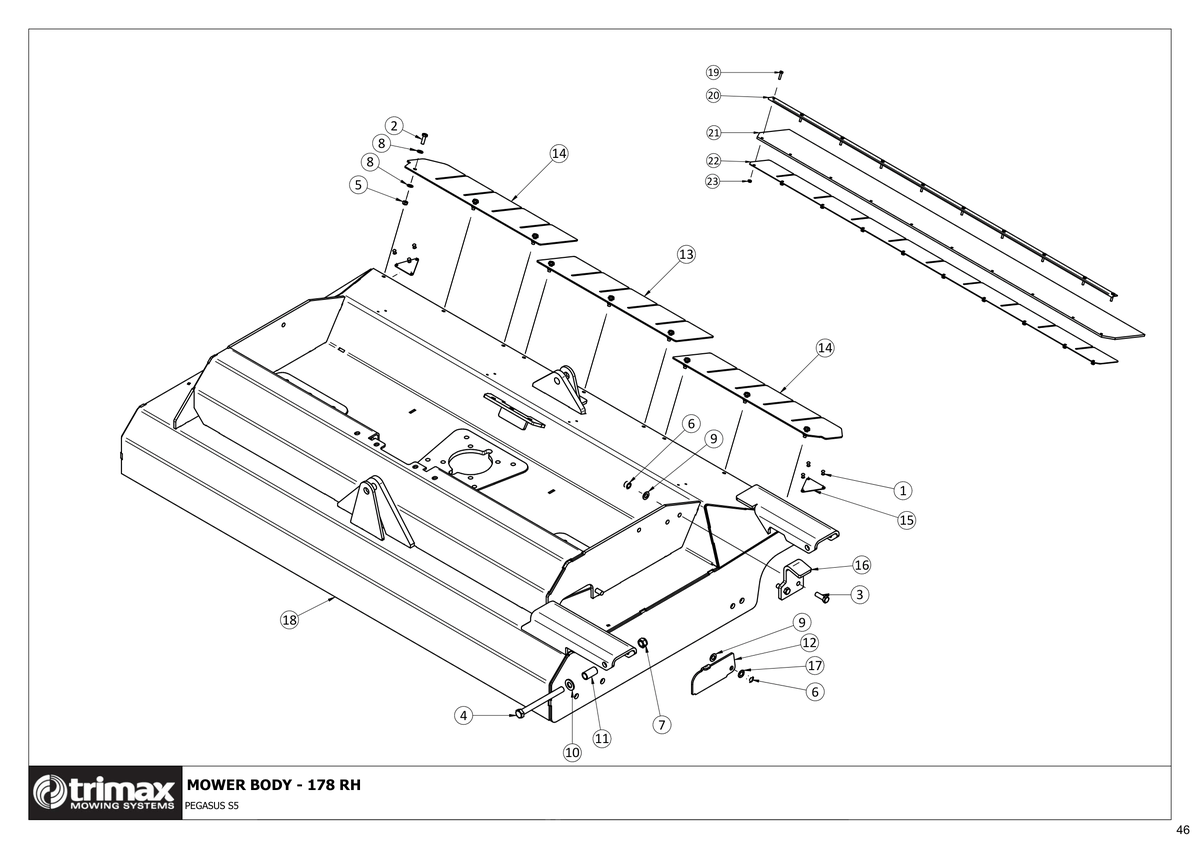

781 - Pegasus S5 493 - Mower Body Assembly 178 RH

Pegasus S5 493

Grouped product items
No.	Product Name	Price
1	Blind Rivet 213-443-250 More Info >	€0.33
2	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	€0.74
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
4	Bolt - Hex Head - M16 x 170 - Trimax Specification 301-616-173	€8.22
5	Nut - Nyloc 307-208-056 More Info >	€0.61
6	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
7	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
8	Washer - Flat 308-080-016 More Info >	€0.37
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
10	Washer - Heavy Flat 308-160-063 More Info >	€0.67
11	Bush - Lock Inner SS 402-000-173 More Info >	€32.14
12	Wash Panel - RH 410-000-134 More Info >	€22.04
13	Rear Flap - Inner - Procut S5 410-000-461 More Info >	€63.24
14	Rear Flap - Outer - Procut S5 410-000-463 More Info >	€29.17
15	Cap Plate 417-001-024 More Info >	€2.68
17	Washer - Crinkle 450-000-116 More Info >	€1.28
18	Body Weldment - Pegasus S5 178 RH 502-000-203 More Info >	Price on Request
19	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	€0.49
20	Clamp Strip - Safety Flap 178 410-841-200 More Info >	€44.02
21	Safety Flap - Deck - Rear 178 410-841-120 More Info >	€44.02
22	Anti-Droop Strip - Safety Flap 178 410-000-298 More Info >	€66.35
23	Nut - Nyloc 307-206-053 More Info >	€0.37
