780 - Snake S3 - Transport System 120

Name: Roll Pin [202-447-980]

SKU#: 202-447-980

Price:

€2.08

Name: Grease Nipple [208-442-650]

SKU#: 208-442-650

Price:

€2.86

Name: Bolt [301-216-603]

SKU#: 301-216-603

Price:

€3.75

Name: Cap Screw [303-210-353]

SKU#: 303-210-353

Price:

€1.55

Name: Nut Nyloc [307-122-053]

SKU#: 307-122-053

Price:

€8.93

Name: Nut - Plain [307-210-013]

SKU#: 307-210-013

Price:

€0.48

Name: Nut - Half [307-212-023]

SKU#: 307-212-023

Price:

€1.13

Name: Nut - Plain [307-216-013]

SKU#: 307-216-013

Price:

€1.13

Name: Washer - Spring [308-100-043]

SKU#: 308-100-043

Price:

€0.36

Name: Washer - Heavy Flat [308-100-063]

SKU#: 308-100-063

Price:

€0.36

Name: Washer - Heavy Flat [308-160-063]

SKU#: 308-160-063

Price:

€0.65

Name: Washer - Nordloc [308-160-083]

SKU#: 308-160-083

Price:

€3.45

Name: Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063]

SKU#: 308-240-063

Price:

€1.49

Name: Bearing Assembly - Titan [401-000-035]

SKU#: 401-000-035

Price:

€228.00

Name: Scraper [404-000-057]

SKU#: 404-000-057

Price:

€47.84

Name: Height Adjuster Block [412-000-255]

SKU#: 412-000-255

Price:

€47.48

Name: Height Indicator - Metric [412-000-256]

SKU#: 412-000-256

Price:

€32.01

Name: Set Screw [412-000-609]

SKU#: 412-000-609

Price:

€5.60

Name: Side Channel Weldment - Titan LH Powder Coated [412-000-790]

SKU#: 412-000-790

Price:

€330.23

Name: Side Channel Weldment - Titan RH Powder Coated [412-000-791]

SKU#: 412-000-791

Price:

€330.23

Name: Skid - Anti-Bounce Inc. Bolts - Powder Coated - Snake S3 [412-000-803]

SKU#: 412-000-803

Price:

Price on Request

Name: Collar - Height Adjuster [412-850-260]

SKU#: 412-850-260

Price:

€16.50

Name: Roller Weldment - Snake S3 120 Titan Powder Coated [414-000-191]

SKU#: 414-000-191

Price:

€529.98

Name: Kit - Height Adjuster Rod and Collar [412-000-649]

SKU#: 412-000-649

Price:

€23.60

Part #	Number on image	Usage Notes
404-000-057	15	OPTION – Roller Scraper optional add-on
412-000-803	21	OPTION – Anti-Bounce Skid optional add-on

Trimax Parts Shop.

Trimax Kits

Quick Order

Trimax Customer Centre.

Identify your Mower

Customer App

Trimax Dealer Centre.

Dealer App

Trimax Academy

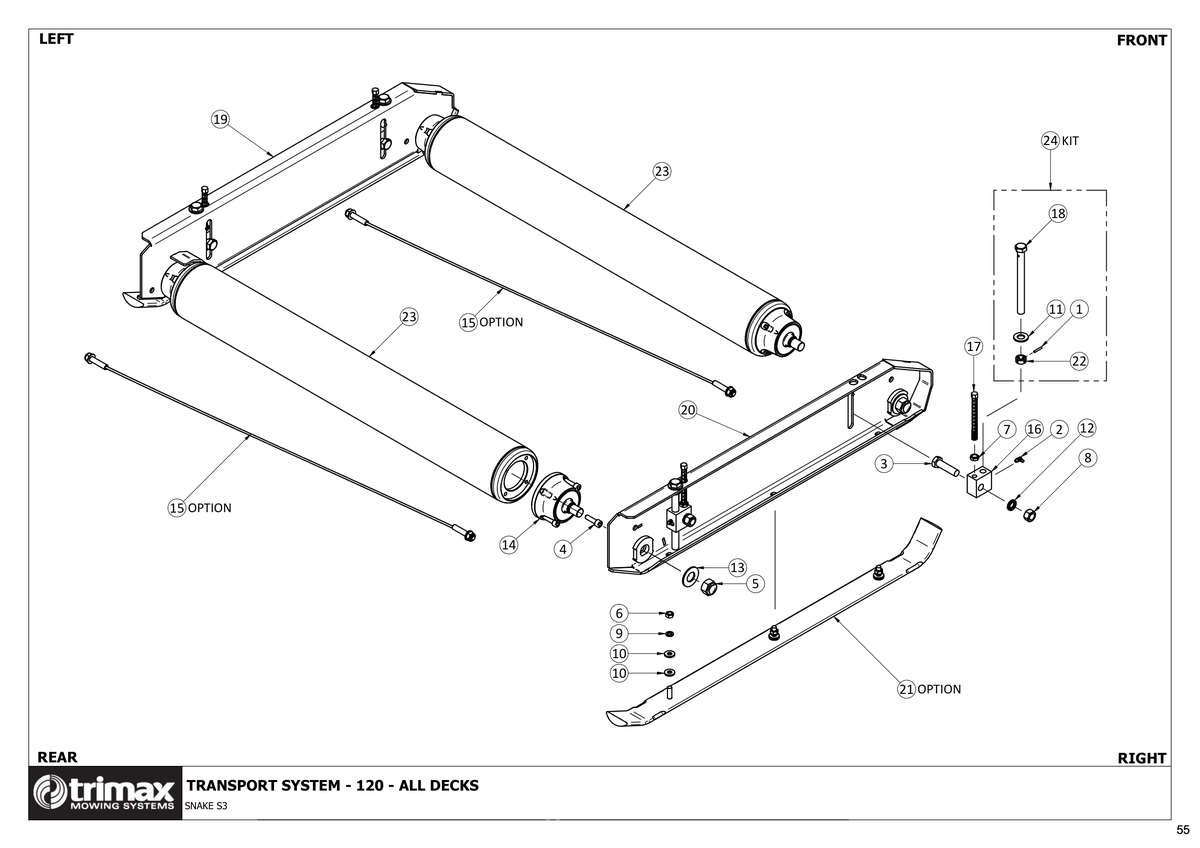

780 - Snake S3 - Transport System 120

No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	€2.08
2	Grease Nipple 208-442-650 More Info >	€2.86
3	Bolt 301-216-603 More Info >	€3.75
4	Cap Screw 303-210-353 More Info >	€1.55
5	Nut Nyloc 307-122-053 More Info >	€8.93
6	Nut - Plain 307-210-013 More Info >	€0.48
7	Nut - Half 307-212-023 More Info >	€1.13
8	Nut - Plain 307-216-013 More Info >	€1.13
9	Washer - Spring 308-100-043 More Info >	€0.36
10	Washer - Heavy Flat 308-100-063 More Info >	€0.36
11	Washer - Heavy Flat 308-160-063 More Info >	€0.65
12	Washer - Nordloc 308-160-083 More Info >	€3.45
13	Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063 More Info >	€1.49
14	Bearing Assembly - Titan 401-000-035 More Info >	€228.00
15	Scraper i See notes section for usage notes on this part 404-000-057 More Info >	€47.84
16	Height Adjuster Block 412-000-255 More Info >	€47.48
17	Height Indicator - Metric 412-000-256 More Info >	€32.01
18	Set Screw 412-000-609 More Info >	€5.60
19	Side Channel Weldment - Titan LH Powder Coated 412-000-790 More Info >	€330.23
20	Side Channel Weldment - Titan RH Powder Coated 412-000-791 More Info >	€330.23
21	Skid - Anti-Bounce Inc. Bolts - Powder Coated - Snake S3 i See notes section for usage notes on this part 412-000-803	Price on Request
22	Collar - Height Adjuster 412-850-260 More Info >	€16.50
23	Roller Weldment - Snake S3 120 Titan Powder Coated 414-000-191 More Info >	€529.98
24	Kit - Height Adjuster Rod and Collar 412-000-649 More Info >	€23.60
