NOTES:

Part #	Number on image	Usage Notes
418-000-966	16	Quantity varies by market use as required to minimise lock arm side play Quantity varies by market use as required to minimise lock arm side play

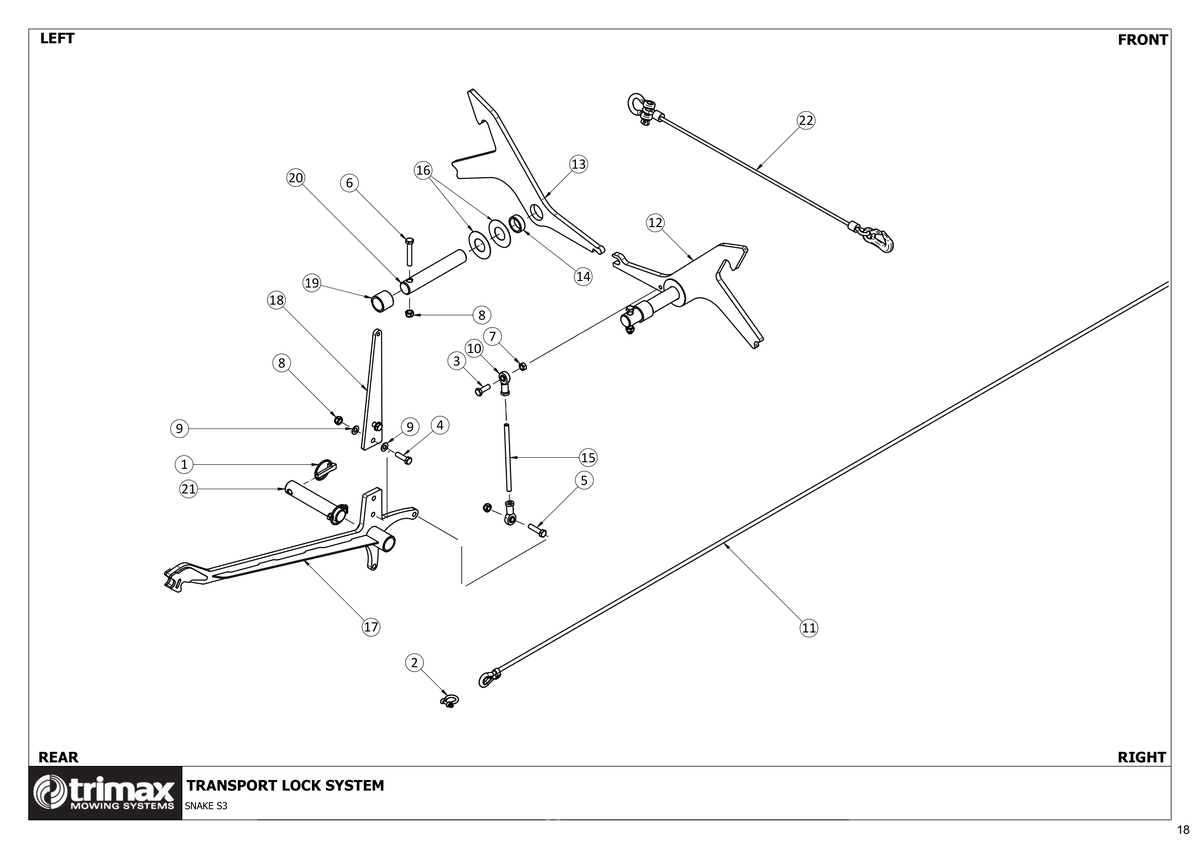

780 - Snake S3 - Transport Lock System

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Linch Pin 203-300-700 More Info >	€1.16
2	D-Shackle 214-446-250 More Info >	€7.29
3	Bolt 301-210-303 More Info >	€0.92
4	Bolt 301-210-353 More Info >	€1.04
5	Bolt 301-210-403 More Info >	€1.14
6	Bolt 301-210-653 More Info >	€2.06
7	Nut - Plain 307-210-013 More Info >	€0.49
8	Nut - Nyloc 307-210-053 More Info >	€0.61
9	Washer - Flat 308-100-013 More Info >	€0.37
10	Bearing 401-840-800 More Info >	€23.99
11	Release Rope Assembly 4.5m 404-000-125 More Info >	€39.64
12	Hook 418-000-467 More Info >	€148.30
13	Hook 418-000-469 More Info >	€148.30
14	Bush 418-000-470 More Info >	€23.99
15	Tie Rod 418-000-536 More Info >	€12.15
16	Shim - Outrigger Hinge SS 0.9mm ↨ 70mmØ OD 33mmØ ID i See notes section for usage notes on this part 418-000-966 More Info >	€7.74
17	Rear Lock Weldment - Powder Coated Snake S3 418-001-062 More Info >	€297.09
18	Rear Lock Top - Powder Coated - Snake S3 418-001-063 More Info >	€39.62
20	Pin - Hydraulic Cylinder 419-000-034 More Info >	€19.55
21	Pin - Hydraulic Cylinder 419-000-035 More Info >	€18.33
22	Safety Rope Assembly 506-000-079 More Info >	€50.63
