NOTES:

Part #	Number on image	Usage Notes
504-000-181		Spindle repair kit available as part number 407-000-028 Spindle repair kit available as part number 407-000-028

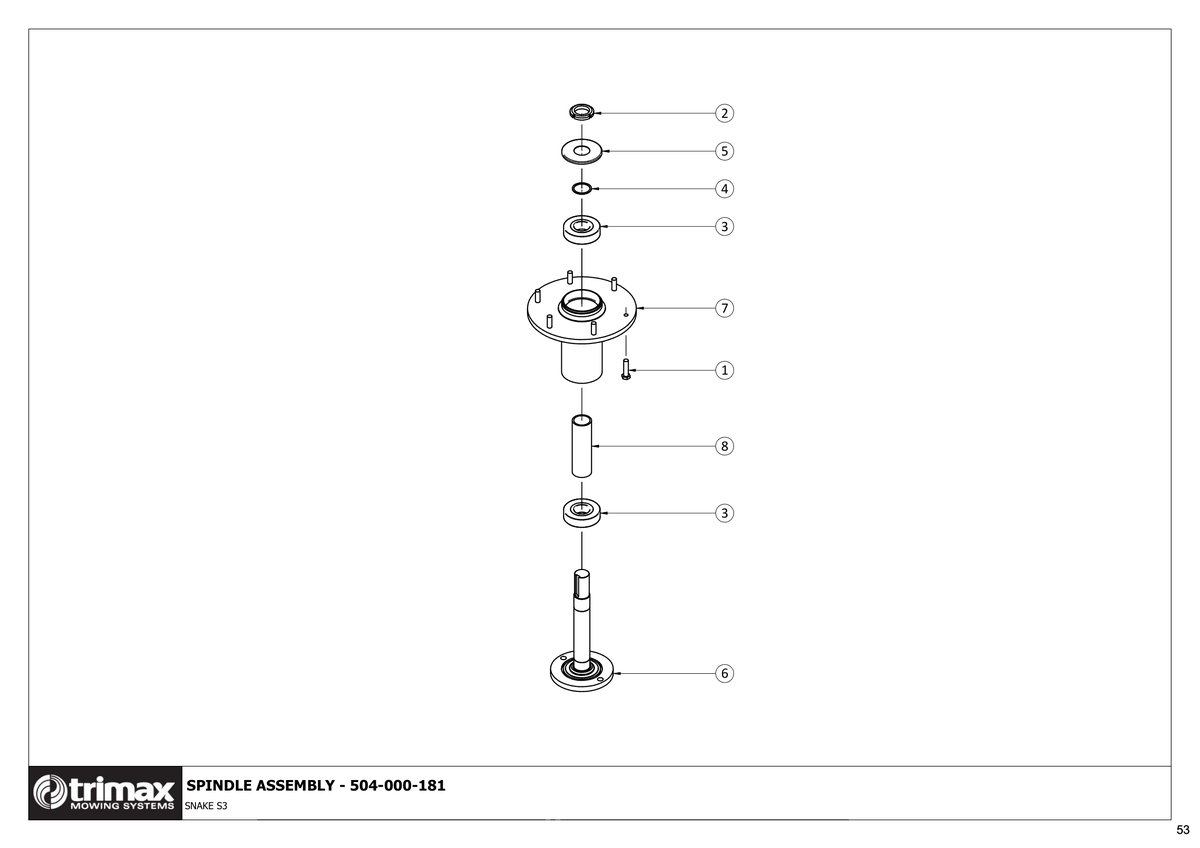

780 - Snake S3 - Spindle Assembly

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
	Spindle Assembly - With Keyway - Snake S3 Painted i See notes section for usage notes on this part 504-000-181 More Info >	€715.45
1	Set Screw 313-210-403 More Info >	€1.89
2	Lock Nut 401-021-750 More Info >	€10.26
3	Bearing 401-022-780 More Info >	€44.14
4	Shim 407-000-029 More Info >	€7.17
5	Cap - Spindle Type 5a and 6e 407-329-001 More Info >	€11.05
