NOTES:

Part # Number on image Usage Notes
410-000-363 36
  • For Clutch Cover with Brushes included use P/N 410-000-371
  • For Clutch Cover with Brushes included use P/N 410-000-371
410-000-370 42
  • For Clutch Cover with Brushes included use P/N 410-000-371
  • For Clutch Cover with Brushes included use P/N 410-000-371
421-000-567 56
  • Includes wiring
  • Includes wiring

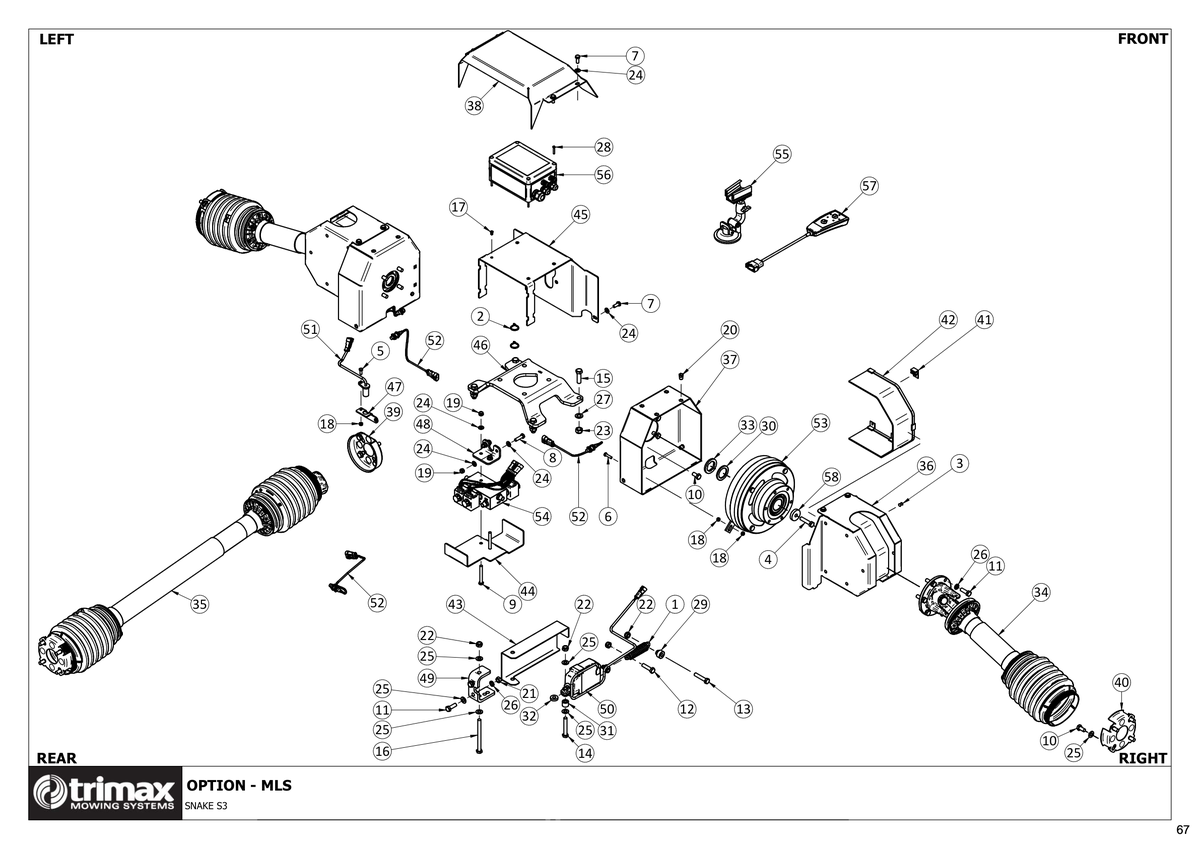

780 - Snake S3 - MLS

Snake S3 320, Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Spring - Tension [207-000-008] Spring - Tension 207-000-008
€55.95
2 Cable Tie [210-900-014] Cable Tie 210-900-014
Price on Request
3 Blind Rivet [213-443-250] Blind Rivet 213-443-250
€0.33
4 Bolt [301-110-453] Bolt 301-110-453
€2.45
5 Bolt [301-206-163] Bolt 301-206-163
€0.43
6 Bolt [301-206-253] Bolt 301-206-253
€0.49
7 Bolt [301-208-203] Bolt 301-208-203
€0.67
8 Bolt [301-208-303] Bolt 301-208-303
€0.90
9 Bolt [301-208-653] Bolt 301-208-653
€1.30
10 Bolt [301-210-203] Bolt 301-210-203
€0.67
11 Bolt [301-210-303] Bolt 301-210-303
€0.92
12 Bolt [301-210-403] Bolt 301-210-403
€1.14
13 Bolt [301-210-503] Bolt 301-210-503
€1.46
14 Bolt [301-210-653] Bolt 301-210-653
€2.06
15 Bolt [301-212-403] Bolt 301-212-403
€1.77
16 Bolt [301-610-123] Bolt 301-610-123
€3.65
17 Nut - Rivnut M4 ZP [307-204-413] Nut - Rivnut M4 ZP 307-204-413
€0.95
18 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
€0.37
19 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
€0.61
20 Nut - Rivnut M8 ZP [307-208-413] Nut - Rivnut M8 ZP 307-208-413
€1.06
21 Nut - Plain [307-210-013] Nut - Plain 307-210-013
€0.49
22 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
€0.61
23 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
€0.61
24 Washer - Flat [308-080-013] Washer - Flat 308-080-013
€0.37
25 Washer - Flat [308-100-013] Washer - Flat 308-100-013
€0.37
26 Washer - Spring [308-100-043] Washer - Spring 308-100-043
€0.37
27 Washer - Flat [308-120-013] Washer - Flat 308-120-013
€0.37
28 Pan Head Machine Screw - Philips M4 x 25 SS 304 [315-204-256] Pan Head Machine Screw - Philips M4 x 25 SS 304 315-204-256
€0.45
29 Bush [402-000-097] Bush 402-000-097
€13.48
30 Thrust Washer [402-000-104] Thrust Washer 402-000-104
€29.26
31 Bush - Lock Actuator [402-000-106] Bush - Lock Actuator 402-000-106
€15.24
32 Bush - Lock Actuator [402-000-107] Bush - Lock Actuator 402-000-107
€13.18
33 Spacer - 6 Spline Spacer Washer [402-000-113] Spacer - 6 Spline Spacer Washer 402-000-113
€18.07
34 PTO Shaft Assembly - Splined 400mm 6 Bolt Flange [406-000-038] PTO Shaft Assembly - Splined 400mm 6 Bolt Flange 406-000-038
€436.03
35 PTO Shaft Assembly - Splined [406-000-054] PTO Shaft Assembly - Splined 406-000-054
€509.94
36 Weldment - Clutch Cover - Snake MLS [410-000-363] Weldment - Clutch Cover - Snake MLS i See notes section for usage notes on this part 410-000-363
€334.70
37 Folding - Clutch Cover Back - Snake MLS [410-000-364] Folding - Clutch Cover Back - Snake MLS 410-000-364
€391.17
38 Folding - Enclosure Cover - Snake MLS [410-000-365] Folding - Enclosure Cover - Snake MLS 410-000-365
€101.93
39 Mounting Plate - 125mm Flex Cone incl Sensor Cutout [410-000-367] Mounting Plate - 125mm Flex Cone incl Sensor Cutout 410-000-367
€18.28
40 Mounting Plate - 125mm Flex Cone (Bolt Cutouts) [410-000-368] Mounting Plate - 125mm Flex Cone (Bolt Cutouts) 410-000-368
€18.28
41 Extrusion - Brush Mounting [410-000-369] Extrusion - Brush Mounting 410-000-369
€1.79
42 Brush - Clutch Cover [410-000-370] Brush - Clutch Cover i See notes section for usage notes on this part 410-000-370
€22.26
43 Cover - Unlock Actuator - Snake S3 - Powder Coated [410-000-569] Cover - Unlock Actuator - Snake S3 - Powder Coated 410-000-569
€30.95
44 Mount Bracket Folding [418-000-398] Mount Bracket Folding 418-000-398
€34.77
45 Folding - Enclosure Mount - Snake MLS [418-000-785] Folding - Enclosure Mount - Snake MLS 418-000-785
€63.68
46 Folding - Gearbox Mount - Snake [418-000-786] Folding - Gearbox Mount - Snake 418-000-786
€28.17
47 Folding - PTO Sensor Mount - Snake MLS [418-000-787] Folding - PTO Sensor Mount - Snake MLS 418-000-787
€7.47
48 Mount Bracket Folding - Valve Bank - Snake [418-000-788] Mount Bracket Folding - Valve Bank - Snake 418-000-788
€11.31
49 Mount Bracket - Unlock Actuator - Snake S3 - Powder Coated [418-001-089] Mount Bracket - Unlock Actuator - Snake S3 - Powder Coated 418-001-089
€17.98
50 Actuator Assembly [421-000-093] Actuator Assembly 421-000-093
€593.38
51 Sensor & Cable Assembly - PTO Sensor - MLS [421-000-117] Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117
€114.85
52 Sensor & Cable Assembly - Prox Sensor - MLS [421-000-118] Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118
€114.85
53 Clutch & Plug Assembly - MLS [421-000-138] Clutch & Plug Assembly - MLS 421-000-138
€1,856.12
54 Valve bank and superseal plug assembly - Rear valve NC for Snake MLS [421-000-168] Valve bank and superseal plug assembly - Rear valve NC for Snake MLS 421-000-168
€2,587.37
55 Cab Controller Mount Assembly - MLS [421-000-172] Cab Controller Mount Assembly - MLS 421-000-172
€121.96
56 Control box - MLS with Drive Protect - Snake S2 (v3) [421-000-567] Control box - MLS with Drive Protect - Snake S2 (v3) i See notes section for usage notes on this part 421-000-567
€656.51
57 Cab Controller Assembly - MLS with Drive Protect [421-000-612] Cab Controller Assembly - MLS with Drive Protect 421-000-612
€255.68
58 Retaining Washer - Electric Clutch [450-844-160] Retaining Washer - Electric Clutch 450-844-160
€15.49
