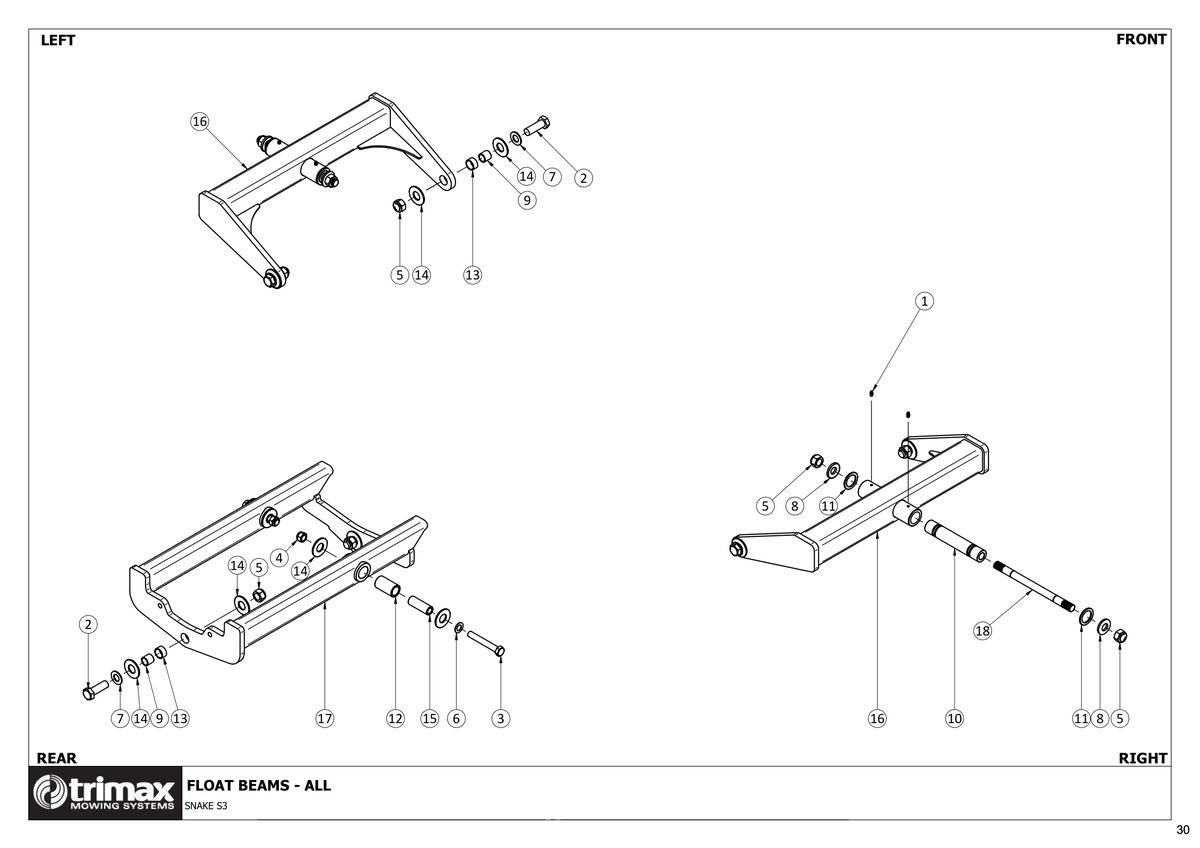

780 - Snake S3 - Float Beam Assembly All

Snake S3 320, Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-600] Grease Nipple 208-442-600
€2.25
2 Bolt [301-220-603] Bolt 301-220-603
€5.96
3 Bolt [301-616-113] Bolt 301-616-113
€5.54
4 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
€1.34
5 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
€1.59
6 Washer - Flat [308-160-013] Washer - Flat 308-160-013
€2.37
7 Washer - Flat [308-200-013] Washer - Flat 308-200-013
€0.98
8 Washer - Conical Spring M20 Zp [308-200-093] Washer - Conical Spring M20 Zp 308-200-093
€5.10
9 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
€15.43
10 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
€152.80
12 Bush [402-000-079] Bush 402-000-079
€41.65
13 Bush - Composite [402-000-093] Bush - Composite 402-000-093
€24.89
14 Thrust Washer [402-000-105] Thrust Washer 402-000-105
€14.09
15 Sleeve [402-840-580] Sleeve 402-840-580
€21.25
16 Side Float Beam Weldment - Snake S2 [418-000-688] Side Float Beam Weldment - Snake S2 418-000-688
€294.65
17 Float Beam Weldment - Rear - Powder Coated Snake S3 [418-001-055] Float Beam Weldment - Rear - Powder Coated Snake S3 418-001-055
€439.45
18 Pin - Pitch Pivot [419-000-069] Pin - Pitch Pivot 419-000-069
€60.74
