NOTES:

Part #	Number on image	Usage Notes
403-000-091	23	Pulley and 2x Bearing 1x Circlip 1x Washer
403-000-192	25	Idler Arm and 2x Bearing 1x Circlip 1x Washer
403-000-167	34	Kit consists of 2x Bearing 1x Circlip 1x Washer

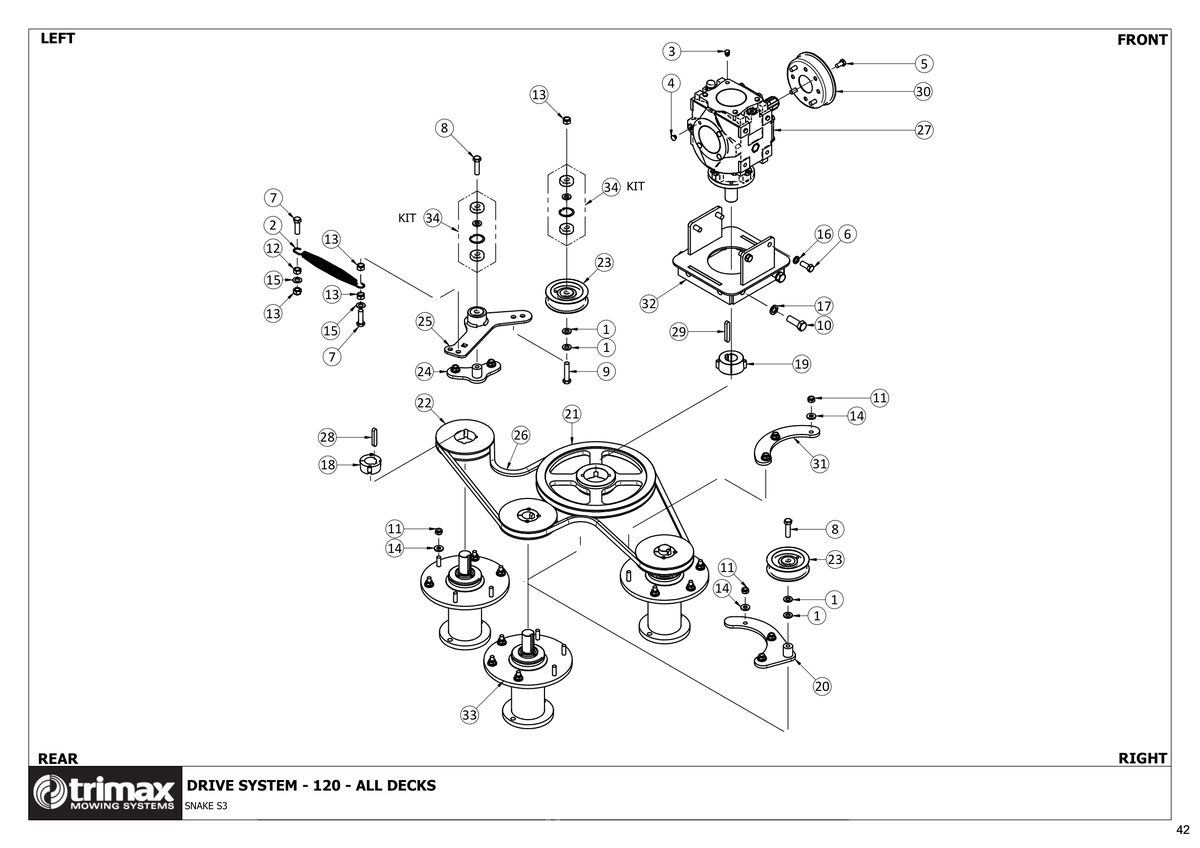

780 - Snake S3 - Drive System 120 All Decks

Snake S3 320

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Spring - Tension 207-000-009 More Info >	€14.29
3	Blanking Plug 209-900-012 More Info >	€1.04
4	Blanking Plug 209-900-014 More Info >	€2.98
5	Bolt 301-210-203 More Info >	€0.67
6	Bolt 301-212-303 More Info >	€1.46
7	Bolt 301-212-403 More Info >	€1.77
8	Bolt 301-212-453 More Info >	€1.89
9	Bolt 301-212-553 More Info >	€2.61
10	Bolt 301-216-453 More Info >	€3.89
11	Nut - Nyloc 307-210-053 More Info >	€0.61
12	Nut - Plain 307-212-013 More Info >	€0.92
13	Nut - Nyloc 307-212-053 More Info >	€0.61
14	Washer - Heavy Flat 308-100-063 More Info >	€0.37
15	Washer - Flat 308-120-013 More Info >	€0.37
16	Washer - Spring 308-120-043 More Info >	€0.37
17	Washer 308-160-043 More Info >	€0.49
18	Bush - Taper Lock 402-000-078 More Info >	€15.49
19	Bush 402-000-083 More Info >	€18.76
20	Idler Tower 403-000-076 More Info >	€64.28
21	Pulley 403-000-081 More Info >	€168.94
22	Pulley - Taper Lock 403-000-083 More Info >	€58.34
23	Pulley Assembly i See notes section for usage notes on this part 403-000-091 More Info >	€89.27
24	Idler Base Weldment - Short 403-000-110 More Info >	€51.91
25	Idler Arm - Assembly - Snake S3 i See notes section for usage notes on this part 403-000-192 More Info >	€159.89
26	Vee Belt 404-040-962 More Info >	€48.45
27	Gearbox 405-000-015 More Info >	€672.25
29	Key - Gearbox 405-207-154 More Info >	€9.17
30	Mounting Plate 410-000-258 More Info >	€32.30
31	Plate 417-001-002 More Info >	€40.07
32	Gearbox Mount Weldment 417-001-364 More Info >	€219.08
33	Spindle Assembly - With Keyway - Snake S3 Painted 504-000-181 More Info >	€715.45
34	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	€23.71
