NOTES:

Part #	Number on image	Usage Notes
406-000-081	7	PTO Shaft 406-000-081 include PTO Shaft 406-000-001 and PTO Decal. PTO Shaft 406-000-081 include PTO Shaft 406-000-001 and PTO Decal.

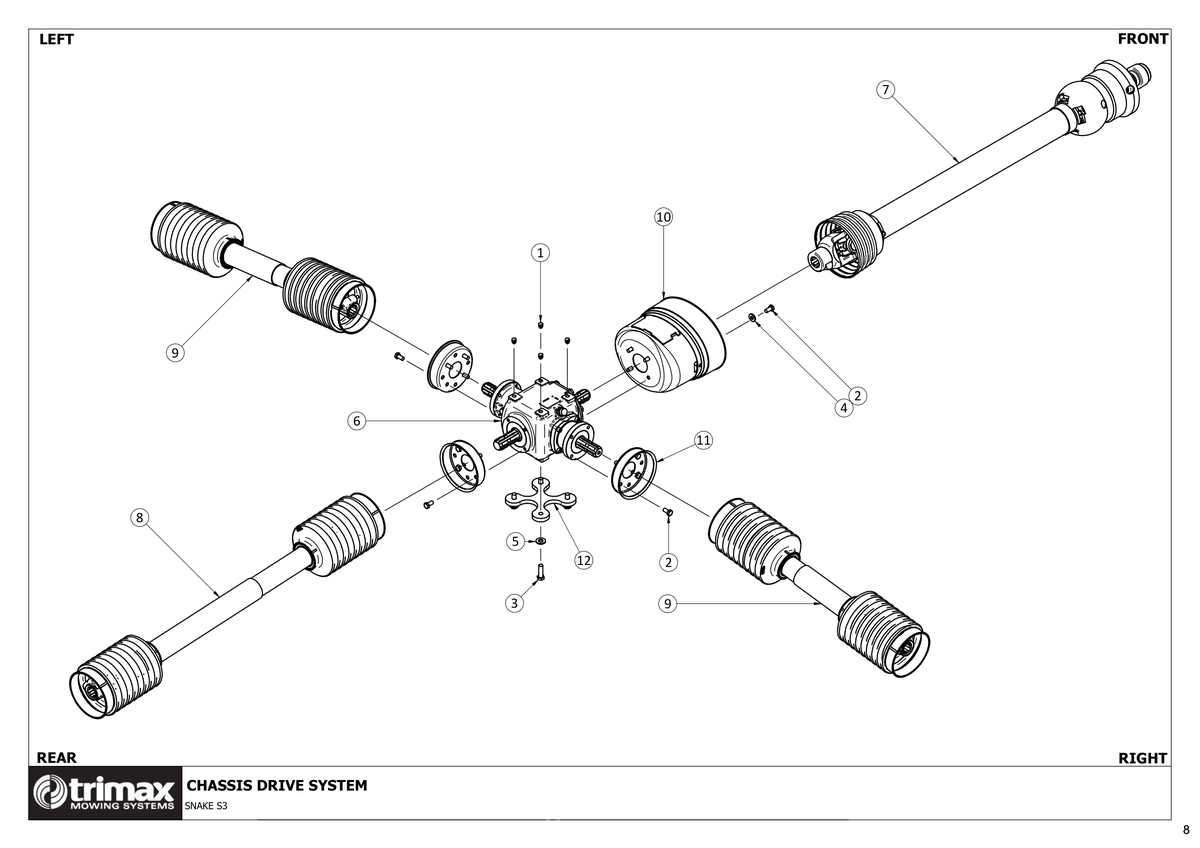

780 - Snake S3 - Chassis Drive System

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-012 More Info >	€1.04
2	Bolt 301-210-203 More Info >	€0.67
3	Bolt 301-212-403 More Info >	€1.77
4	Washer - Heavy Flat 308-100-063 More Info >	€0.37
5	Washer - Heavy Flat 308-120-063 More Info >	€0.37
6	Gearbox 405-000-021 More Info >	€998.68
7	PTO Shaft - T60 Z6 Assembly i See notes section for usage notes on this part 406-000-081	€1,036.40
8	PTO Shaft 406-000-017 More Info >	€352.51
9	PTO Shaft 406-000-018 More Info >	€271.72
10	PTO Cone - Wide angle 410-000-257 More Info >	€42.01
11	Mounting Plate 410-000-258 More Info >	€32.30
12	Spacer Plate 418-000-534 More Info >	€114.50
