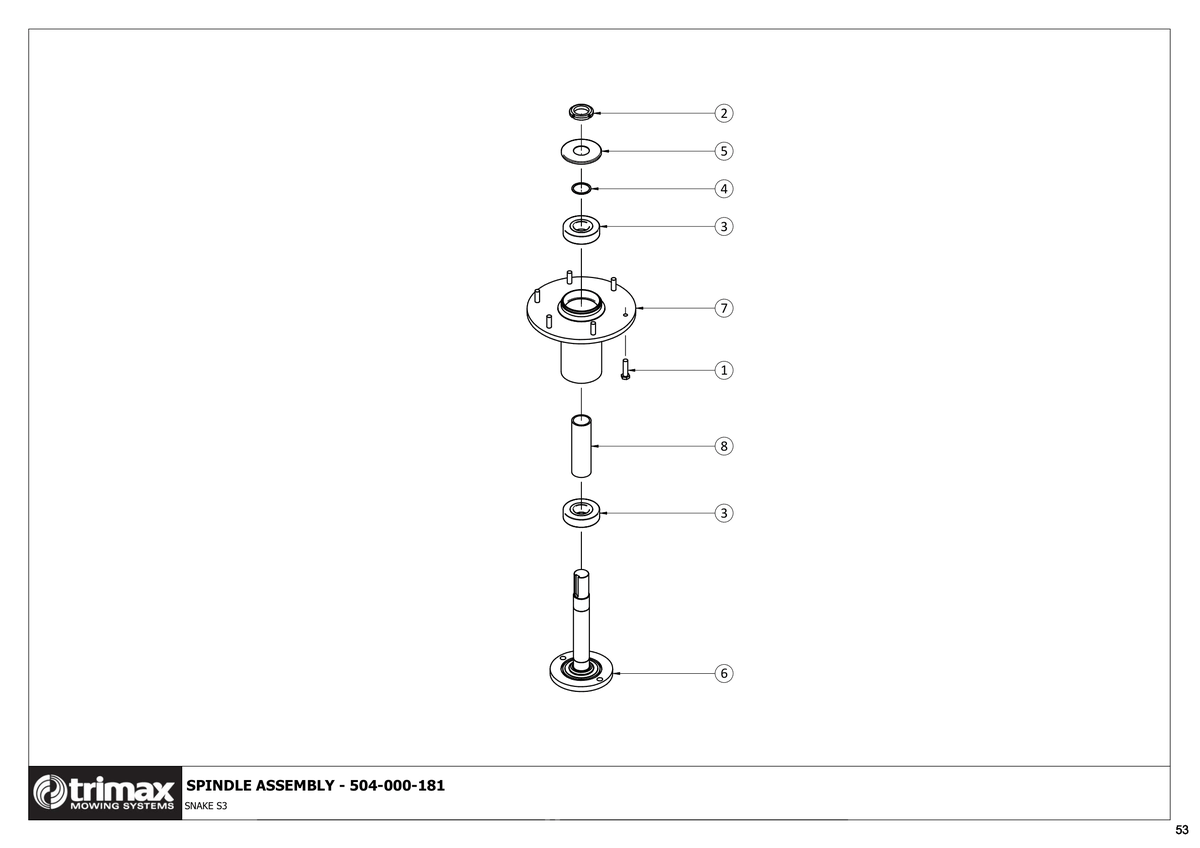

780 - Snake S3 - 400 - Spindle Assembly

Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Set Screw [313-210-403] Set Screw 313-210-403
€1.89
2 Lock Nut [401-021-750] Lock Nut 401-021-750
€10.26
3 Bearing - Trimax Specification - [401-022-780] Bearing - Trimax Specification - 401-022-780
€44.52
4 Shim [407-000-029] Shim 407-000-029
€7.17
5 Cap - Spindle Type 5a and 6e [407-329-001] Cap - Spindle Type 5a and 6e 407-329-001
€11.05
6 Spindle Shaft Weldment - With Keyway - Snake S3 [504-000-182] Spindle Shaft Weldment - With Keyway - Snake S3 504-000-182
Price on Request
7 Spindle Housing Weldment - Snake S3 [504-000-183] Spindle Housing Weldment - Snake S3 504-000-183
Price on Request
8 Spacer - Spindle [504-000-184] Spacer - Spindle 504-000-184
Price on Request
