NOTES:

Part #	Number on image	Usage Notes
412-000-725	24	412-000-725 - Height Adj. Screw Assy - Wing Outer w Collar/Pin 180mm ST3. Individual parts: 412-000-609 - Set Screw - M16 x 180 ZP 8.8 - Stealth S3 Wings; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.

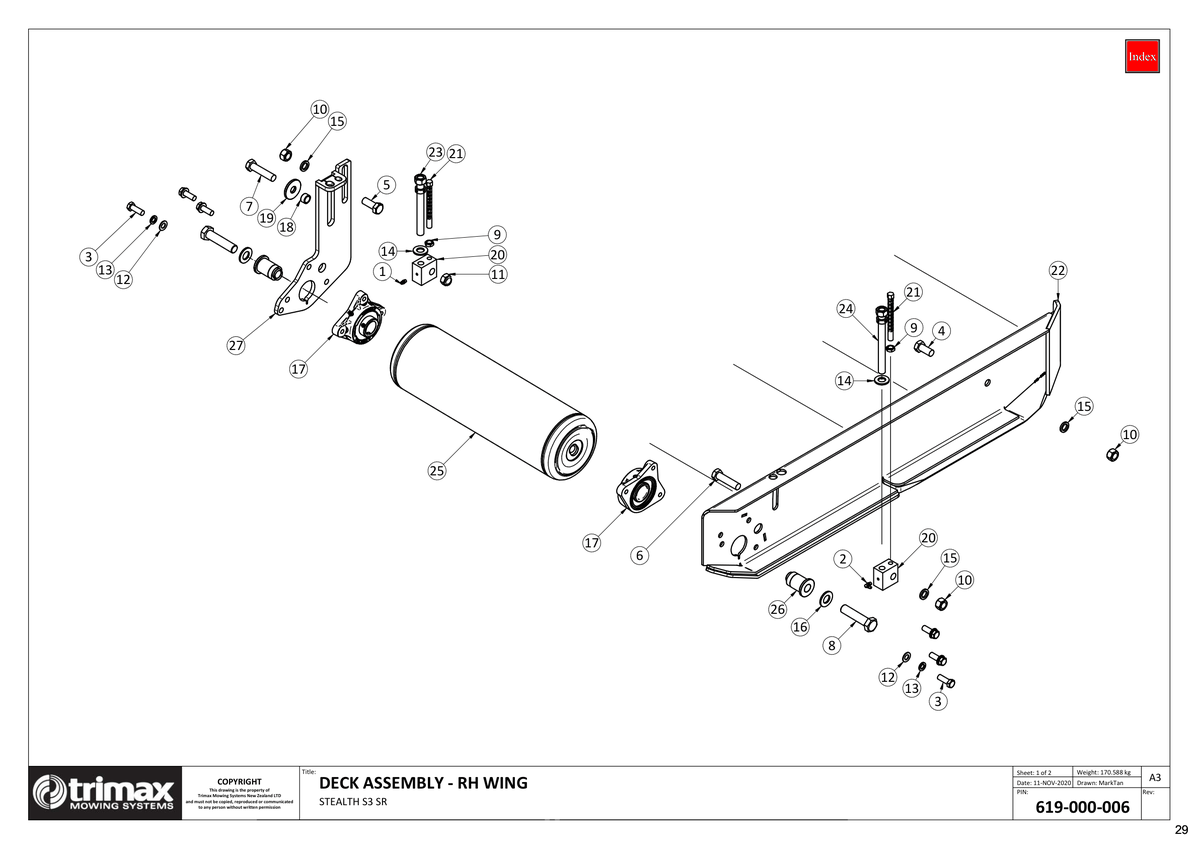

758 - Stealth S3 SR 340 - RH Wing Transport System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
2	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
4	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	€2.98
5	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	€3.04
6	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
8	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	€8.56
9	Nut - Half 307-212-023 More Info >	€1.16
10	Nut - Plain 307-216-013 More Info >	€1.16
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
12	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
14	Washer - Heavy Flat 308-160-063 More Info >	€0.67
15	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
16	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
17	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	€70.24
18	Spacer Tube 402-000-091 More Info >	€14.29
19	Heavy Washer 402-840-560 More Info >	€20.22
20	Height Adjuster Block 412-000-255 More Info >	€48.45
21	Height Indicator - Metric 412-000-256 More Info >	€32.67
24	Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725 More Info >	Price on Request
25	Roller Weldment - Rear Wing 414-000-075 More Info >	€508.03
26	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	€32.78
27	Roller Mount - Inner Wing RH 414-000-079 More Info >	€197.05
