NOTES:

Part #	Number on image	Usage Notes
417-001-155	19	Transport Lock Arm Spares Kit also available: 417-001-155 (AUS) Lock Arm Kit 460-000-208; Lock Arm 417-001-419 (Global) Lock Arm Kit 460-000-231

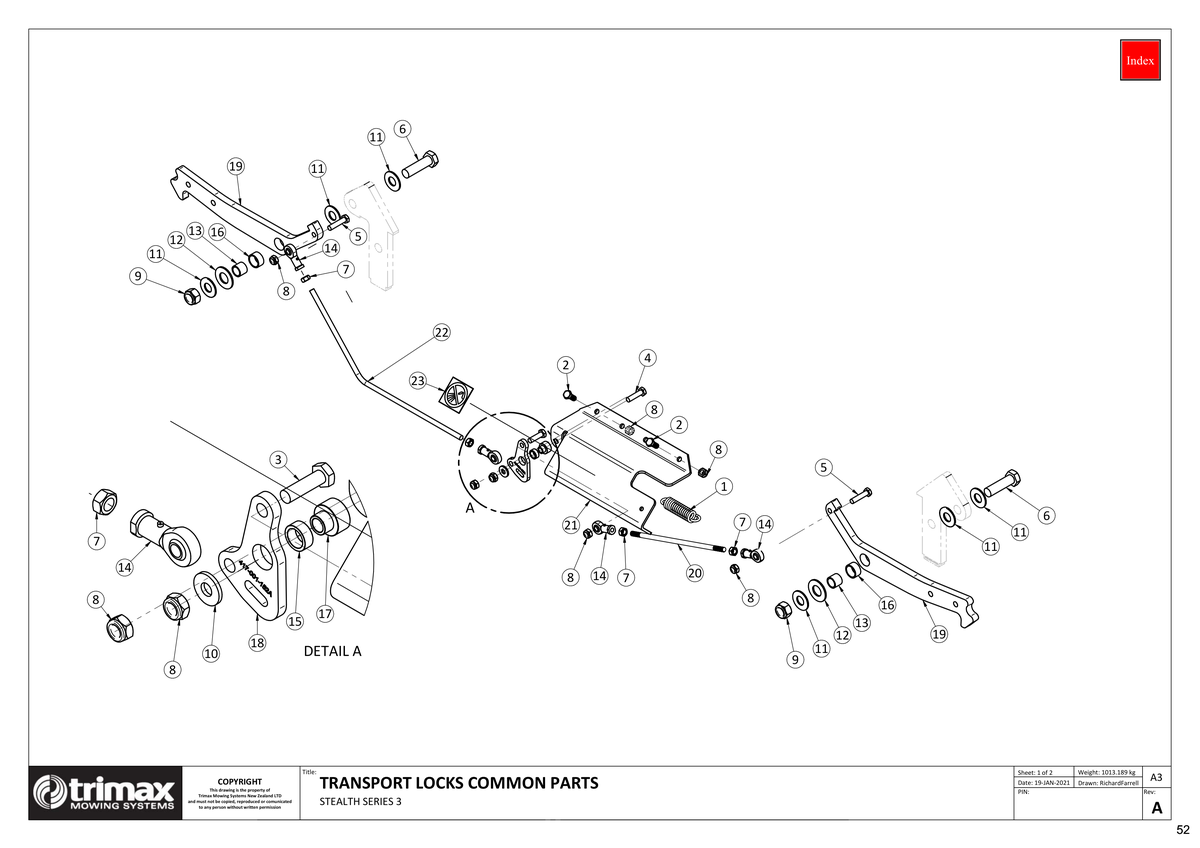

758 - Stealth S3 340 - Transport Lock Systems

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	€55.95
2	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	€0.85
3	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	€1.04
4	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	€1.14
5	Bolt - Hex Head - M10 x 45 - Trimax Specification 301-210-453 More Info >	€1.25
6	Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703 More Info >	€6.31
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	€0.49
8	Nut - Nyloc 307-210-053 More Info >	€0.61
9	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
10	Washer - Heavy Flat 308-100-063 More Info >	€0.37
11	Washer - Fender 308-200-073 More Info >	€0.61
12	Washer - Heavy Flat 308-270-063 More Info >	€1.65
13	Inner Ring 401-000-013 More Info >	€8.62
14	Bearing 401-840-800 More Info >	€23.99
15	Bush 402-000-092 More Info >	€13.06
16	Bush - Composite Pivot Bush 402-000-093 More Info >	€24.89
17	Bush 402-000-097 More Info >	€13.48
18	Pivot Plate 417-001-152 More Info >	€10.56
19	Plate - Transport Lock Arm (AUS) - Stealth S3 i See notes section for usage notes on this part 417-001-155 More Info >	€129.97
20	Tie Rod 417-001-179 More Info >	€9.48
23	Decal - Instruction - No Water Blasting 424-000-163 More Info >	Price on Request
