NOTES:

Part #	Number on image	Usage Notes
406-000-059	28	Previous models used a wire type PTO hanger part number 404-000-059 which can be replaced by the current one

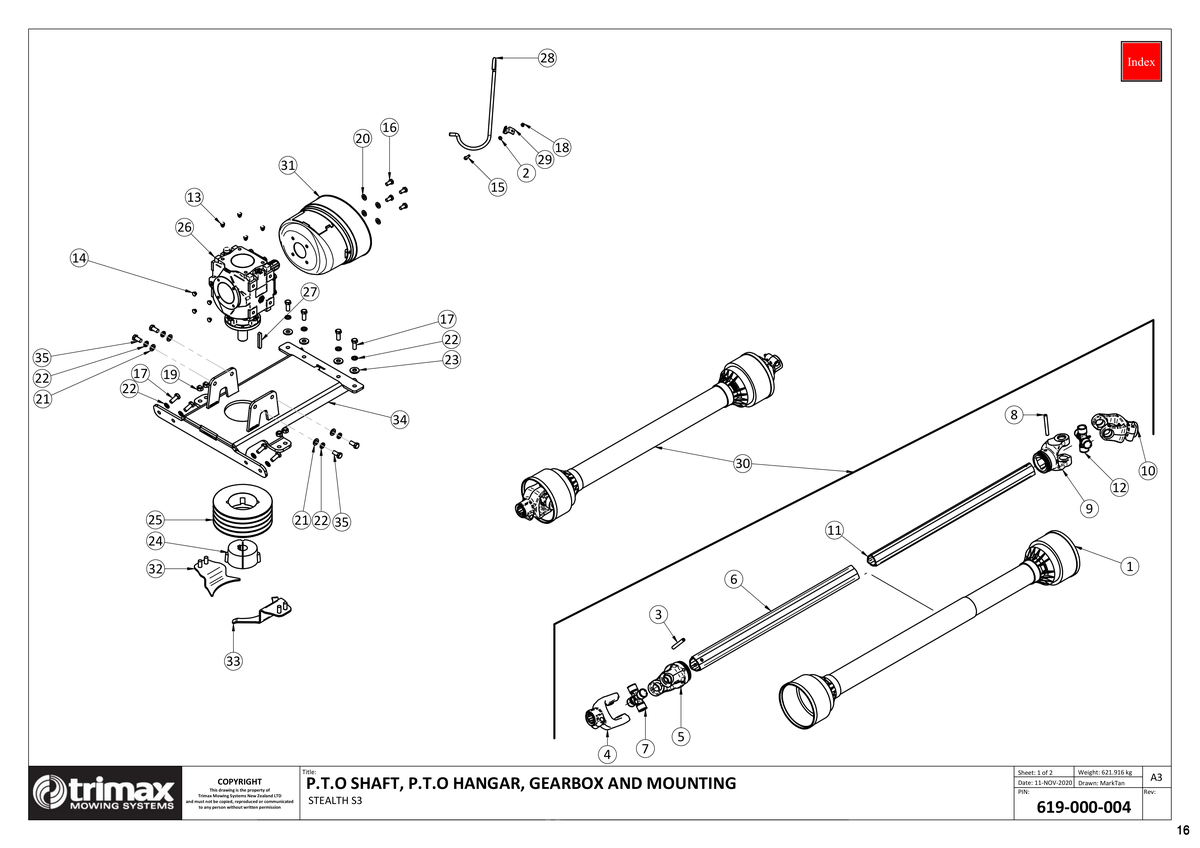

758 - Stealth S3 340 - PTO Shaft, PTO Hanger, Gearbox and Mounting

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	PTO Shaft - Cover Set 406-343-242 More Info >	€151.21
2	Roll Pin 202-343-700 More Info >	Price on Request
3	PTO Shaft - Yoke (Secure Lock Push Pin) 406-343-200 More Info >	€124.81
4	Yoke - Outer Profile - PTO Shaft 406-343-220 More Info >	€110.85
5	Tube - Outer Profile 406-343-240 More Info >	Price on Request
6	Universal Joint Cross - PTO Shaft 92x92x30 406-344-150 More Info >	€98.89
8	Yoke 403-343-210 More Info >	Price on Request
10	Tube - Inner Profile (45 X 4) Bypy T60 406-343-230 More Info >	Price on Request
12	Blanking Plug - M12 209-900-012 More Info >	€1.04
13	Blanking Plug 209-900-014 More Info >	€2.98
14	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	€0.49
15	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	€0.67
16	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
17	Nut - Nyloc 307-206-053 More Info >	€0.37
18	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
19	Washer - Flat 308-060-013 More Info >	€0.31
20	Washer - Flat 308-100-013 More Info >	€0.37
21	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
22	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
23	Washer - Heavy Flat 308-120-063 More Info >	€0.37
24	Bush - Taper Lock 402-060-680 More Info >	€50.33
25	Pulley - Taper Lock 403-361-270 More Info >	€151.76
26	Gearbox 405-000-015 More Info >	€672.25
27	Key - Gearbox 405-207-154 More Info >	€9.17
28	PTO Hanger i See notes section for usage notes on this part 406-000-059 More Info >	€41.28
29	Retainer Clip - PTO Hanger 406-000-060 More Info >	€9.11
30	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-870 More Info >	€370.73
31	PTO Cone - Wide angle - 52mm PCD 410-000-608 More Info >	€42.01
32	Gearbox Belt Retainer Weldment - Short 417-001-183 More Info >	€65.44
33	Gearbox Belt Retainer Weldment - Long 417-001-184 More Info >	€65.87
34	Gearbox Mount Welded Assembly 417-001-148 More Info >	€426.02
35	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
