NOTES:

Part #	Number on image	Usage Notes
409-448-730	9	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3
409-448-740	10	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3
409-448-750	19	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3

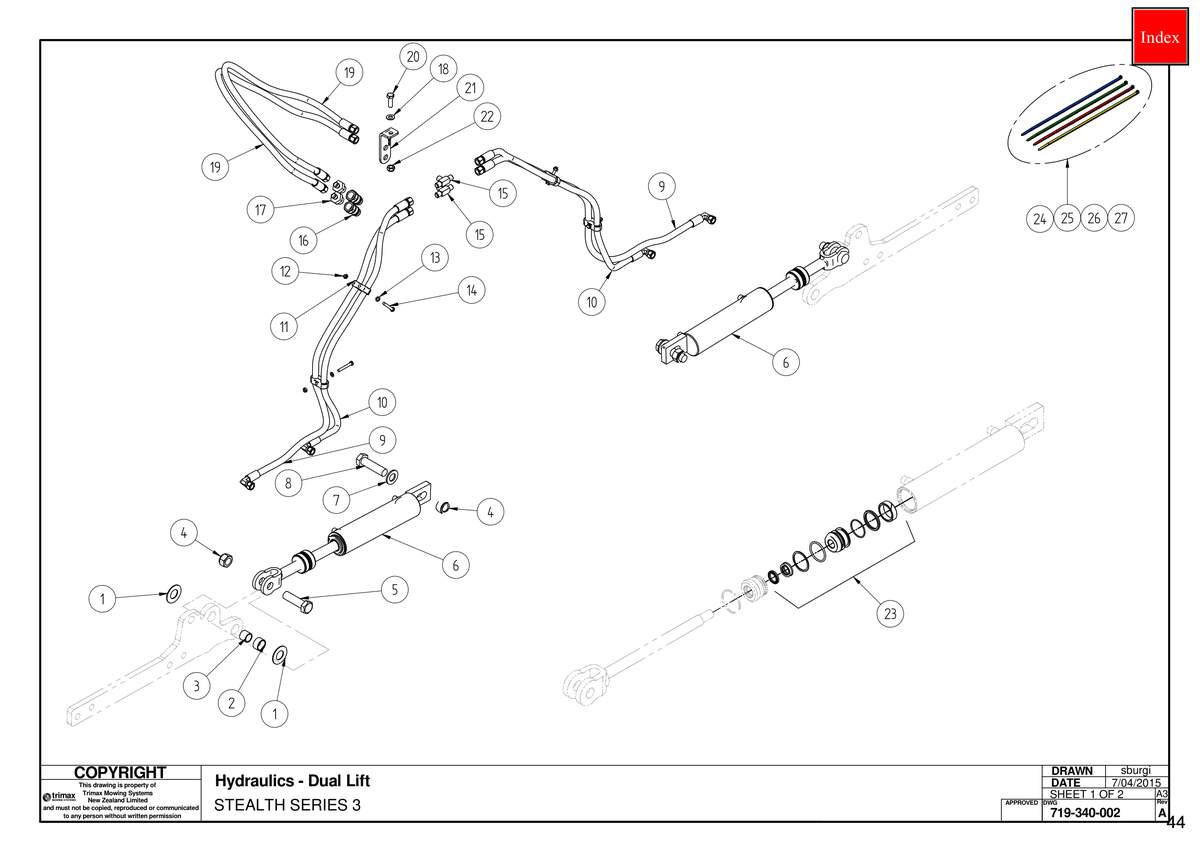

758 - Stealth S3 340 - Hydraulics - Dual Lift

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Washer - Nylon Thrust Washer - Trimax Specification 402-000-088 More Info >	€8.32
2	Bush - Composite Pivot Bush 402-000-093 More Info >	€24.89
3	Inner Ring 401-000-013 More Info >	€8.62
4	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
5	Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703 More Info >	€6.31
6	Lift Ram 409-000-073 More Info >	€567.69
7	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
8	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	€6.80
9	Hose Assembly i See notes section for usage notes on this part 409-448-730 More Info >	€73.28
10	Hose Assembly i See notes section for usage notes on this part 409-448-740 More Info >	€68.17
11	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	€6.08
12	Nut - Nyloc 307-206-053 More Info >	€0.37
13	Washer - Flat 308-060-013 More Info >	€0.31
14	Bolt - Hex Head - M6 x 45 - Trimax Specification 301-206-453 More Info >	€0.85
16	Coupling 408-447-580 More Info >	€22.41
17	Nipple 408-448-280 More Info >	€14.09
18	Washer - Flat 308-100-013 More Info >	€0.37
19	Hose Assembly i See notes section for usage notes on this part 409-448-750 More Info >	€58.65
20	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
22	Nut - Nyloc 307-210-053 More Info >	€0.61
24	Cable Tie - Blue 210-900-015 More Info >	Price on Request
25	Cable Tie - Green 210-900-016 More Info >	Price on Request
26	Cable tie 210-900-017 More Info >	Price on Request
27	Cable tie 210-900-018 More Info >	Price on Request
