NOTES:

Part #	Number on image	Usage Notes
401-020-801	14	Use part number 401-020-802 for gasket only, otherwise gasket is included in the roller bearing and hosing kit.

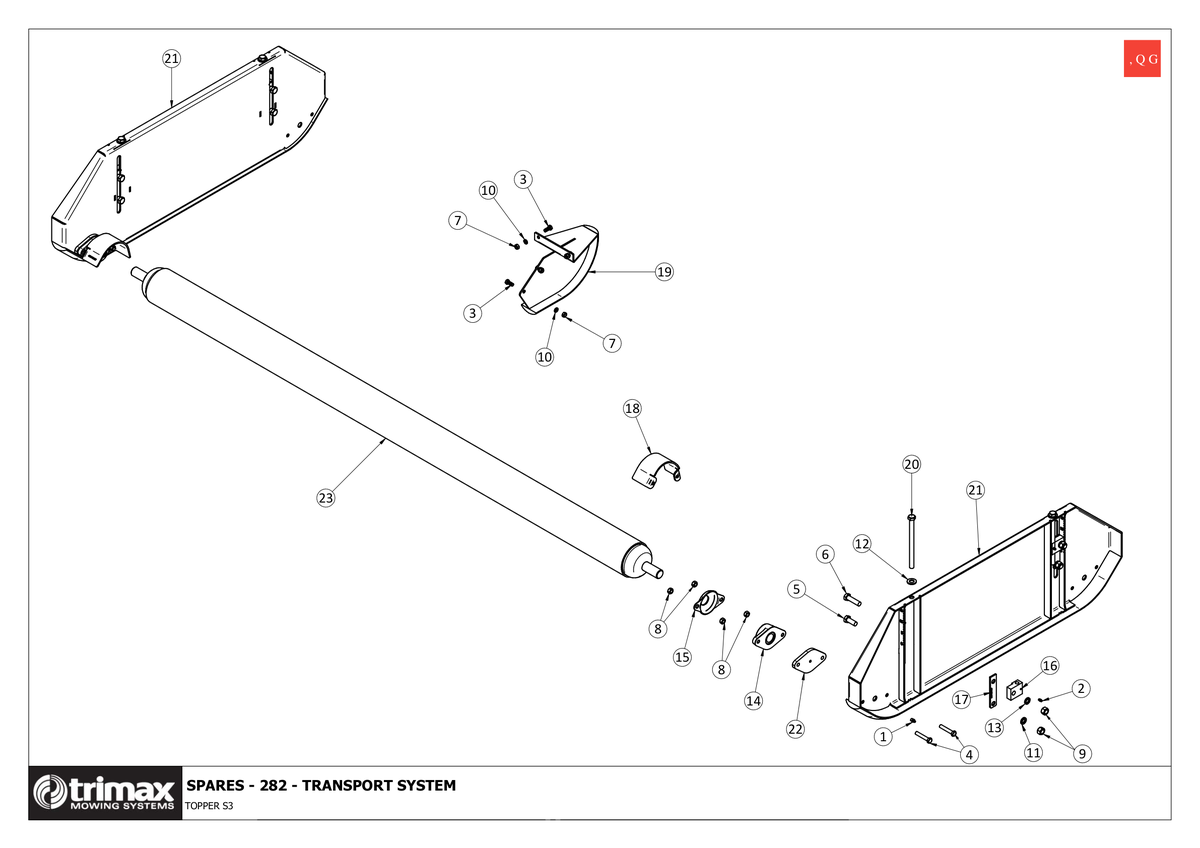

757 - Topper S3 282 - Transport System

Topper S3 282

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-550 More Info >	€3.22
2	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
3	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	€0.85
4	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	€2.74
5	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	€3.04
6	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	€3.83
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	€0.49
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
9	Nut - Plain 307-216-013 More Info >	€1.16
10	Washer - Spring 308-100-043 More Info >	€0.37
11	Washer - Spring 308-160-043 More Info >	€0.49
12	Washer - Heavy Flat 308-160-063 More Info >	€0.67
13	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
14	Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification i See notes section for usage notes on this part 401-020-801 More Info >	€68.17
15	Protector Cap - Roller Bearing 410-464-073	Price on Request
18	Folding - Roller Stub Protector 412-000-257	Price on Request
23	Roller Weldment 282 414-320-045	Price on Request
