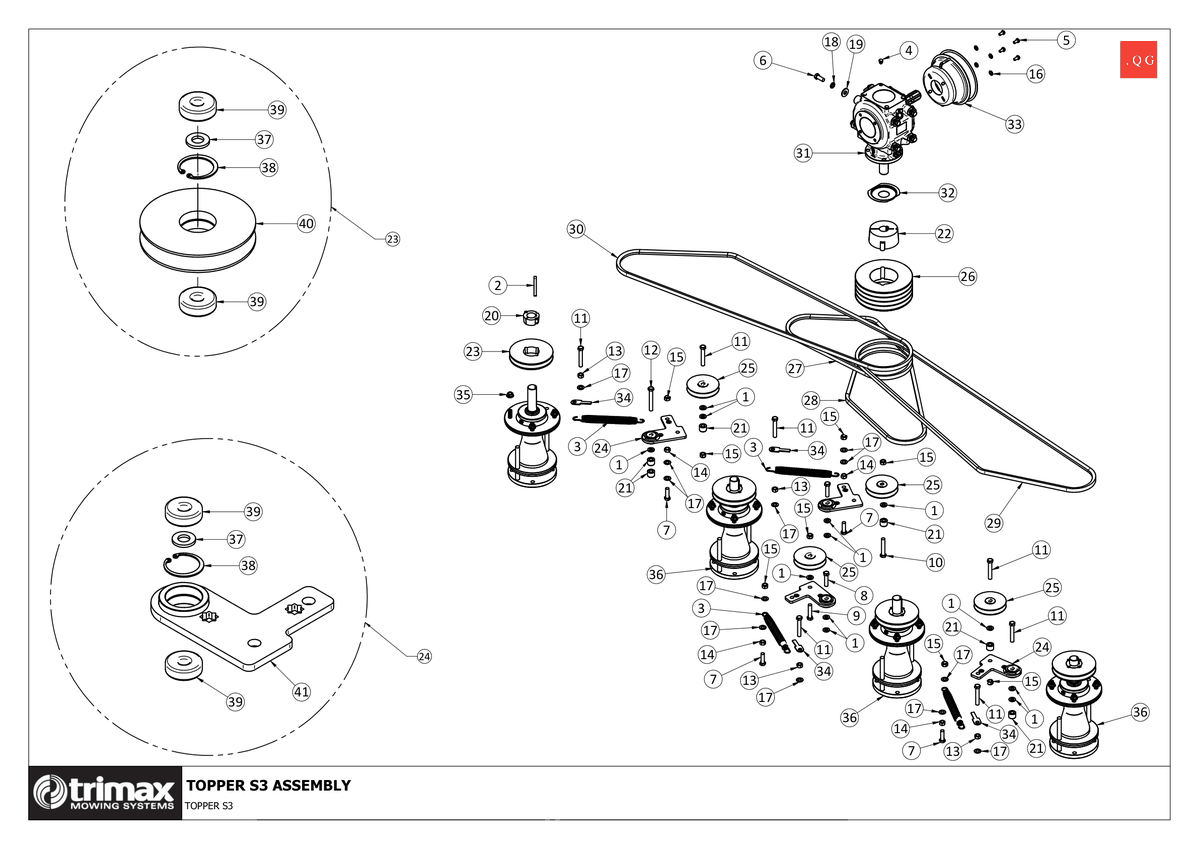

757 - Topper S3 282 - Drive System

Topper S3 282

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	€3.41
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	€14.29
4	Blanking Plug - M12 209-900-012 More Info >	€1.04
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
7	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
8	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	€2.00
9	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	€2.61
10	Bolt - Hex Head - M12 x 60 - Trimax Specification 301-212-603 More Info >	€2.67
11	Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753 More Info >	€2.92
12	Bolt - Hex Head - M12 x 90 - Trimax Specification 301-212-903 More Info >	€3.34
13	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
14	Nut - Plain 307-212-015	€0.92
15	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
16	Washer - Flat 308-080-016 More Info >	€0.37
17	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
18	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
19	Washer - Heavy Flat 308-120-063 More Info >	€0.37
20	Bush - Taper Lock 402-000-078 More Info >	€15.49
22	Bush - Taper Lock 402-060-680 More Info >	€50.33
23	Pulley - Taper Lock 403-000-083 More Info >	€58.34
25	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
26	Pulley - Taper Lock 403-361-270 More Info >	€151.76
27	Vee Belt - Trimax Specification 404-040-480 More Info >	€16.34
28	Vee Belt - Trimax Specification 404-040-530 More Info >	€18.82
29	Vee Belt - Trimax Specification 404-041-010 More Info >	€36.06
30	Vee Belt - Trimax Specification 404-041-030 More Info >	€36.06
31	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
32	Cap - Gearbox Protector Seal 410-206-100 More Info >	€46.26
33	Cone - PTO Holes Punched 410-440-402 More Info >	€23.50
35	Nut - Flange 450-000-078 More Info >	€2.06
38	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
39	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
40	Pulley - Idler 403-360-110 More Info >	€23.68
