NOTES:

Part #	Number on image	Usage Notes
401-020-801	14	Use part number 401-020-802 for gasket only, otherwise gasket is included in the roller bearing and hosing kit.

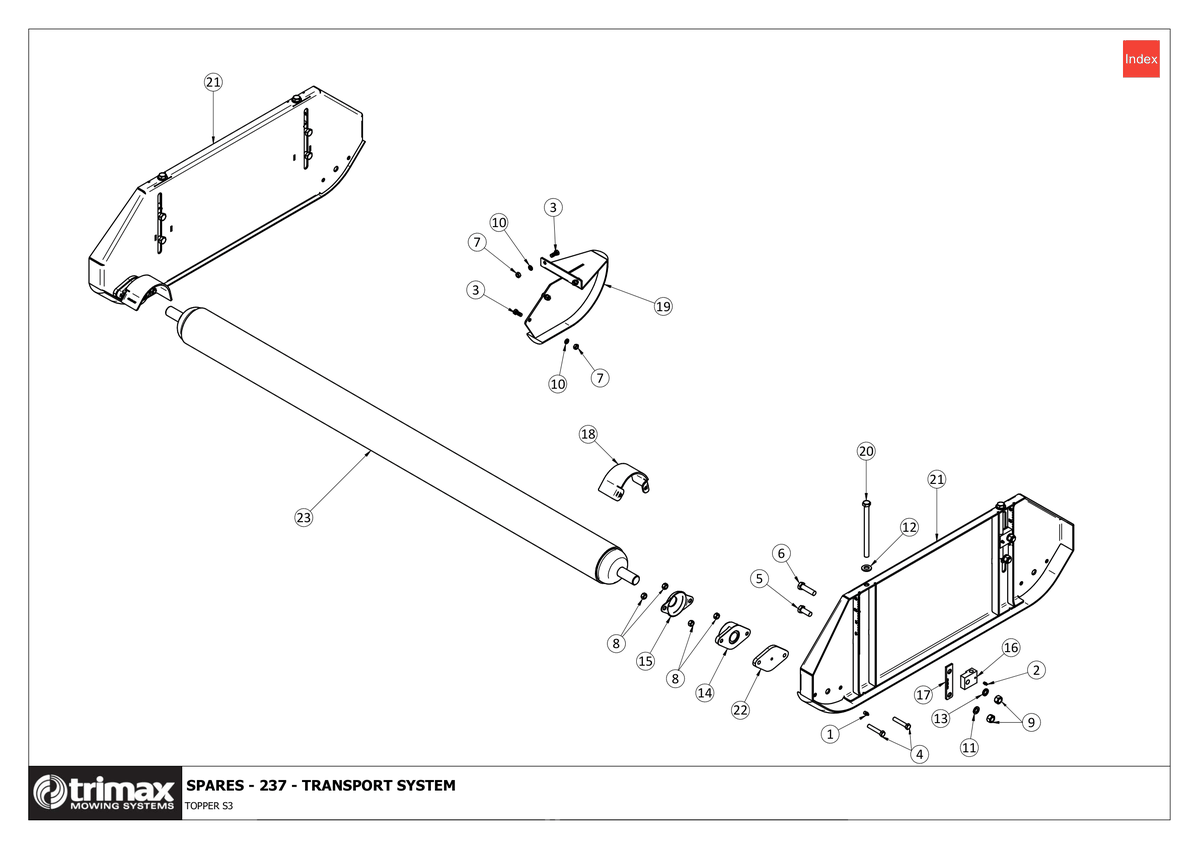

757 - Topper S3 237 - Transport System

Topper S3 237

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Straight 1/8" (Trimax Specification) 208-442-550 More Info >	€3.22
2	Grease Nipple - 1/4" Short 208-442-600 More Info >	€2.25
3	Bolt 301-210-253 More Info >	€0.85
4	Bolt 301-212-653 More Info >	€2.74
5	Bolt 301-216-403 More Info >	€3.04
6	Bolt 301-216-603 More Info >	€3.83
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	€0.49
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
9	Nut - Plain 307-216-013 More Info >	€1.16
10	Washer - Spring 308-100-043 More Info >	€0.37
11	Washer - Spring 308-160-043 More Info >	€0.49
12	Washer - Heavy Flat 308-160-063 More Info >	€0.67
13	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
14	Roller Bearing Kit - UCFL207 1-3/8" with Gasket and Grub Screw - i See notes section for usage notes on this part 401-020-801 More Info >	€68.17
15	Protector Cap - Roller Bearing 410-464-073	Price on Request
18	Folding - Roller Stub Protector 412-000-257	Price on Request
23	Roller Weldment 237 TP1 414-320-044	Price on Request
