NOTES:

Part #	Number on image	Usage Notes
202-447-980	1	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
208-442-650	2	412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
301-216-653	6	412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
307-216-013	11	412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
308-160-063	15	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
308-160-083	16	412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
404-320-122	19	Roller Scraper available as an option
412-000-255	23	412-000-648 Kit Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 1 x 412-000-255 – Height Adjuster Block
412-000-609	24	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-850-260	27	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-000-649	33	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current

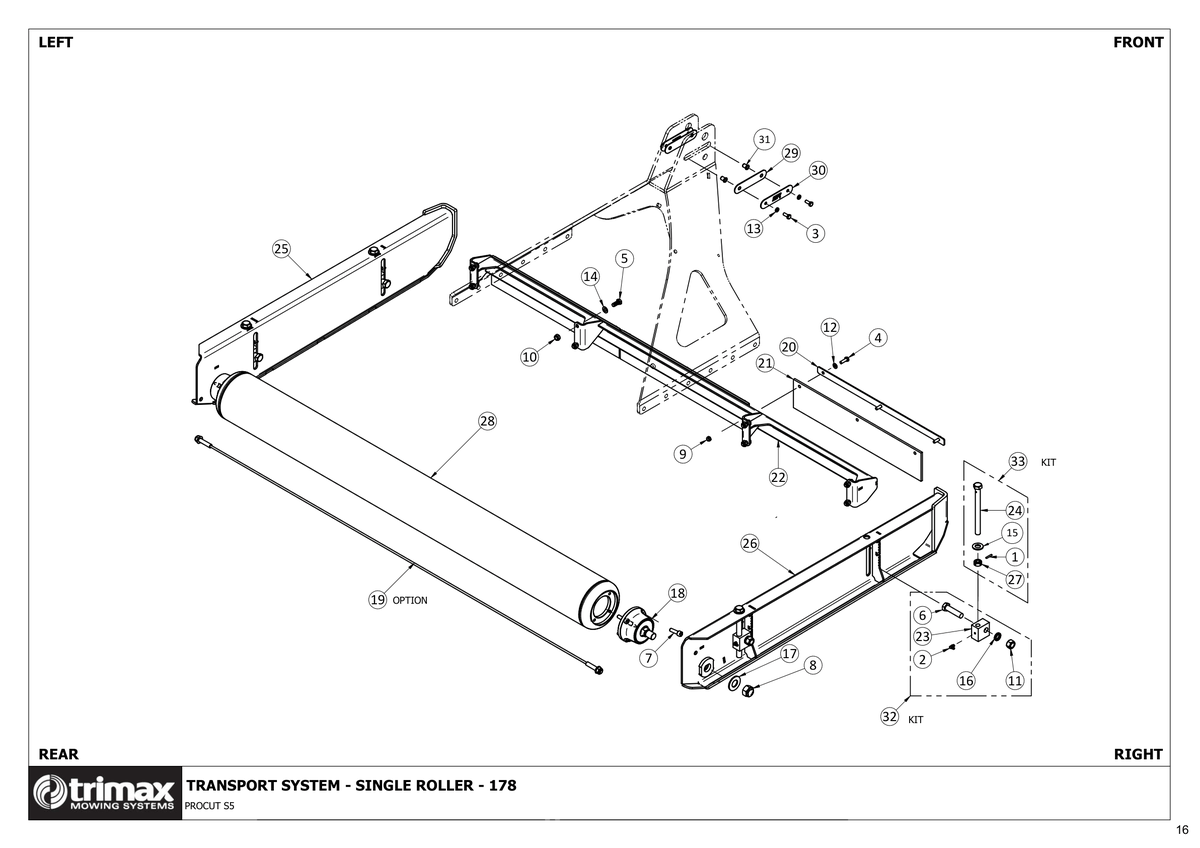

756 - Procut S5 178 - Transport System Single Rear Roller - Option

ProCut S5 178

Grouped product items
No.	Product Name	Price
1	Roll Pin i See notes section for usage notes on this part 202-447-980 More Info >	€2.14
2	Grease Nipple i See notes section for usage notes on this part 208-442-650 More Info >	€2.92
3	Bolt 301-208-203 More Info >	€0.67
4	Bolt 301-208-253 More Info >	€0.74
5	Bolt 301-210-253 More Info >	€0.85
6	Bolt i See notes section for usage notes on this part 301-216-653 More Info >	€4.19
7	Cap Screw - Socket Head M10 x 35 - Trimax Specification - 303-210-353 More Info >	€1.59
8	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	€9.11
9	Nut - Nyloc 307-208-056 More Info >	€0.61
10	Nut - Nyloc 307-210-053 More Info >	€0.61
11	Nut - Plain i See notes section for usage notes on this part 307-216-013 More Info >	€1.16
12	Washer - Flat 308-080-016 More Info >	€0.37
13	Washer - Spring 308-080-043 More Info >	€0.37
14	Washer - Flat 308-100-013 More Info >	€0.37
15	Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063 More Info >	€0.67
16	Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083 More Info >	€3.53
17	Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063 More Info >	€1.53
18	Roller Bearing Assembly - Titan 401-000-035 More Info >	€229.25
19	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	€41.47
20	Front Flap - Retaining Strip - Procut S5 410-000-472 More Info >	€54.83
21	Front Flap - PVK - Procut S5 410-000-474 More Info >	€10.63
22	Bumper Weldment - 178 - Procut S5 410-000-476 More Info >	€289.10
23	Height Adjuster Block i See notes section for usage notes on this part 412-000-255 More Info >	€48.45
24	Set Screw i See notes section for usage notes on this part 412-000-609 More Info >	€5.52
25	SR Side Channel Weldment - LH - Procut S5 412-000-642 More Info >	€582.42
26	SR Side Channel Weldment - RH - Procut S5 412-000-643 More Info >	€582.42
27	Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260 More Info >	€16.61
28	Roller Weldment 414-000-157 More Info >	€586.39
29	Slot Cover - Top Link SR Outer 419-000-053 More Info >	€9.10
30	Slot Cover - Top Link SR Inner 419-000-054 More Info >	€16.60
31	Nut - Rivnut M8 ZP 307-208-423	Price on Request
33	Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649 More Info >	€24.17
