NOTES:

Part #	Number on image	Usage Notes
502-000-228	27	For body weldment - Procut S5 178 - galvanized, use p/n: 502-000-232

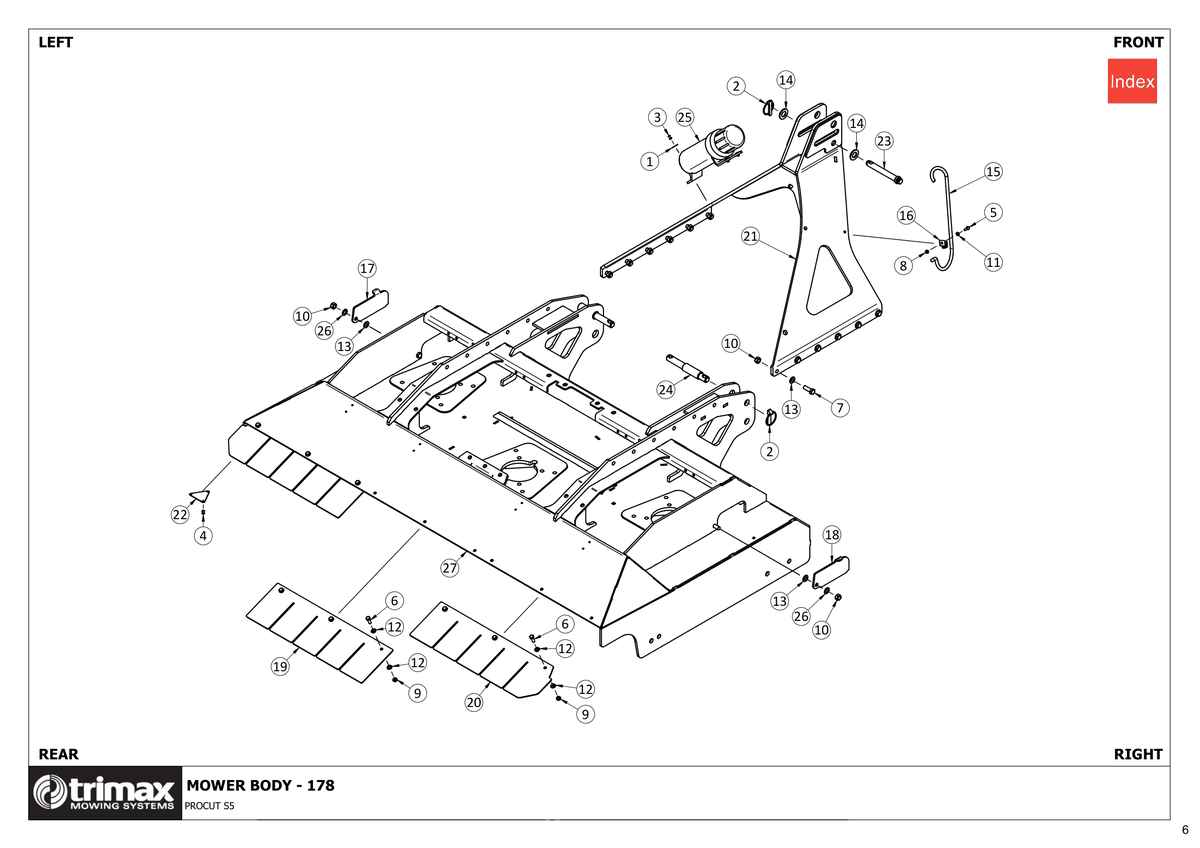

756 - Procut S5 178 - Mower Body

ProCut S5 178

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	€0.37
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
3	Blind Rivet 213-000-004 More Info >	€0.54
4	Blind Rivet 213-443-250 More Info >	€0.33
5	Bolt 301-206-203 More Info >	€0.49
6	Bolt 301-208-253 More Info >	€0.74
7	Bolt 301-212-353 More Info >	€1.59
8	Nut - Nyloc 307-206-053 More Info >	€0.37
9	Nut - Nyloc 307-208-056 More Info >	€0.61
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
11	Washer - Flat 308-060-013 More Info >	€0.31
12	Washer - Flat 308-080-016 More Info >	€0.37
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
14	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
15	PTO Hanger 406-000-059 More Info >	€41.28
16	Retainer Clip - PTO Hanger 406-000-060 More Info >	€9.11
17	Wash Panel - RH 410-000-134 More Info >	€22.04
18	Wash Panel - LH 410-000-135 More Info >	€22.04
19	Rear Flap - Inner - Procut S5 410-000-461 More Info >	€63.24
20	Rear Flap - Outer - Procut S5 410-000-463 More Info >	€29.17
21	Headstock - Weldment - Procut S5 413-000-120 More Info >	€459.25
22	Cap Plate 417-001-024 More Info >	€2.68
23	Pin - Muck Protector 419-000-014 More Info >	€11.47
24	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
25	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	€36.74
26	Washer - Crinkle 450-000-116 More Info >	€1.28
27	Body Weldment - Procut S5 178 - Powdercoated - Procut S5 i See notes section for usage notes on this part 502-000-228 More Info >	Price on Request
28	Decal Sheet - Procut S5 - 178 424-000-316 More Info >	€53.57
29	Decal Sheet - Procut S5 - Common 424-000-320 More Info >	€53.57
