NOTES:

Part #	Number on image	Usage Notes
403-360-111	25	Quantity varies per Idler Arm
405-200-720	29	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-015	30	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-164		Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
403-000-167	38	403-000-167 - Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer

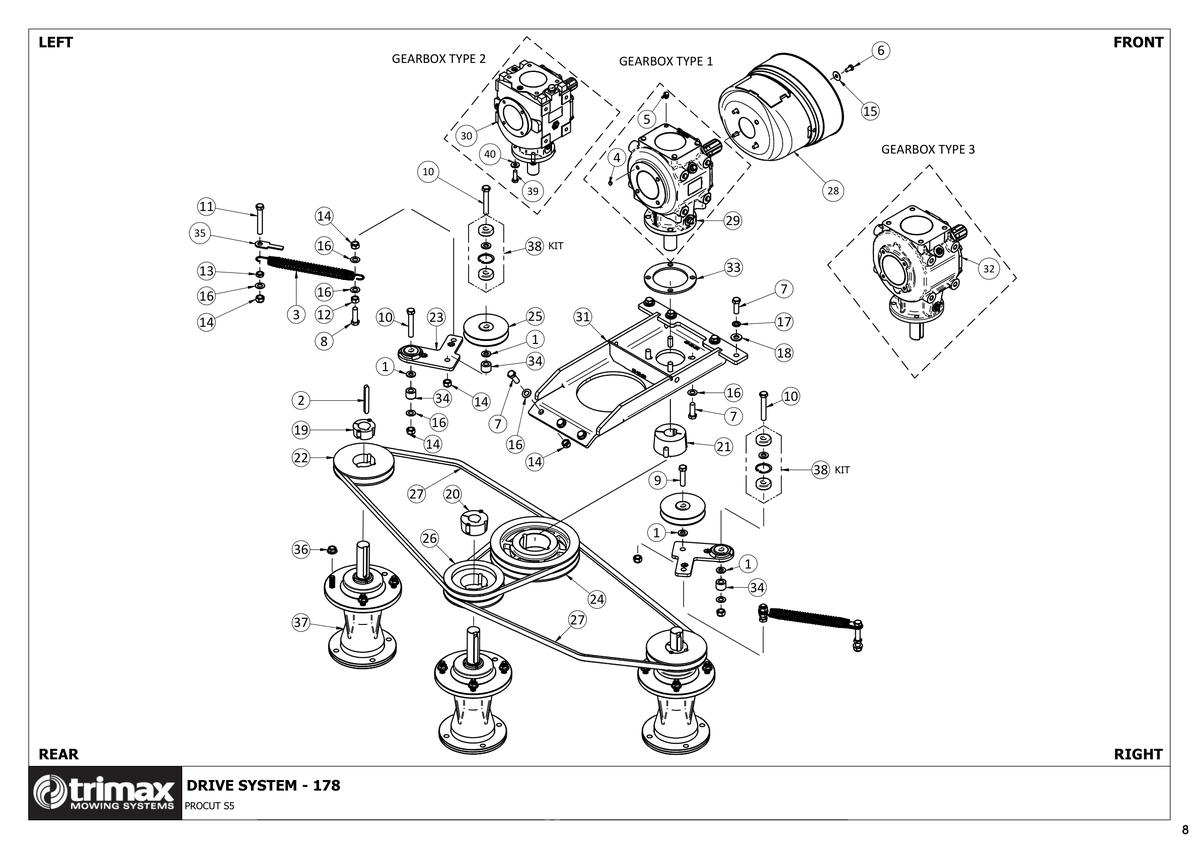

756 - Procut S5 178 - Drive System

ProCut S5 178

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	€3.41
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	€14.29
4	Blanking Plug - M8 209-000-029 More Info >	€0.58
5	Blanking Plug - M12 209-900-012 More Info >	€1.04
6	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	€1.77
9	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	€2.00
10	Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753 More Info >	€2.92
11	Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803 More Info >	€3.16
12	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
13	Nut - Half 307-212-023 More Info >	€1.16
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
15	Washer - Fender - M8 308-080-073 More Info >	€0.37
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
17	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
18	Washer - Heavy Flat 308-120-063 More Info >	€0.37
19	Bush - Taper Lock 402-000-078 More Info >	€15.49
20	Bush - Taper Lock 402-000-090 More Info >	€19.80
21	Bush - Taper Lock 402-060-820 More Info >	€35.71
22	Pulley - Taper Lock 403-000-083 More Info >	€58.34
24	Pulley - Taper Lock Ø224 SPB x 2 403-000-130 More Info >	€104.02
25	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	€52.33
26	Pulley - Taper Lock 403-361-140 More Info >	€61.49
27	Vee Belt - Trimax Specification - 404-040-750 More Info >	€23.01
28	PTO Cone - Wide angle - 52mm PCD 410-000-608 More Info >	€42.01
29	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	€740.95
30	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	€672.25
31	Gearbox Mount Weldment 417-001-297 More Info >	€197.17
	Gearbox - 540rpm - Trimax Specification i See notes section for usage notes on this part 405-000-164 More Info >	Price on Request
33	Gearbox Spacer Disc 417-001-300 More Info >	€47.29
36	Nut - Flange 450-000-078 More Info >	€2.06
37	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	€544.51
38	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	€23.71
39	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
40	Washer - Heavy Flat 308-100-063 More Info >	€0.37
