NOTES:

Part #	Number on image	Usage Notes
503-000-024	1	For rotor fitted with TACA coated flails use p/n 503-000-031. Rotors with TACA coated flails are fitted as standard to all US machines. Use part number 411-000-029 for TACA coated flail option
306-216-705	11	Flail Bolt and nut combination supplied under part number 306-216-705, use part number 307-216-053 for nut only

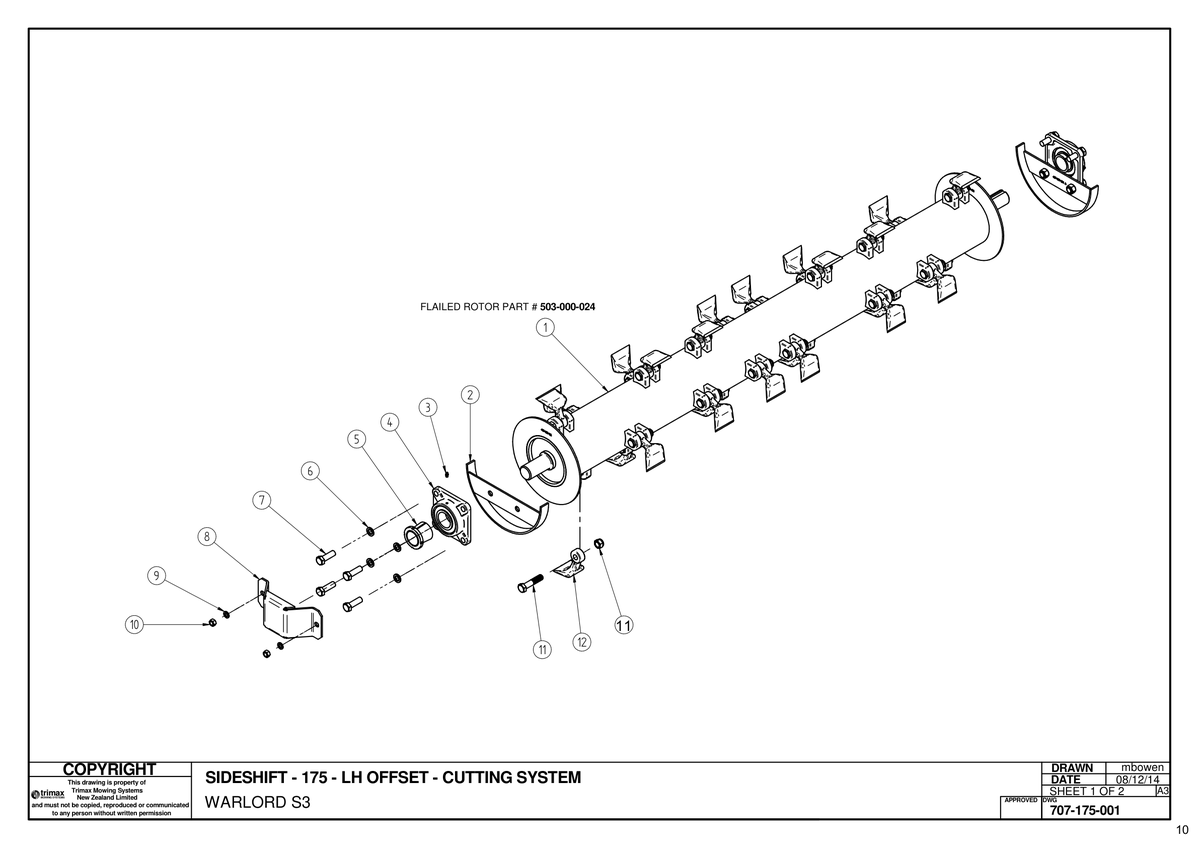

753 - Warlord S3 LH 175 - Cutting System

Warlord S3 LH 175

Grouped product items
No.	Product Name	Price
1	Rotor Assembly 175 LH i See notes section for usage notes on this part 503-000-024 More Info >	Price on Request
2	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	€41.89
3	Grease Nipple 208-442-600 More Info >	€2.25
4	Bearing Assembly 401-000-002 More Info >	€80.86
5	Sleeve - Taper 401-021-230 More Info >	€23.99
6	Washer 308-160-043 More Info >	€0.49
7	Bolt 301-216-503 More Info >	€3.22
8	Bearing Guard 410-460-302 More Info >	€86.51
9	Washer - Spring 308-120-043 More Info >	€0.37
10	Nut - Plain 307-212-013 More Info >	€0.92
11	Bolt - c/w Nyloc Nut i See notes section for usage notes on this part 306-216-705 More Info >	€9.42
12	Flail - Forged 411-480-643 More Info >	€16.51
