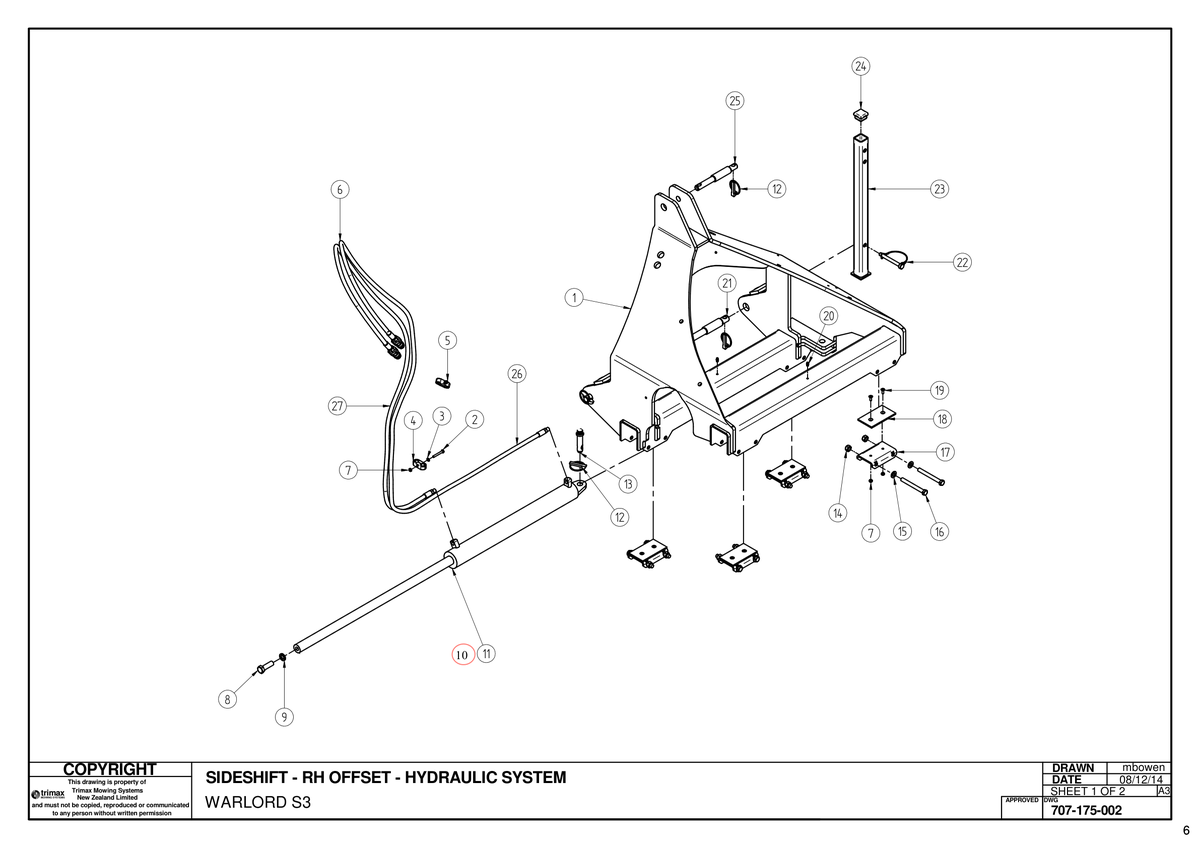

753 - Warlord S3 235 - Hydraulic System - RH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
2	Bolt 301-206-453 More Info >	€0.85
3	Washer - Flat 308-060-013 More Info >	€0.31
4	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	€6.08
5	Bolt 301-206-403 More Info >	€0.67
7	Nut - Nyloc 307-206-053 More Info >	€0.37
8	Bolt 301-216-503 More Info >	€3.22
9	Washer - Spring 308-160-043 More Info >	€0.49
10	Seal Kit - Side Shift 408-000-062 More Info >	€91.06
12	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
13	Pin - Top Link 419-000-023 More Info >	€8.93
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
16	Bolt 301-212-113 More Info >	Price on Request
17	Slide Plate - Side Shift 413-000-086 More Info >	€29.99
18	Slide Pad - Side Shift 413-000-087 More Info >	€28.65
19	Countersunk Screw 302-206-165 More Info >	€0.67
20	Grease Nipple - 1/4" Short 208-442-600 More Info >	€2.25
21	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
22	Pin 406-346-410 More Info >	€7.23
23	Stand - Front 413-000-073 More Info >	€72.12
24	Cap - Tube Insert Square 209-480-661 More Info >	€5.36
25	Pin - Linkage - Upper Dual Cat. 419-300-800 More Info >	€21.80
26	Hydraulic Hose 409-000-067 More Info >	€69.69
27	Hydraulic Hose 409-000-068 More Info >	€72.12
