NOTES:

Part #	Number on image	Usage Notes
401-022-490	10	Lower Bearing Notes: Early gearboxes use 401-022-500 (Gearbox 31175300). Later gearboxes use 401-022-490 (Gearbox 9.311.330.00). 401-022-490 can be retro-fitted into early gearboxes.

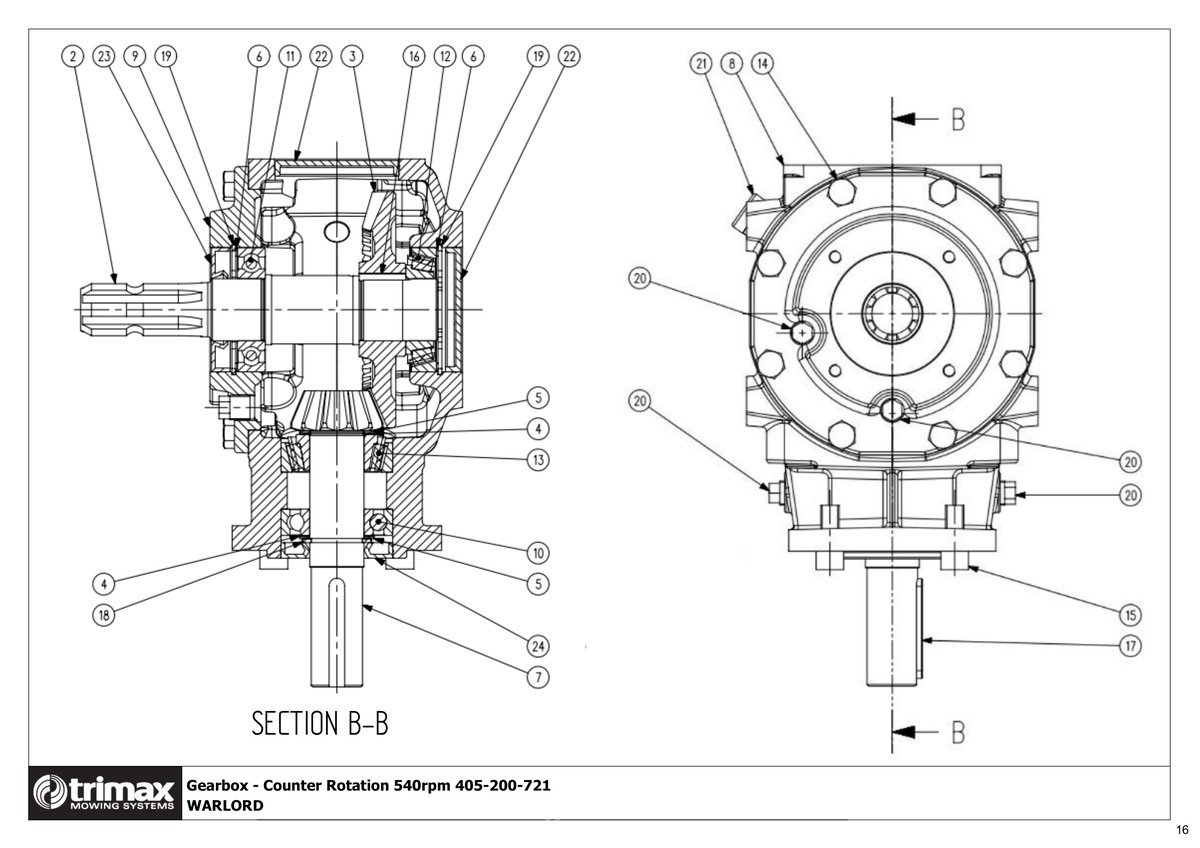

753 - Warlord S3 235 - Counter Rotation Gearbox LH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
2	Input Shaft - Gearbox 405-203-252 More Info >	€67.64
3	Gearbox - Crownwheel Gear 405-205-220 More Info >	Price on Request
4	Gearbox - Shim 405-206-220 More Info >	€3.92
5	Gearbox - Shim Ø35.3xØ47.8 405-206-221 More Info >	€6.05
6	Gearbox - Shim Ø79.7x0.5 405-206-140 More Info >	€5.71
7	Oil Seal - 35x72x10 422-380-300 More Info >	€11.26
8	Housing 405-207-153 More Info >	Price on Request
10	Bearing i See notes section for usage notes on this part 401-022-490 More Info >	€46.02
11	Bearing 401-022-400 More Info >	€48.81
12	Bearing 401-022-510 More Info >	€60.95
13	Bearing 401-022-520 More Info >	€57.07
14	Bolt 301-210-253 More Info >	€0.85
15	Bolt 301-212-303 More Info >	€1.46
17	Key - Gearbox 405-207-154 More Info >	€9.17
19	Circlip/Snap Ring 204-446-193 More Info >	€5.18
20	Oil Plug - Hex Head 3/8" (Trimax Specification) 405-207-211 More Info >	€5.10
21	Gearbox - Breather 405-207-207 More Info >	€20.47
22	Cap - Gearbox Ø80x10 405-207-151 More Info >	€25.87
23	Oil Seal 422-381-000 More Info >	€13.34
