NOTES:

Part #	Number on image	Usage Notes
412-000-128	11	Heavy duty trailing arm with wear skid available as option P/N 412-000-260
412-000-129	12	Heavy duty trailing arm with wear skid available as option P/N 412-000-261

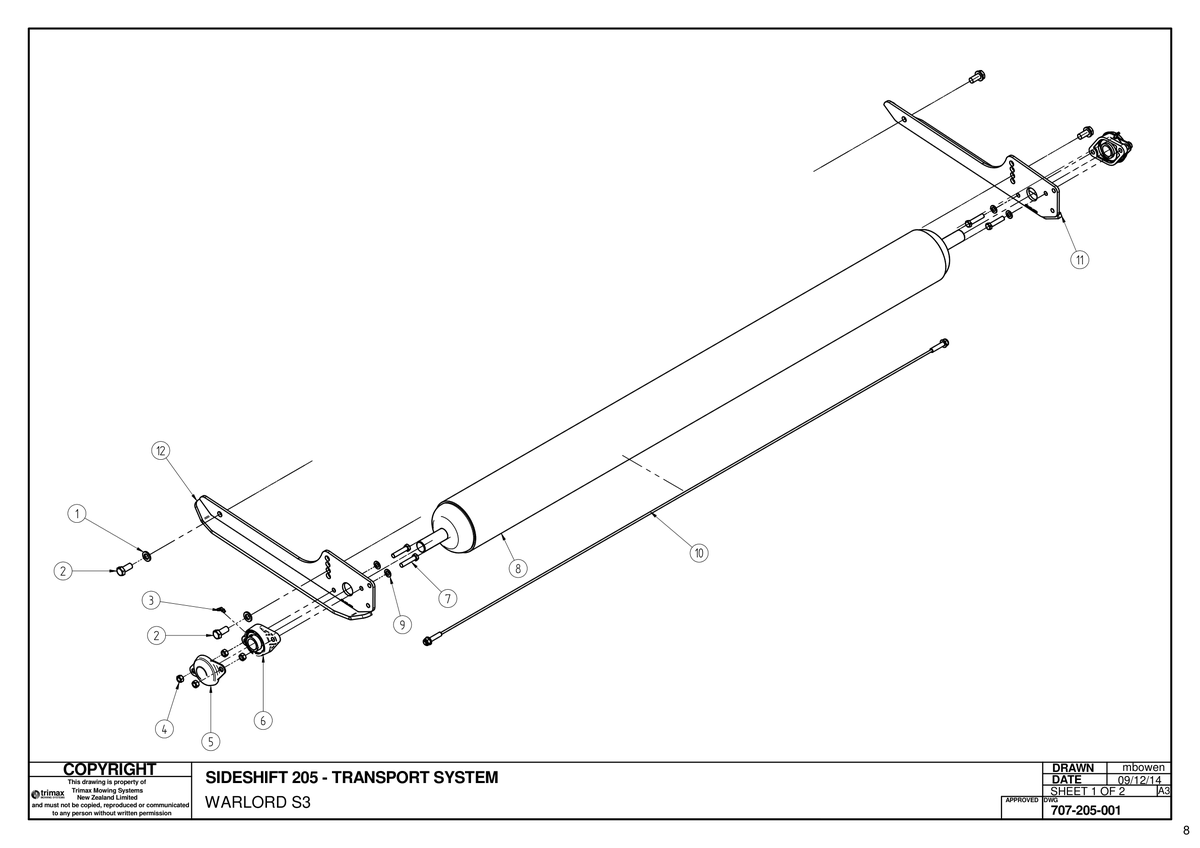

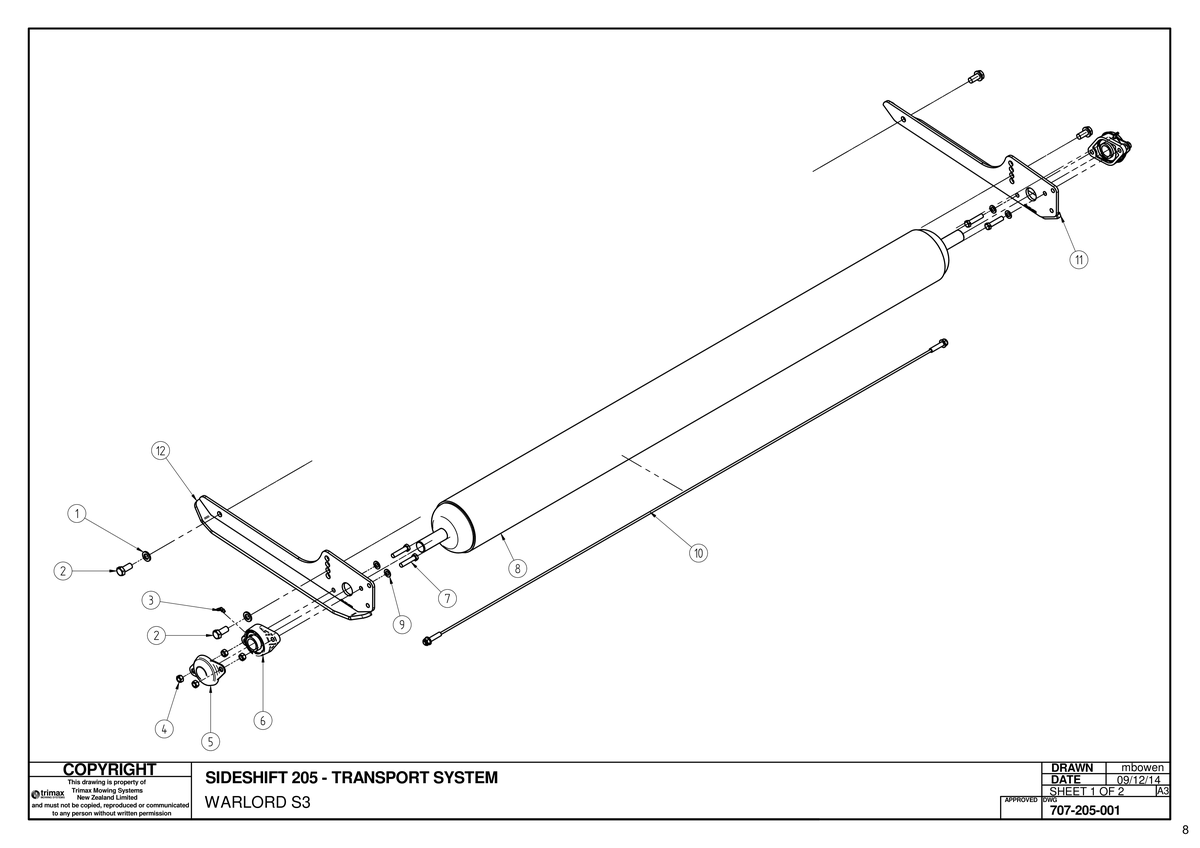

753 - Warlord S3 205 - Transport System

Warlord S3 205

Grouped product items
No.	Product Name	Price
1	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
2	Bolt 301-216-353 More Info >	€2.98
3	Grease Nipple 208-442-620 More Info >	€2.39
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
5	Cap 410-464-072 More Info >	€21.98
6	Roller Bearing Assembly - 1-3/8" x UCFL207 - 401-020-701 More Info >	€58.46
7	Bolt 301-212-553 More Info >	€2.61
8	Roller Weldment 205 414-480-470 More Info >	€772.20
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
10	Roller Scraper 404-480-473 More Info >	€48.99
11	Trailing Arm Weldment - RH i See notes section for usage notes on this part 412-000-128 More Info >	€143.81
12	Trailing Arm Weldment - LH i See notes section for usage notes on this part 412-000-129 More Info >	€143.81
