NOTES:

Part #	Number on image	Usage Notes
412-000-258	13	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-279	14	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-286	15	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-287	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

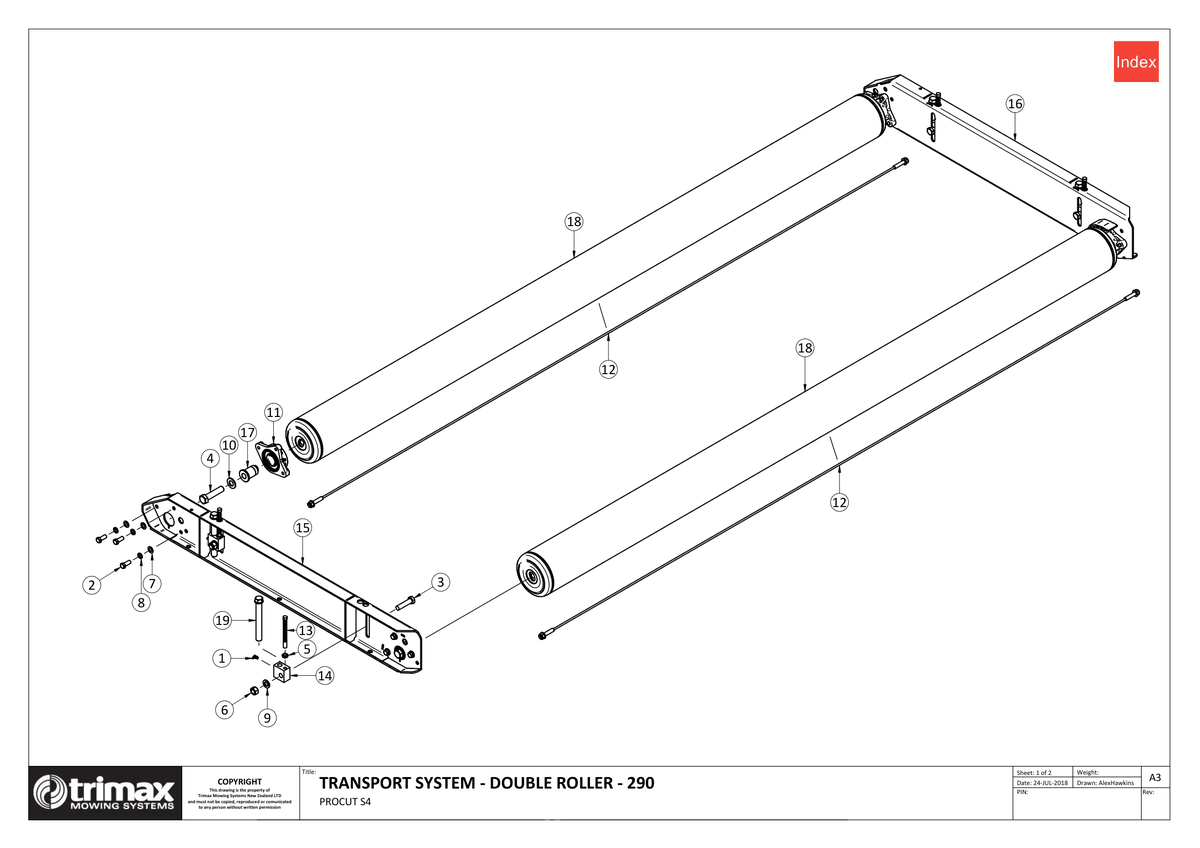

736 - Procut S4 290 - Transport System

ProCut S4 290

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	€8.56
5	Nut - Half 307-212-023 More Info >	€1.16
6	Nut - Plain 307-216-013 More Info >	€1.16
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
11	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	€70.24
12	Scraper - Roller 290 404-320-129 More Info >	€67.41
13	Height Indicator - Metric 412-000-256 More Info >	€32.67
13	Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258 More Info >	€35.70
14	Height Adjuster Block i See notes section for usage notes on this part 412-000-279 More Info >	€48.45
15	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-286 More Info >	€382.06
16	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-287 More Info >	€382.06
17	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	€32.78
18	Roller Weldment - Loctek 290 414-000-095 More Info >	€754.30
19	Height Adjuster Rod - RapidSet 450-000-126 More Info >	€41.66
