NOTES:

Part #	Number on image	Usage Notes
108-071-513	1	Quantity varies, use as required
405-000-015	32	Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
405-200-720	33	Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount

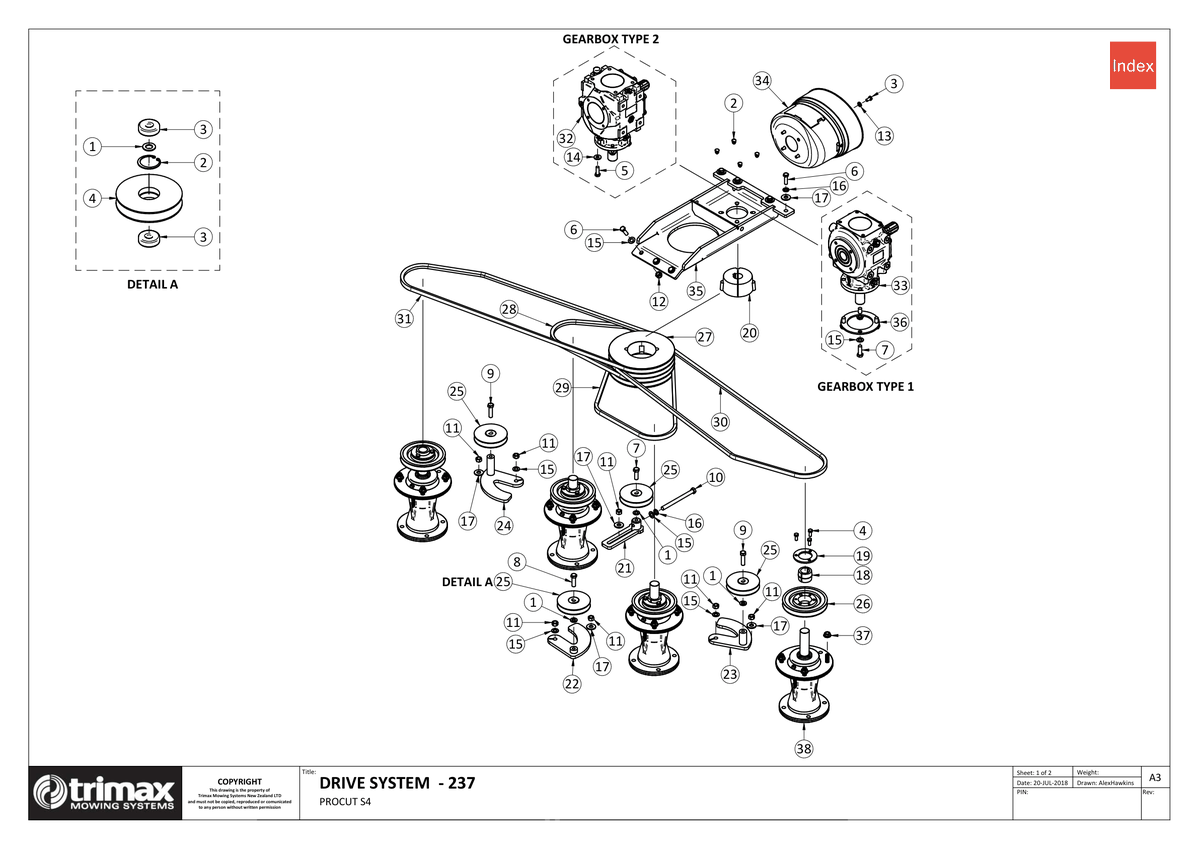

736 - Procut S4 237 - Drive System

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Washer - Hardened i See notes section for usage notes on this part 108-071-513 More Info >	€1.95
2	Blanking Plug - M12 209-900-012 More Info >	€1.04
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
4	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
6	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	€1.04
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
9	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
10	Set Screw 313-612-153 More Info >	€2.62
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
13	Washer - Flat 308-080-016 More Info >	€0.37
14	Washer - Heavy Flat 308-100-063 More Info >	€0.37
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
16	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
17	Washer - Heavy Flat 308-120-063 More Info >	€0.37
18	Bush 402-060-320 More Info >	€23.21
19	Retainer Ring 402-060-450 More Info >	€7.66
20	Bush - Taper Lock 402-060-680 More Info >	€50.33
21	Idler Weldment - Slotted 403-000-105 More Info >	€75.28
22	Idler Tower Incl Base 403-330-424 More Info >	€61.90
23	Idler Tower Incl Base 403-330-432 More Info >	€45.96
24	Idler Tower Incl Base 403-330-442 More Info >	€56.95
25	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
26	Pulley 403-360-300 More Info >	€40.47
27	Pulley - Taper Lock 403-361-290 More Info >	€183.99
28	Vee Belt - Trimax Specification 404-040-460 More Info >	€17.85
29	Vee Belt - Trimax Specification 404-040-520 More Info >	€18.53
30	Vee Belt - Trimax Specification 404-040-900 More Info >	€28.96
31	Vee Belt - Trimax Specification 404-040-920 More Info >	€31.45
32	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	€672.25
33	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	€740.95
34	PTO Cone - Wide angle 410-000-257 More Info >	€42.01
35	Gearbox Mount Weldment 417-001-297 More Info >	€197.17
36	Gearbox Spacer Disc 417-001-300 More Info >	€47.29
37	Nut - Flange 450-000-078 More Info >	€2.06
38	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
1	Washer - Flat 108-071-413 More Info >	€1.40
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
4	Pulley - Idler 403-360-110 More Info >	€23.68
