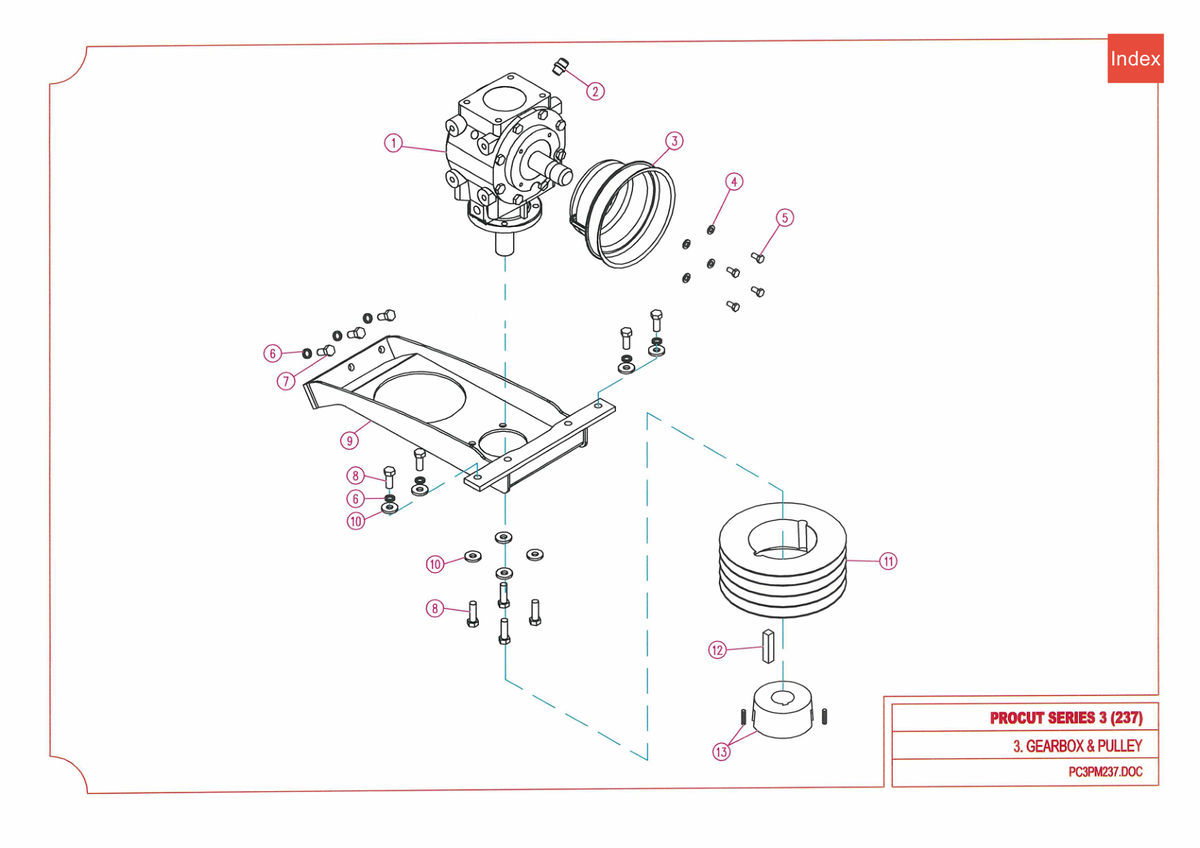

736-237 - Procut S3 - Gearbox & Pulleys

ProCut S3 237

Grouped product items
No. Image Product Name Price Quantity
1 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
€740.95
2 Gearbox - Breather [405-207-207] Gearbox - Breather 405-207-207
€20.47
3 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
€23.50
4 Washer - Flat [308-080-013] Washer - Flat 308-080-013
€0.37
5 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
€0.61
6 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
€0.37
7 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
€1.34
8 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
€1.59
9 Gearbox Mount Weldment - Deck Assembly [417-841-500] Gearbox Mount Weldment - Deck Assembly 417-841-500
€260.12
10 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
€0.37
11 Pulley - Taper Lock [403-361-290] Pulley - Taper Lock 403-361-290
€183.99
12 Key [405-425-940] Key 405-425-940
€9.13
13 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
€50.33
