NOTES:

Part #	Number on image	Usage Notes
403-360-110	11	P/N 403-360-111 Pulley assembly c/w bearings

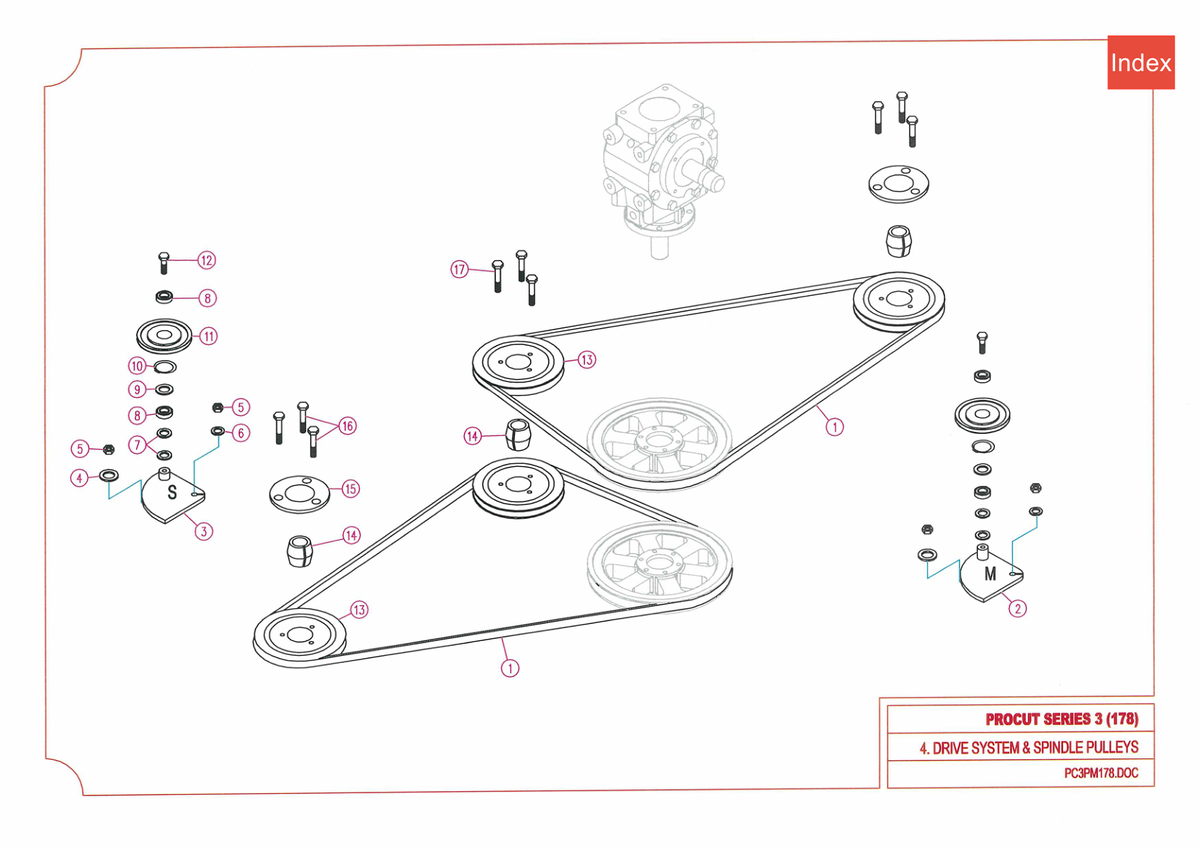

736-178 - Procut S3 - Drive System & Spindle Pulleys

ProCut S3 178

Grouped product items
No.	Product Name	Price
1	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
2	Idler Tower Incl Base 403-330-432 More Info >	€45.96
3	Idler Tower Incl Base 403-330-423 More Info >	€64.28
4	Washer - Heavy Flat 308-120-063 More Info >	€0.37
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
6	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
8	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
9	Washer - Flat 108-071-413 More Info >	€1.40
10	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
11	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	€23.68
12	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
13	Pulley 403-360-300 More Info >	€40.47
14	Bush 402-060-320 More Info >	€23.21
15	Retainer Ring 402-060-450 More Info >	€7.66
16	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
17	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	€1.16
