NOTES:

Part #	Number on image	Usage Notes
401-021-900	12	Idler pulley assembly including the bearings available as part number 403-360-111.
402-000-078	13	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-190-101-1056452; GB: 730-190-145B-3002476. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-083	19	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-190-101-1056452; GB: 730-190-145B-3002476. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-064	20	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
403-000-164	20	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
404-040-520	23	Vee belts used prior to above serial numbers.
404-040-530	23	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
404-040-860	25	Vee belts used prior to above serial numbers.
404-040-861	25	A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
405-000-015	26	For Gearbox assembly breakdown view for parts refer to page 22.
504-000-169	32	For Spindle assembly breakdown view for parts refer to page 18.

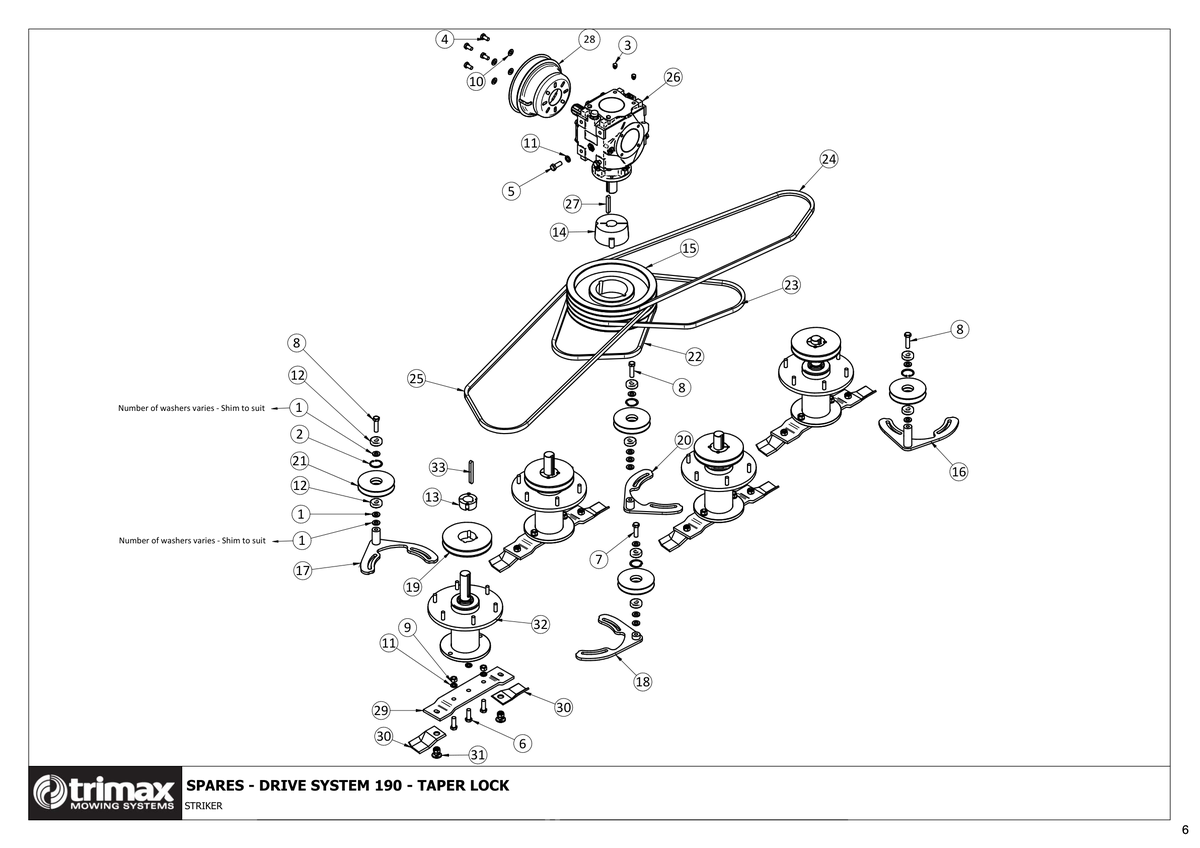

730 Striker S1 190 - Drive System - Taper Lock

Striker S1 190

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Blanking Plug - M12 209-900-012 More Info >	€1.04
4	Bolt 301-210-203 More Info >	€0.67
5	Bolt 301-212-303 More Info >	€1.46
6	Bolt 301-212-353 More Info >	€1.59
7	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	€1.77
8	Bolt 301-212-453 More Info >	€1.89
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
10	Washer - Flat 308-100-013 More Info >	€0.37
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
12	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - i See notes section for usage notes on this part 401-021-900 More Info >	€15.00
13	Bush - Taper Lock i See notes section for usage notes on this part 402-000-078 More Info >	€15.49
14	Bush - Taper Lock 402-060-680 More Info >	€50.33
15	Pulley 403-000-059 More Info >	€232.10
16	Idler Weldment - Long 403-000-062 More Info >	€71.42
17	Idler Adjuster M 403-000-063 More Info >	€69.04
19	Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083 More Info >	€58.34
20	Idler Adjuster S i See notes section for usage notes on this part 403-000-064 More Info >	€66.66
20	Used on Striker 190 (ECN4576) i See notes section for usage notes on this part 403-000-164 More Info >	€67.10
21	Pulley - Idler 403-360-110 More Info >	€23.68
22	Vee Belt 404-040-480 More Info >	€16.34
23	Vee Belt i See notes section for usage notes on this part 404-040-520 More Info >	€18.53
23	Vee Belt i See notes section for usage notes on this part 404-040-530 More Info >	€18.82
24	Vee Belt 404-040-830 More Info >	€26.35
25	Vee Belt i See notes section for usage notes on this part 404-040-860 More Info >	€27.87
25	Vee Belt - B86 i See notes section for usage notes on this part 404-040-861 More Info >	€28.42
26	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	€672.25
27	Key - Gearbox 405-207-154 More Info >	€9.17
28	Cone - PTO Holes Punched 410-440-402 More Info >	€23.50
29	Blade Beam 150/190 411-000-022 More Info >	€45.79
30	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	€10.45
31	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	€7.16
32	Spindle Assembly - With Keyway - Striker i See notes section for usage notes on this part 504-000-169 More Info >	€765.95
