NOTES:

Part #	Number on image	Usage Notes
402-000-078	14	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
402-000-090	15	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
402-060-820	16	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-083	19	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-155	20	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-360-110	21	Idler pulley assembly including the bearings available as part number 403-360-111.
403-361-140	22	Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
405-000-015	25	For Gearbox assembly breakdown view for parts refer to page 21.
504-000-169	31	For spindle assembly breakdown view for parts refer to page 17.

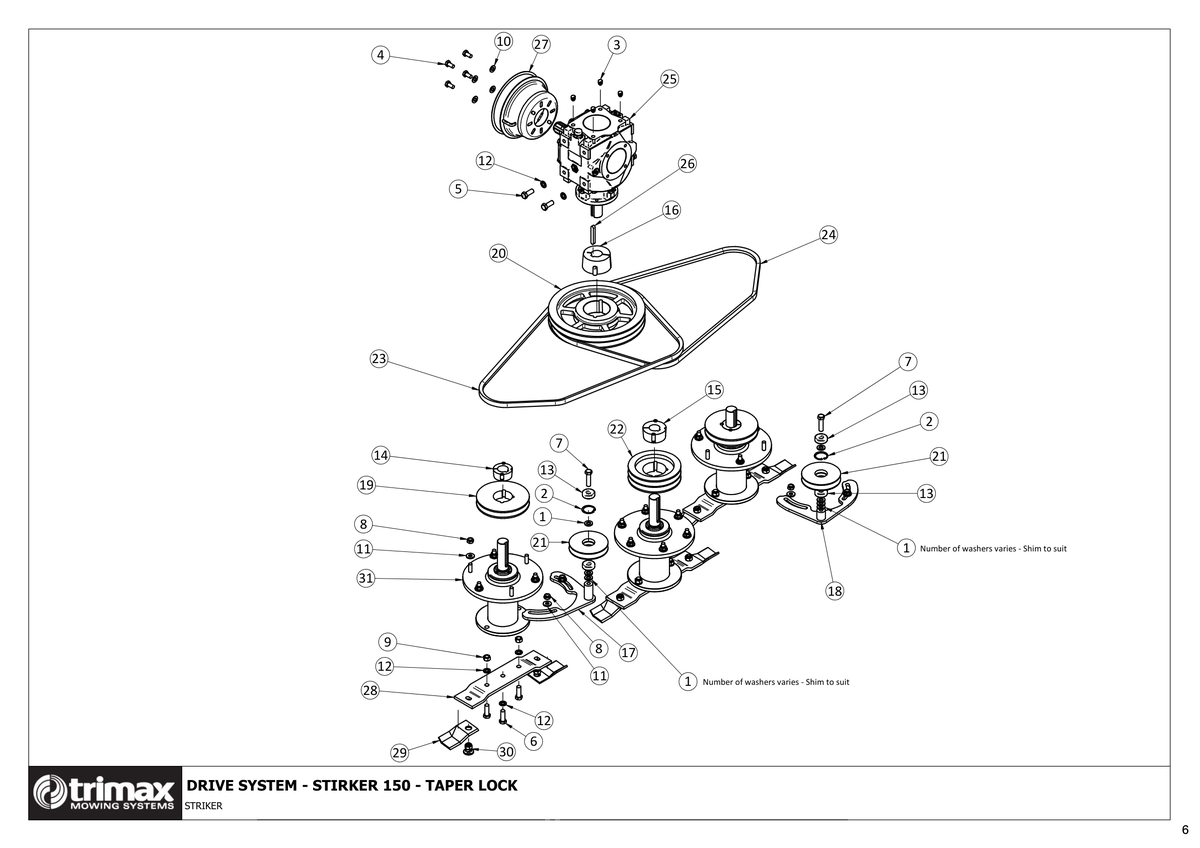

730 - Striker S1 150 - Drive System - Taper Lock

Striker S1 150

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Blanking Plug - M12 209-900-012 More Info >	€1.04
4	Bolt 301-210-203 More Info >	€0.67
5	Bolt 301-212-303 More Info >	€1.46
6	Bolt 301-212-353 More Info >	€1.59
7	Bolt 301-212-453 More Info >	€1.89
8	Nut - Nyloc 307-210-053 More Info >	€0.61
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
10	Washer - Flat 308-100-013 More Info >	€0.37
11	Washer - Heavy Flat 308-100-063 More Info >	€0.37
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
13	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	€15.00
14	Bush - Taper Lock i See notes section for usage notes on this part 402-000-078 More Info >	€15.49
15	Bush - Taper Lock i See notes section for usage notes on this part 402-000-090 More Info >	€19.80
16	Bush - Taper Lock i See notes section for usage notes on this part 402-060-820 More Info >	€35.71
17	Idler Adjuster M 403-000-063 More Info >	€69.04
18	Idler Adjuster S 403-000-064 More Info >	€66.66
19	Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083 More Info >	€58.34
20	Pulley - Taperlock 280mm x2SPB i See notes section for usage notes on this part 403-000-155 More Info >	€117.82
21	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	€23.68
22	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140 More Info >	€61.49
24	Vee Belt 404-040-700 More Info >	€22.83
25	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	€672.25
26	Key - Gearbox 405-207-154 More Info >	€9.17
27	Cone - PTO Holes Punched 410-440-402 More Info >	€23.50
28	Blade Beam 150/190 411-000-022 More Info >	€45.79
29	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	€10.45
30	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	€7.16
31	Spindle Assembly - With Keyway - Striker i See notes section for usage notes on this part 504-000-169 More Info >	€765.95
